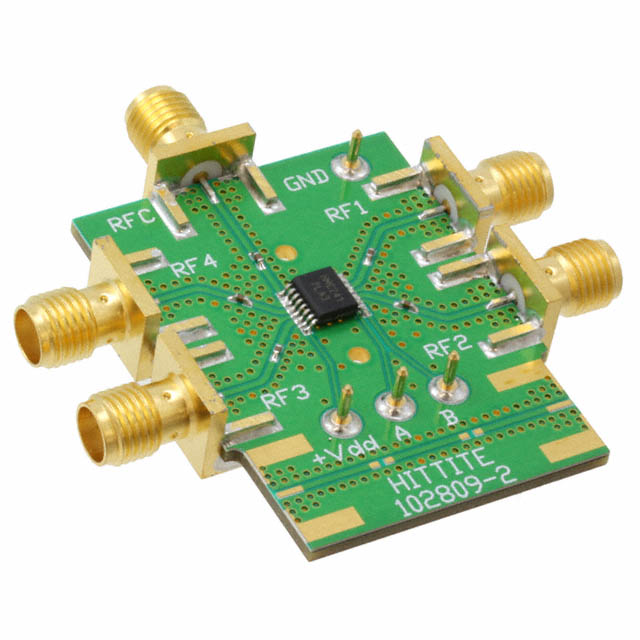

GaAs, Nonreflective, SP4T Switch 100 MHz to 4 GHz
Key Features
• Broadband frequency range: 100 MHz to 4 GHz
• Nonreflective 50 Ω design
• Low insertion loss: 0.7 dB at 2 GHz
• High isolation: 43 dB at 2 GHz
• High input linearity at 250 MHz to 4 GHz1 dB compression (P1dB): 29 dBm typicalThird order intercept (IP3): 47 dBm typical
• 1 dB compression (P1dB): 29 dBm typical
• Third order intercept (IP3): 47 dBm typical
• High power handling28.5 dBm through path25 dBm terminated path
• 28.5 dBm through path
• 25 dBm terminated path
• Single positive supply: 3 V to 5 V
• Integrated 2 to 4 line decoder

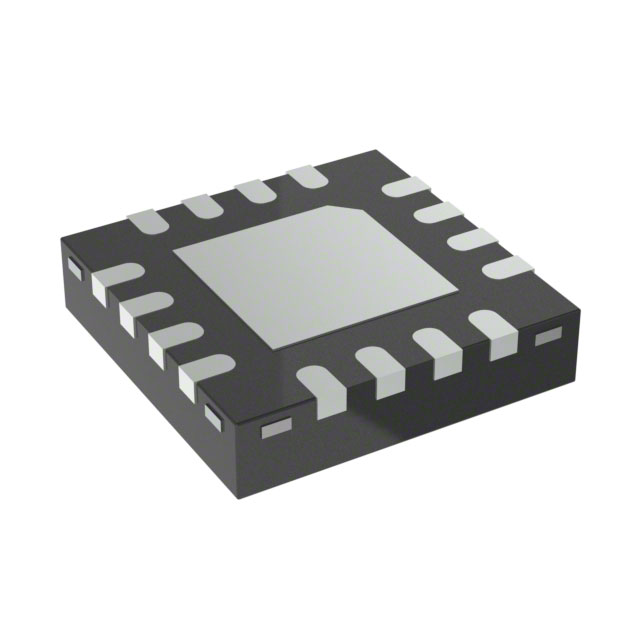

• 16-lead, 3 mm × 3 mm LFCSP package
• ESD rating: 250 V (Class 1A)
• Pin compatible with theHMC7992
• Download theHMC241ATCPZ-EP data sheet
• Military temperature range (−55°C to +125°C)
• Controlled manufacturing baseline
• One assembly/test site
• Product change notification
• Qualification data available on request
Description
AI
The HMC241ALP3E is a general-purpose, nonreflective, 100 MHz to 4 GHz single-pole, four-throw (SP4T) switch manufactured using a gallium arsenide (GaAs) process. This switch offers high isolation of 43 dB typical at 2 GHz, low insertion loss of 0.7 dB at 2 GHz, and on-chip termination of the isolated ports.The on-chip circuitry allows the HMC241ALP3E to operate at a single, positive supply voltage range of 3 V to 5 V. This switch requires two positive logic control voltages. The HMC241ALP3E includes an on-chip, binary two to four line decoder that provides logic control from two logic input lines to select one of the four radio frequency (RF) lines.The HMC241ALP3E is available in a 3 mm × 3 mm, 16-lead LFCSP package. The HMC7992 is the silicon version of this switch and features better performance up to higher frequencies.APPLICATIONSCellular/4 G infrastructureWireless infrastructureAutomotive telematicsMobile radiosTest equipment
