BXRH-57 Series

Manufacturer: BRIDGELUX

Catalog

LED COB V6HD THRIVE WHT SQ 5700K

Part	Current - Max [Max]	CRI (Color Rendering Index)	Light Emitting Surface (LES) [diameter]	Size / Dimension [y]	Size / Dimension [x]	CCT (K)	CCT (K)	Lens Type	Temperature - Test	Configuration	Type	Lumens/Watt @ Current - Test	Luminous Flux @ Current/Temperature	Voltage - Forward (Vf) (Typ)	Color	Height	Viewing Angle	Current - Test

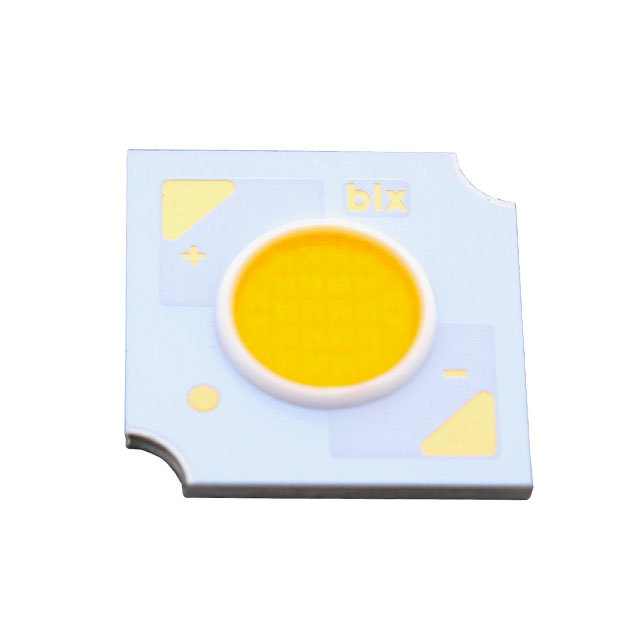

BRIDGELUX BXRH-57S1001-G-73	960 mA	98	6.6 mm	13.5 mm	13.5 mm	5700 K	3-Step MacAdam Ellipse	Flat	25 °C	Square	Chip On Board (COB)	110 lm/W	1401 lm	18.2 V	Cool White	1.63 mm	120 °

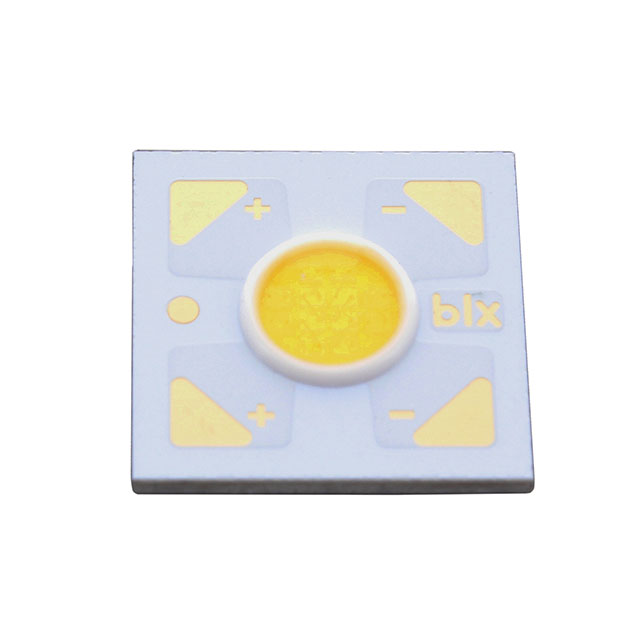

BRIDGELUX BXRH-57S0601-A-74	240 mA	98 98	4.5 mm 4.8 mm	12.5 mm	12.5 mm	5700 K		Flat	25 °C	Square	Chip On Board (COB)	106 lm/W	675 lm	36.4 V	Cool White	1.63 mm	120 °	175 mA
BRIDGELUX BXRH-57S1001-B-74	480 mA	98	6.6 mm	13.5 mm	13.5 mm	5700 K		Flat	25 °C	Square	Chip On Board (COB)	110 lm/W	1401 lm	36.4 V	Cool White	1.63 mm	120 °	350 mA
BRIDGELUX BXRH-57S1001-G-74	960 mA	98	6.6 mm	13.5 mm	13.5 mm	5700 K		Flat	25 °C	Square	Chip On Board (COB)	110 lm/W	1401 lm	18.2 V	Cool White	1.63 mm	120 °
