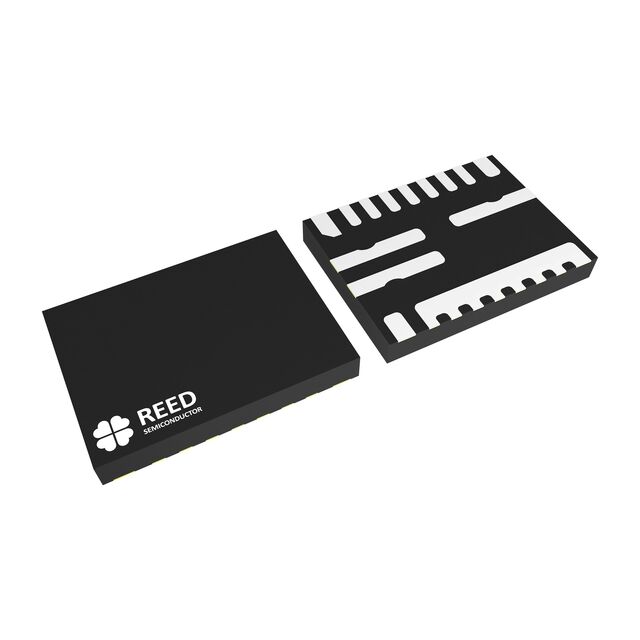

RS53319 Series
Manufacturer: Reed Semiconductor Corp.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
IC REG BUCK ADJ 20A 21QFN
| Part | Voltage - Output (Min/Fixed) | Current - Output | Function | Topology | Voltage - Input (Min) | Package Name | Package Length | Package Width | Output Configuration | Output Type | Package / Case | Number of Outputs | Voltage - Input (Max) | Mounting Type | Operating Temperature (Max) | Operating Temperature (Min) | Voltage - Output (Max) | Frequency - Switching | Frequency - Switching (Max) | Frequency - Switching (Min) | Synchronous Rectifier |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Reed Semiconductor Corp. | 0.9 V | 20 A | Step-Down | Buck | 2.85 V | 21-QFN | 3 mm | 4 mm | Positive | Programmable | 21-QFN | 1 | 16 V | Surface Mount | 125 °C | -40 °C | 5.5 V | 600 kHz 800 kHz | 2.2 MHz | 1 MHz | Yes |
Reed Semiconductor Corp. | 0.6 V | 20 A | Step-Down | Buck | 2.85 V | 21-QFN | 3 mm | 4 mm | Positive | Adjustable Programmable | 21-QFN | 1 | 16 V | Surface Mount | 125 °C | -40 °C | 5.5 V | 600 kHz 800 kHz | 2.2 MHz | 1 MHz | Yes |
