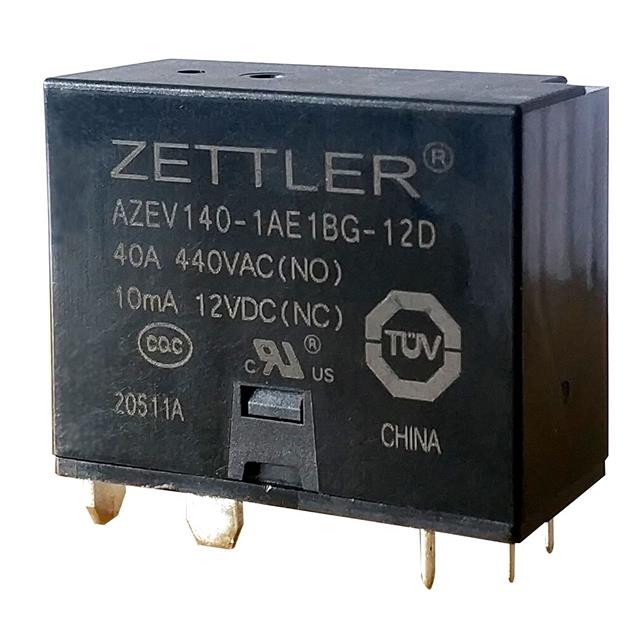

AZEV140 Series
Manufacturer: American Zettler
Beta
⌘K
RELAY EV CHARGING SPST 50A 12V
| Part | Coil Resistance | Termination Style | Mounting Type | Contact Form | Contact Rating (Current) | Must Release Voltage | Release Time | Load - Max Switching [Max] | Coil Type | Contact Material | Coil Insulation | Relay Type | Coil Current | Must Operate Voltage | Approval Agency | Coil Voltage | Switching Voltage [Max] | Operate Time | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 American Zettler | 68.5 Ohms | PC Pin Quick Connect | Through Hole | SPST-NO (1 Form A) | 50 A | 0.6 VDC | 10 ms | 22000 VA | Non Latching | Silver Tin Oxide (AgSnO) | Class F | EV Charging | 175.2 mA | 9 VDC | CQC cURus TUV | 12 VDC | 440 VAC | 30 ms | 85 °C | -40 C |
American Zettler | 274 Ohms | PC Pin Quick Connect | Through Hole | SPST-NO (1 Form A) | 50 A | 1.2 VDC | 10 ms | 22000 VA | Non Latching | Silver Tin Oxide (AgSnO) | Class F | EV Charging | 87.6 mA | 18 VDC | CQC cURus TUV | 24 VDC | 440 VAC | 30 ms | 85 °C | -40 C |
American Zettler | 68.5 Ohms | PC Pin Quick Connect | Through Hole | DPST-NO/NC (1 Form A 1 Form B) | 50 A | 0.6 VDC | 10 ms | 22000 VA | Non Latching | Gold (Au) Silver Nickel (AgNi) Silver Tin Oxide (AgSnO) | Class F | EV Charging | 175.2 mA | 9 VDC | CQC cURus TUV | 12 VDC | 440 VAC | 30 ms | 85 °C | -40 C |
American Zettler | 11.8 Ohms | PC Pin Quick Connect | Through Hole | DPST-NO/NC (1 Form A 1 Form B) | 50 A | 0.25 VDC | 10 ms | 22000 VA | Non Latching | Gold (Au) Silver Nickel (AgNi) Silver Tin Oxide (AgSnO) | Class F | EV Charging | 423.7 mA | 3.75 VDC | CQC cURus TUV | 5 VDC | 440 VAC | 30 ms | 85 °C | -40 C |
