DF11C Series

Catalog

CONN RCPT 24POS 0.079 GOLD SMD

Part	Insulation Material	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Applications	Contact Shape	Contact Material	Number of Rows [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Style	Number of Positions Loaded	Fastening Type	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Insulation Color	Connector Type	Mated Stacking Heights	Termination	Number of Positions	Material Flammability Rating	Features	Row Spacing - Mating	Row Spacing - Mating	Insulation Height [z]	Insulation Height [z]	Voltage Rating	Contact Type	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Shrouding	Insulation Height	Insulation Height
Hirose Electric Co Ltd DF11CZ-24DS-2V(52)	Nylon Polyamide (PA)	78.7 µin	2 µm	General Purpose	Square	Phosphor Bronze	2	85 °C	-30 ░C	Board to Board Cable	All	Friction Lock	Gold	8 µin	0.203 µm	Tin	Beige	Receptacle	7.55 mm 8.2 mm	Solder	24	UL94 V-0	Pick and Place Solder Retention	2 mm	0.079 in	5.95 mm	0.234 in	250 V	Female Socket	2 A	0.079 "	2 mm	Surface Mount

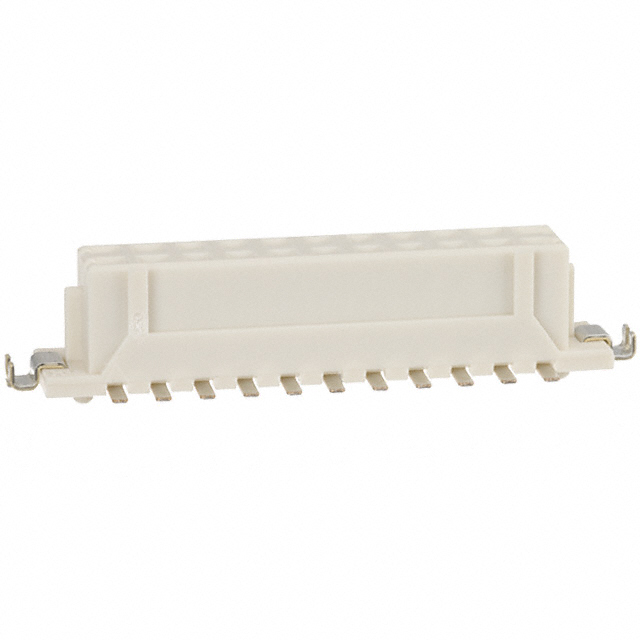

Hirose Electric Co Ltd DF11CZ-22DS-2V(22)	Nylon Polyamide (PA)	78.7 µin	2 µm	General Purpose	Square	Phosphor Bronze	2	85 °C	-30 ░C	Board to Board Cable	All	Friction Lock				Tin	Beige	Receptacle	7.55 mm 8.2 mm	Solder	22	UL94 V-0	Pick and Place Solder Retention	2 mm	0.079 in	5.95 mm	0.234 in	250 V	Female Socket	2 A	0.079 "	2 mm	Surface Mount	39.4 µin	1 µm

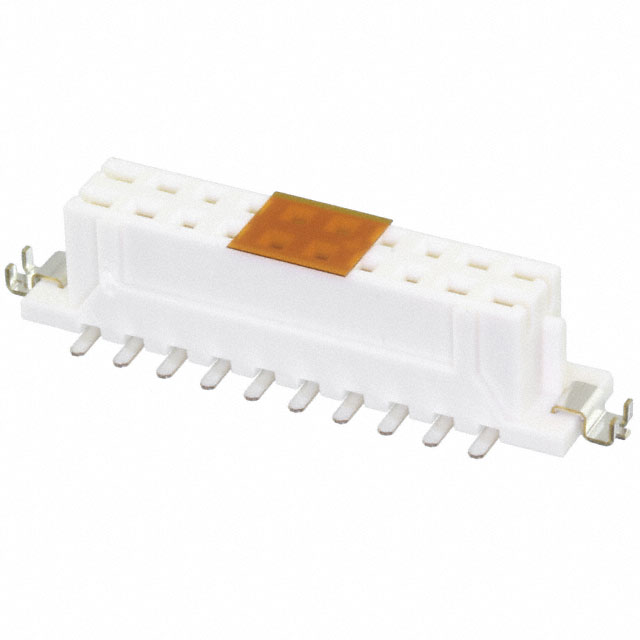

Hirose Electric Co Ltd DF11CZ-20DS-2V(22)	Nylon Polyamide (PA)	78.7 µin	2 µm	General Purpose	Square	Phosphor Bronze	2	85 °C	-30 ░C	Board to Board Cable	All	Friction Lock				Tin	Beige	Receptacle	7.55 mm 8.2 mm	Solder	20	UL94 V-0	Pick and Place Solder Retention	2 mm	0.079 in	5.95 mm	0.234 in	250 V	Female Socket	2 A	0.079 "	2 mm	Surface Mount	39.4 µin	1 µm
Hirose Electric Co Ltd DF11CZ-40DS-2V(22)	Nylon Polyamide (PA)	78.7 µin	2 µm	General Purpose	Square	Phosphor Bronze	2	85 °C	-30 ░C	Board to Board Cable	All	Friction Lock				Tin	Beige	Receptacle	7.55 mm 8.2 mm	Solder	40	UL94 V-0	Pick and Place Solder Retention	2 mm	0.079 in	5.95 mm	0.234 in	250 V	Female Socket	2 A	0.079 "	2 mm	Surface Mount	39.4 µin	1 µm
Hirose Electric Co Ltd DF11CZ-24DP-2V(27)	Nylon Polyamide (PA)				Circular	Brass	2	85 °C	-30 ░C	Board to Board Cable	All	Detent Lock				Tin	Beige	Header	8.2 mm 8.45 mm 9.55 mm	Solder	24	UL94 V-0	Pick and Place Solder Retention	2 mm	0.079 in			250 V	Male Pin	2 A	0.079 "	2 mm	Surface Mount	39.4 µin	1 µm	Shrouded - 4 Wall	0.283 in	7.19 mm
Hirose Electric Co Ltd DF11C-26DP-2V(57)	Nylon Polyamide (PA)				Circular	Brass	2	85 °C	-30 ░C	Board to Board Cable	All	Detent Lock	Gold	8 µin	0.203 µm		Beige	Header	8.2 mm 8.45 mm 9.55 mm	Solder	26	UL94 V-0	Pick and Place Solder Retention	2 mm	0.079 in			250 V	Male Pin	2 A	0.079 "	2 mm	Surface Mount			Shrouded - 4 Wall	0.283 in	7.19 mm
Hirose Electric Co Ltd DF11CZ-18DP-2V(21)	Nylon Polyamide (PA)				Circular	Brass	2	85 °C	-30 ░C	Board to Board Cable	All	Detent Lock				Tin	Beige	Header	8.2 mm 8.45 mm 9.55 mm	Solder	18	UL94 V-0	Solder Retention	2 mm	0.079 in			250 V	Male Pin	2 A	0.079 "	2 mm	Surface Mount			Shrouded - 4 Wall	0.283 in	7.19 mm

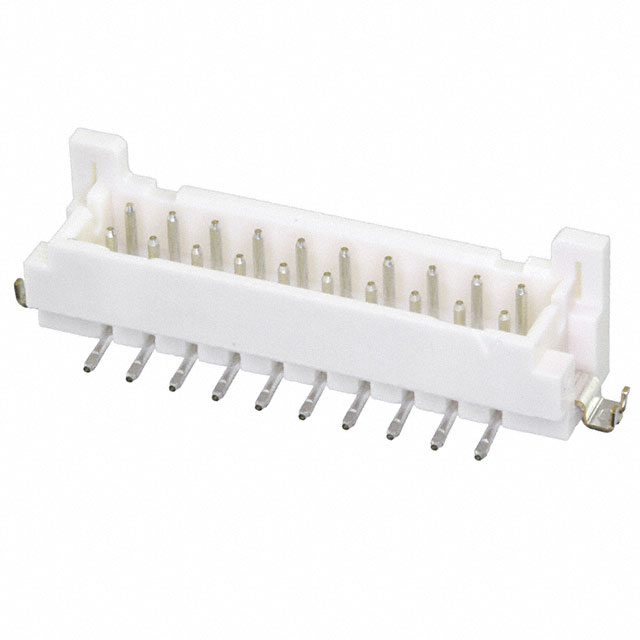

Hirose Electric Co Ltd DF11CZ-20DP-2V(27)	Nylon Polyamide (PA)				Circular	Brass	2	85 °C	-30 ░C	Board to Board Cable	All	Detent Lock				Tin	Beige	Header	8.2 mm 8.45 mm 9.55 mm	Solder	20	UL94 V-0	Pick and Place Solder Retention	2 mm	0.079 in			250 V	Male Pin	2 A	0.079 "	2 mm	Surface Mount	39.4 µin	1 µm	Shrouded - 4 Wall	0.283 in	7.19 mm
Hirose Electric Co Ltd DF11CZ-26DS-2V(52)	Nylon Polyamide (PA)	78.7 µin	2 µm	General Purpose	Square	Phosphor Bronze	2	85 °C	-30 ░C	Board to Board Cable	All	Friction Lock	Gold	8 µin	0.203 µm	Tin	Beige	Receptacle	7.55 mm 8.2 mm	Solder	26	UL94 V-0	Pick and Place Solder Retention	2 mm	0.079 in	5.95 mm	0.234 in	250 V	Female Socket	2 A	0.079 "	2 mm	Surface Mount
Hirose Electric Co Ltd DF11CZ-40DP-2V(27)	Nylon Polyamide (PA)				Circular	Brass	2	85 °C	-30 ░C	Board to Board Cable	All	Detent Lock				Tin	Beige	Header	8.2 mm 8.45 mm 9.55 mm	Solder	40	UL94 V-0	Pick and Place Solder Retention	2 mm	0.079 in			250 V	Male Pin	2 A	0.079 "	2 mm	Surface Mount	39.4 µin	1 µm	Shrouded - 4 Wall	0.283 in	7.19 mm
