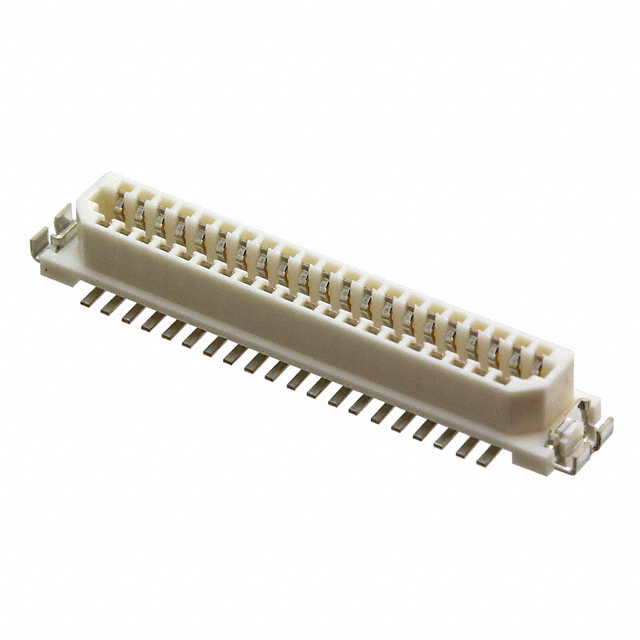

DF9 Series

Catalog

BOARD TO BOARD & MEZZANINE CONNECTORS 1.0MM V SMT RECPT 19P TIN PLATING

Part	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Number of Rows [custom]	Pitch	Pitch	Connector Type	Contact Finish	Features	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Number of Positions [custom]
Hirose Electric Co Ltd DF9-19S-1V(32)	4.3 mm	3.3 mm	0.13 in	2	1 mm	0.039 in	Receptacle Outer Shroud Contacts	Tin	Board Guide Solder Retention	Surface Mount	1 Ám	39.4 Áin	19
Hirose Electric Co Ltd DF9A-31S-1V(20)	4.3 mm	3.3 mm	0.13 in	2	1 mm	0.039 in	Receptacle Outer Shroud Contacts	Tin	Board Guide	Surface Mount				31
Hirose Electric Co Ltd DF9B-21S-1V(69)	4.3 mm	3.3 mm	0.13 in	2	1 mm	0.039 in	Receptacle Outer Shroud Contacts	Gold	Solder Retention	Surface Mount	0.203 çm	8 µin	21
Hirose Electric Co Ltd DF9B-9S-1V(61)	4.3 mm	3.3 mm	0.13 in	2	1 mm	0.039 in	Receptacle Outer Shroud Contacts	Gold	Solder Retention	Surface Mount			9
Hirose Electric Co Ltd DF9-15P-1V(69)	4.3 mm	3.3 mm	0.13 in	2	1 mm	0.039 in	Header Center Strip Contacts	Gold	Board Guide Solder Retention	Surface Mount	0.203 çm	8 µin	15
Hirose Electric Co Ltd DF9B-25P-1V(68)	4.3 mm	3.3 mm	0.13 in	2	1 mm	0.039 in	Header Center Strip Contacts	Gold	Solder Retention	Surface Mount	0.41 µm	16 µin	25
Hirose Electric Co Ltd DF9-11P-1V(32)	4.3 mm	3.3 mm	0.13 in	2	1 mm	0.039 in	Header Center Strip Contacts	Tin	Board Guide Solder Retention	Surface Mount	1 Ám	39.4 Áin	11
Hirose Electric Co Ltd DF9-41S-1V(32)	4.3 mm	3.3 mm	0.13 in	2	1 mm	0.039 in	Receptacle Outer Shroud Contacts	Tin	Board Guide Solder Retention	Surface Mount	1 Ám	39.4 Áin	41
