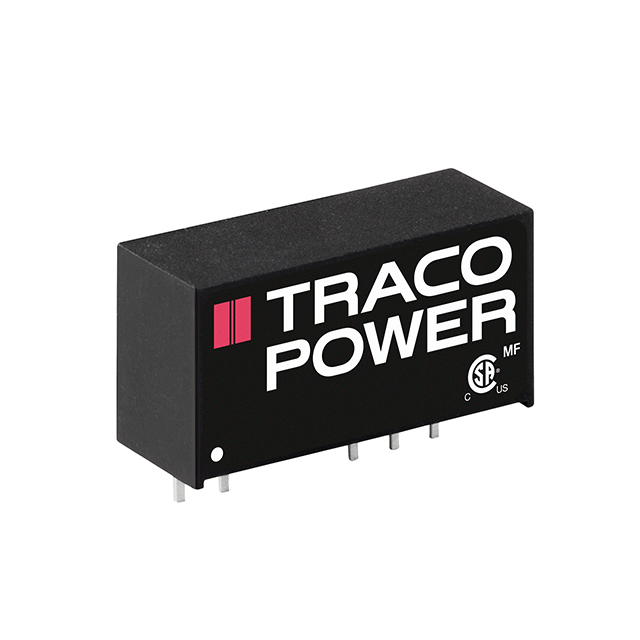

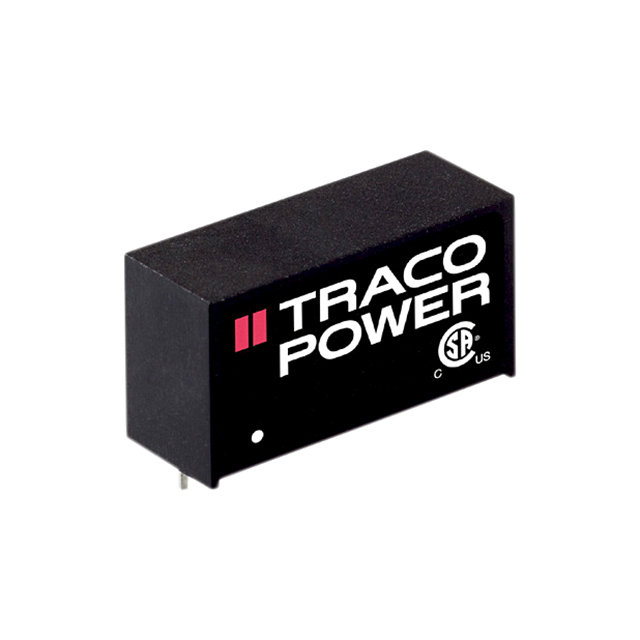

TMV 2 Series

Catalog

DC DC CONVERTER 12V 2W

Part	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Voltage - Input (Max) [Max]	Features	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Output 1	Number of Outputs	Current - Output (Max) [Max]	Mounting Type	Voltage - Input (Min) [Min]	Package / Case	Type	Efficiency	Applications	Current - Output (Max)	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)
Traco Power TMV 2-1212SHI	5.2 kV	85 °C	-40 °C	2 W	13.2 V	SCP	10.2 mm	7.5 mm	0.3 "	19.5 mm	0.77 in	0.4 "	12 V	1	168 mA	Through Hole	10.8 V	7-SIP Module 4 Leads	Isolated Module	83 %	ITE (Commercial)
Traco Power TMV 2-1515DHI	5.2 kV	85 °C	-40 °C	2 W	16.5 V	SCP	10.2 mm	7.5 mm	0.3 "	19.5 mm	0.77 in	0.4 "	15 V	2		Through Hole	13.5 V	7-SIP Module 5 Leads	Isolated Module		ITE (Commercial)	66 mA	-15 V
Traco Power TMV 2-1509SHI	5.2 kV	85 °C	-40 °C	2 W	16.5 V	SCP	10.2 mm	7.5 mm	0.3 "	19.5 mm	0.77 in	0.4 "	9 V	1	222 mA	Through Hole	13.5 V	7-SIP Module 4 Leads	Isolated Module	83 %	ITE (Commercial)
Traco Power TMV 2-1205DHI	5.2 kV	85 °C	-40 °C	2 W	13.2 V	SCP	10.2 mm	7.5 mm	0.3 "	19.5 mm	0.77 in	0.4 "	5 V	2		Through Hole	10.8 V	7-SIP Module 5 Leads	Isolated Module	79 %	ITE (Commercial)		-5 V
Traco Power TMV 2-1515SHI	5.2 kV	85 °C	-40 °C	2 W	16.5 V	SCP	10.2 mm	7.5 mm	0.3 "	19.5 mm	0.77 in	0.4 "	15 V	1	132 mA	Through Hole	13.5 V	7-SIP Module 4 Leads	Isolated Module	85 %	ITE (Commercial)

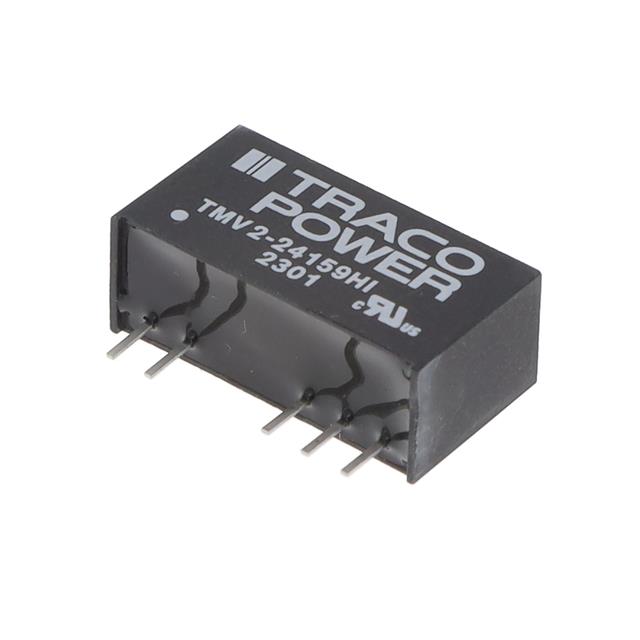

Traco Power TMV 2-24159HI	5.2 kV	85 °C	-40 °C	2 W	26.4 V	SCP	10.2 mm	7.5 mm	0.3 "	19.5 mm	0.77 in	0.4 "	15 V	2		Through Hole	21.6 V	7-SIP Module 4 Leads	Isolated Module	81 %	ITE (Commercial)	66 mA 110 mA	-9 V
Traco Power TMV 2-0503SHI	5.2 kV	85 °C	-40 °C	1.7 W	5.5 V	SCP	10.2 mm	7.5 mm	0.3 "	19.5 mm	0.77 in	0.4 "	3.3 V	1	500 mA	Through Hole	4.5 V	7-SIP Module 4 Leads	Isolated Module	74 %	ITE (Commercial)

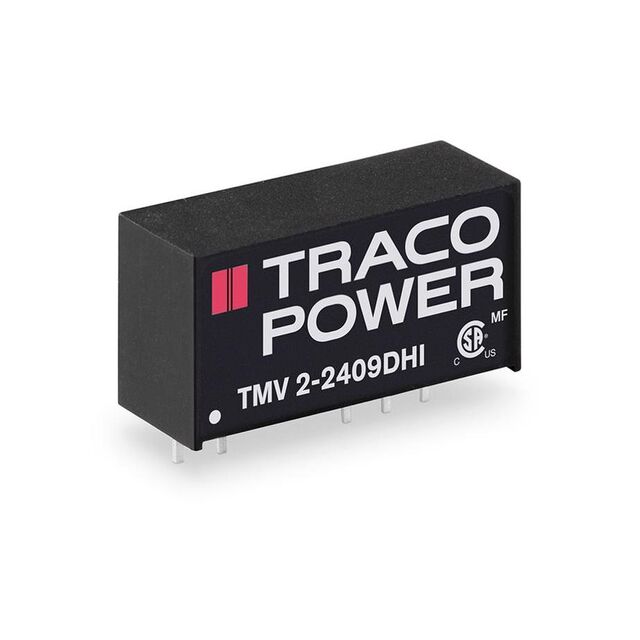

Traco Power TMV 2-12159HI	5.2 kV	85 °C	-40 °C	2 W	13.2 V	SCP	10.2 mm	7.5 mm	0.3 "	19.5 mm	0.77 in	0.4 "	15 V	2		Through Hole	10.8 V	7-SIP Module 4 Leads	Isolated Module	81 %	ITE (Commercial)	66 mA 110 mA	-9 V
Traco Power TMV 2-1505SHI	5.2 kV	85 °C	-40 °C	2 W	16.5 V	SCP	10.2 mm	7.5 mm	0.3 "	19.5 mm	0.77 in	0.4 "	5 V	1	400 mA	Through Hole	13.5 V	7-SIP Module 4 Leads	Isolated Module	79 %	ITE (Commercial)
Traco Power TMV 2-1212DHI	5.2 kV	85 °C	-40 °C	2 W	13.2 V	SCP	10.2 mm	7.5 mm	0.3 "	19.5 mm	0.77 in	0.4 "	12 V	2		Through Hole	10.8 V	7-SIP Module 5 Leads	Isolated Module		ITE (Commercial)		-12 V	84 mA	84 mA
