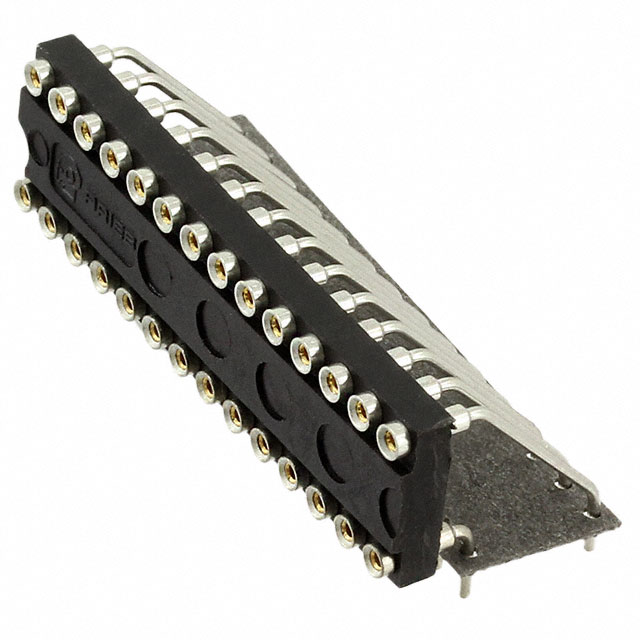

28-823 Series
Manufacturer: Aries Electronics
Beta
⌘K
CONN IC DIP SOCKET 28POS GOLD
| Part | Termination Post Length | Termination Post Length | Current Rating (Amps) | Material Flammability Rating | Termination | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Number of Positions or Pins (Grid) | Operating Temperature [Min] | Operating Temperature [Max] | Housing Material | Features | Type | Type | Type | Pitch - Post | Pitch - Post | Contact Material - Mating | Contact Material - Post [custom] | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Aries Electronics | 3.56 mm | 0.14 in | 3 A | UL94 V-0 | Solder | 0.76 Ám | 30 Áin | 200 µin | 5.08 µm | 0.1 " | 2.54 mm | Gold | 28 | -55 C | 105 ░C | Polyamide (PA46) Nylon 4/6 Glass Filled | Closed Frame | 7.62 mm | 0.3 in | DIP | 0.1 in | 2.54 mm | Beryllium Copper | Brass | Tin |
