RP34L Series

Catalog

CONN PLUG HSG 3POS 2.35MM

Part	Note	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Insulation Material	Contact Type	Color	Mounting Type	Contact Termination	Connector Type	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Material Flammability Rating	Contact Material	Number of Positions Loaded	Insulation Color	Number of Positions	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Contact Shape	Fastening Type	Contact Length - Post	Contact Length - Post	Features	Termination	Insulation Height [z]	Insulation Height [z]	Style	Contact Finish - Mating	Shrouding	Accessory Type

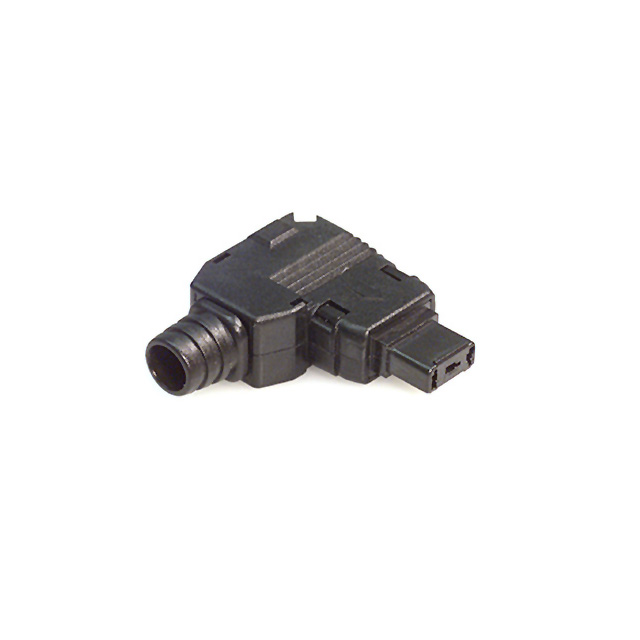

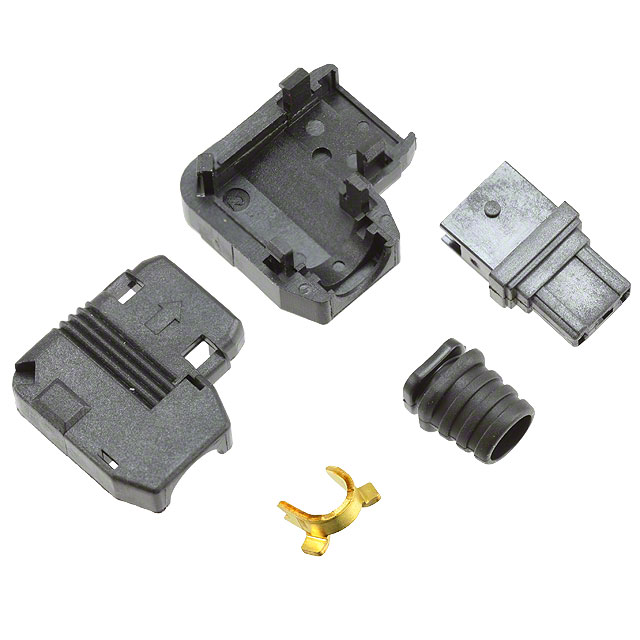

Hirose Electric Co Ltd RP34L-5LP-3SC(71)	Contacts Not Included	0.092 in	2.35 mm	-10 °C	60 °C	1	Polyphenylene Sulfide (PPS)	Female Socket	Black	Free Hanging (In-Line) Right Angle	Crimp	Plug
Hirose Electric Co Ltd RP34L-5R-2PD(71)				-25 °C	85 °C	1	Nylon Polyamide (PA)	Male Pin		Right Angle Through Hole		Header	39.4 µin	1 µm	UL94 V-0	Brass	All	Black	2	5 A	0.106 in	2.7 mm	Square	Latch Holder	2.5 mm	0.098 in	Board Guide Shielded	Solder	6.1 mm	0.24 in	Board to Cable/Wire	Palladium	Shrouded - 4 Wall
Hirose Electric Co Ltd RP34L-P																																		Cable Clamp

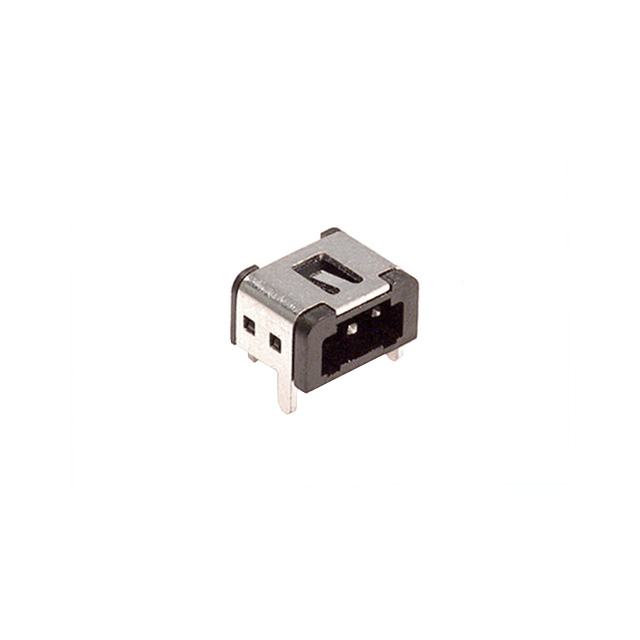

Hirose Electric Co Ltd RP34L-5R-3PD(75)				-25 °C	85 °C	1	Nylon Polyamide (PA)	Male Pin		Right Angle Through Hole		Header	39.4 µin	1 µm	UL94 V-0	Brass	All	Black		5 A	0.093 in	2.35 mm	Square	Latch Holder	2.5 mm	0.098 in	Board Guide Shielded	Solder	6.1 mm	0.24 in	Board to Cable/Wire	Palladium	Shrouded - 4 Wall
Hirose Electric Co Ltd RP34L-5PA-2SC(1854)F
