TPS63700 Series

Catalog

EVALUATION MODULE FOR TPS63700

Part	Voltage - Output	Current - Output	Regulator Topology	Frequency - Switching	Outputs and Type	Outputs and Type	Voltage - Input [Min]	Voltage - Input [Max]	Utilized IC / Part	Board Type	Main Purpose	Supplied Contents	Voltage - Output (Max) [Max]	Mounting Type	Number of Outputs	Voltage - Output (Min/Fixed)	Supplier Device Package	Function	Package / Case	Output Configuration	Voltage - Input (Max) [Max]	Topology	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]

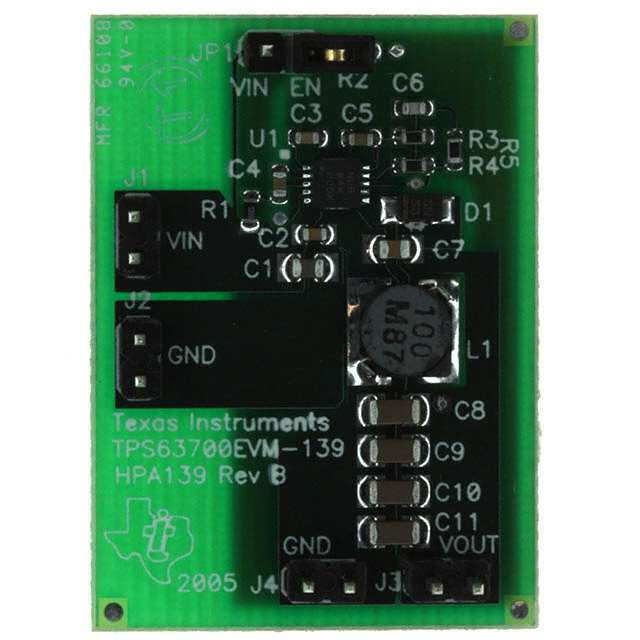

Texas Instruments TPS63700EVM-139	-12 V	200 mA	Inverting	1.4 MHz	Non-Isolated	1	2.7 V	5.5 V	TPS63700	Fully Populated	DC/DC Negative Inverter	Board(s)
Texas Instruments TPS63700DRCT		360 mA		1.38 MHz									-15 V	Surface Mount	1	-2 V	10-VSON (3x3)	Step-Up/Step-Down	10-VFDFN Exposed Pad	Negative	5.5 V	Buck-Boost	Adjustable	85 °C	-40 °C	2.7 V
Texas Instruments TPS63700DRCR		360 mA		1.38 MHz									-15 V	Surface Mount	1	-2 V	10-VSON (3x3)	Step-Up/Step-Down	10-VFDFN Exposed Pad	Negative	5.5 V	Buck-Boost	Adjustable	85 °C	-40 °C	2.7 V
Texas Instruments TPS63700DRCTG4		360 mA		1.38 MHz									-15 V	Surface Mount	1	-2 V	10-VSON (3x3)	Step-Up/Step-Down	10-VFDFN Exposed Pad	Negative	5.5 V	Buck-Boost	Adjustable	85 °C	-40 °C	2.7 V
