TPA2011D1 Series

3.2-W, mono, analog input Class-D audio amplifier with auto-recovering short-circuit protection

Catalog

3.2-W, mono, analog input Class-D audio amplifier with auto-recovering short-circuit protection

Part	Mounting Type	Supplier Device Package	Features	Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Package / Case	Max Output Power x Channels @ Load	Board Type	Utilized IC / Part	Supplied Contents
Texas Instruments TPA2011D1YFFR	Surface Mount	9-DSBGA	Differential Inputs Short-Circuit and Thermal Protection Shutdown	Class D	2.5 V	5.5 V	85 °C	-40 °C	1-Channel (Mono)	9-UFBGA DSBGA	1 3.24 W

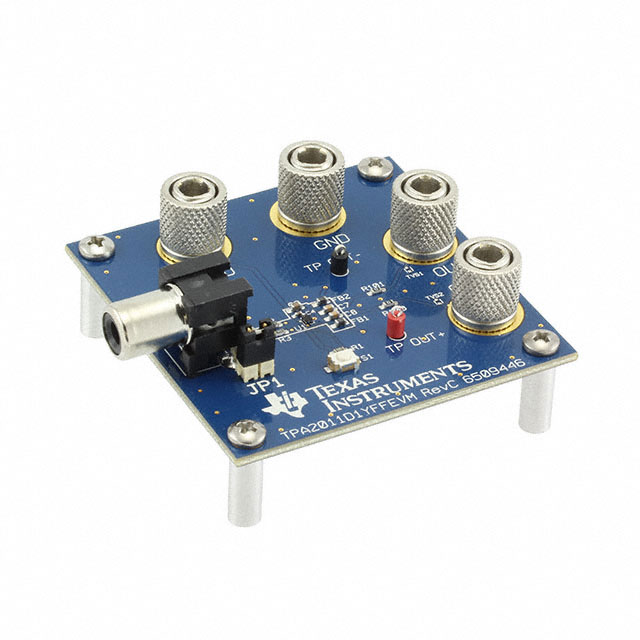

Texas Instruments TPA2011D1YFFEVM					2.5 V	5.5 V			1-Channel (Mono)		1 3.24 W	Fully Populated	TPA2011D1	Board(s)

Catalog

3.2-W, mono, analog input Class-D audio amplifier with auto-recovering short-circuit protection

Key Features

• Powerful Mono Class-D Amplifier3.24 W (4 Ω, 5 V, 10% THDN)2.57 W (4 Ω, 5 V, 1% THDN)1.80 W (8 Ω, 5 V, 10% THDN)1.46 W (8 Ω, 5 V, 1% THDN)Integrated Feedback Resistor of 300 kΩIntegrated Image Reject Filter for DAC NoiseReductionLow Output Noise of 20 µVLow Quiescent Current of 1.5 mAAuto Recovering Short-Circuit ProtectionThermal Overload Protection9-Ball, 1.21mm × 1.16 mm 0.4 mm Pitch DSBGAAPPLICATIONSWireless or Cellular Handsets and PDAsPortable Navigation DevicesGeneral Portable Audio DevicesAll other trademarks are the property of their respective ownersPowerful Mono Class-D Amplifier3.24 W (4 Ω, 5 V, 10% THDN)2.57 W (4 Ω, 5 V, 1% THDN)1.80 W (8 Ω, 5 V, 10% THDN)1.46 W (8 Ω, 5 V, 1% THDN)Integrated Feedback Resistor of 300 kΩIntegrated Image Reject Filter for DAC NoiseReductionLow Output Noise of 20 µVLow Quiescent Current of 1.5 mAAuto Recovering Short-Circuit ProtectionThermal Overload Protection9-Ball, 1.21mm × 1.16 mm 0.4 mm Pitch DSBGAAPPLICATIONSWireless or Cellular Handsets and PDAsPortable Navigation DevicesGeneral Portable Audio DevicesAll other trademarks are the property of their respective owners

Description

The TPA2011D1 is a 3.2-W high efficiency filter-free class-D audio power amplifier (class-D amp) in a 1.21 mm × 1.16 mm wafer chip scale package (DSBGA) that requires only three external components. Features like 95% efficiency, 86-dB PSRR, 1.5 mA quiescent current and improved RF immunity make the TPA2011D1 class-D amp ideal for cellular handsets. A fast start-up time of 4 ms with no audible turn-on pop makes the TPA2011D1 ideal for PDA and smart-phone applications. The TPA2011D1 allows independent gain while summing signals from separate sources, and has a low 20 µV noise floor. The TPA2011D1 is a 3.2-W high efficiency filter-free class-D audio power amplifier (class-D amp) in a 1.21 mm × 1.16 mm wafer chip scale package (DSBGA) that requires only three external components. Features like 95% efficiency, 86-dB PSRR, 1.5 mA quiescent current and improved RF immunity make the TPA2011D1 class-D amp ideal for cellular handsets. A fast start-up time of 4 ms with no audible turn-on pop makes the TPA2011D1 ideal for PDA and smart-phone applications. The TPA2011D1 allows independent gain while summing signals from separate sources, and has a low 20 µV noise floor.
