JRC16BP Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN PLUG MALE 7POS SILVER SLDR
| Part | Fastening Type | Mounting Type | Material Flammability Rating | Insert Material | Orientation | Shell Material | Voltage Rating | Shell Size - Insert | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Features | Number of Positions | Current Rating (Amps) | Color | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Shell Finish | Connector Type | Primary Material | Shielding | Backshell Material, Plating | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric Co Ltd | |||||||||||||||||||||||

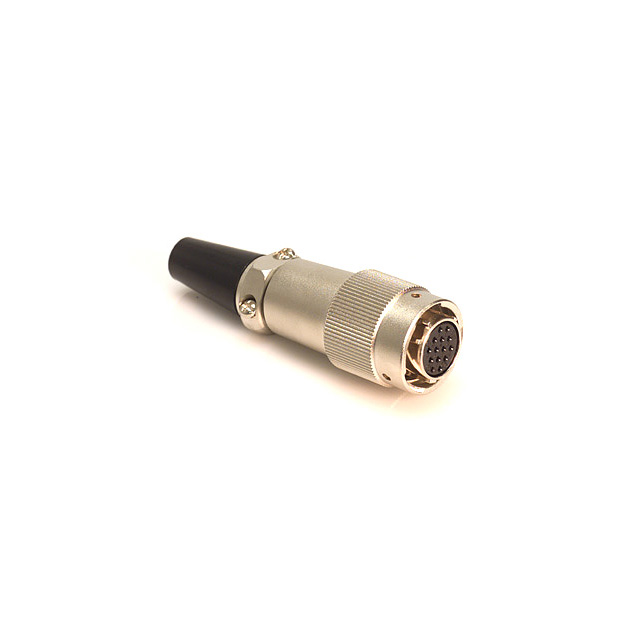

 Hirose Electric Co Ltd | Bayonet Lock | Free Hanging (In-Line) | UL94 V-0 | Phenol Formaldehyde (PF) | Keyed | Aluminum Alloy | 250 VAC 350 VDC | 16 | 78.7 µin | 2 µm | Backshell Clamp Coupling Nut Strain Relief | 14 | 5 A | Silver | 85 °C | -25 °C | Phosphor Bronze | Nickel | Plug Female Sockets | Metal | Unshielded | Aluminum Alloy Nickel | Silver |
 Hirose Electric Co Ltd | Aluminum Alloy | Nickel | Metal | ||||||||||||||||||||
Hirose Electric Co Ltd | |||||||||||||||||||||||
Hirose Electric Co Ltd | |||||||||||||||||||||||
Hirose Electric Co Ltd |
