25AA1024 Series

1Mb 1.8V SPI Serial EEPROM

Catalog

1Mb 1.8V SPI Serial EEPROM

Part	Memory Format	Package / Case	Memory Interface	Supplier Device Package	Mounting Type	Memory Organization	Clock Frequency	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Memory Size	Voltage - Supply [Min]	Voltage - Supply [Max]	Memory Type

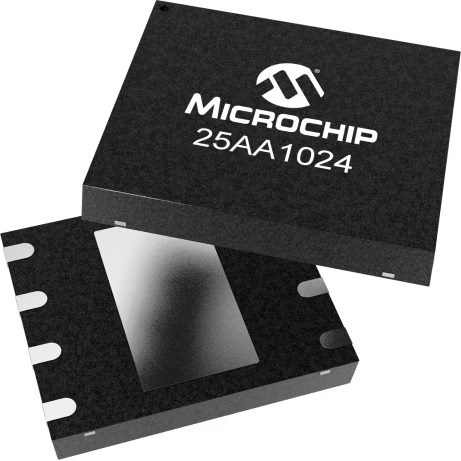

Microchip Technology 25AA1024-I/MF	EEPROM	8-VDFN Exposed Pad	SPI	8-DFN-S (6x5)	Surface Mount	128K x 8	20 MHz	EEPROM	85 °C	-40 °C	1 Mbit	1.8 V	5.5 V	Non-Volatile
Microchip Technology 25AA1024-I/WF16K	EEPROM	Die	SPI	Die	Surface Mount	128K x 8	20 MHz	EEPROM	85 °C	-40 °C	1 Mbit	1.8 V	5.5 V	Non-Volatile
Microchip Technology 25AA1024-I/S16K	EEPROM	Die	SPI	Die	Surface Mount	128K x 8	20 MHz	EEPROM	85 °C	-40 °C	1 Mbit	1.8 V	5.5 V	Non-Volatile

Catalog

1Mb 1.8V SPI Serial EEPROM

Key Features

• * 128K x 8-bit (1 Mbit)

• * Supports SPI modes 0 and 3

• * Up to 20 MHz clock frequency

• * Self-Timed Erase and Write Cycles (6 ms max.)

• * Read current: 10 mA (Max) at 20 MHz

• * Write current: 7mA (Max) at 5.5V

• * Deep power-down current: 1 μA (Max) at 2.5 V

• * Block Write Protection: Protect 1/4, 1/2 or Entire Array

• * More than 1 million erase/write cycles

• * Data retention > 200 years

• * Industrial (I): -40°C to 85°C

• * Automotive AECQ-100 Qualified1

• * Factory Programming Available

• * Available in standard packages including 8-lead PDIP and SOIJ, and advanced package 8-lead 5x6 DFN

Description

The Microchip 25AA1024 is a 1 Mb Serial EEPROM utilizing the industry standard Serial Peripheral Interface (SPI) compatible serial bus. The device is organized as one block of 128K x 8-bit and is optimized for use in consumer electronics, industrial, medical, and automotive applications where reliable and dependable nonvolatile memory storage is essential. Software write protection allows the user to protect ¼, ½, or the entire memory array. A hardware write protect pin is also provided, which additionally protects against inadvertent writes to the status register. The EEPROM is available in a variety of space-saving packaging options.
