AT86RF215IQ Series

Catalog

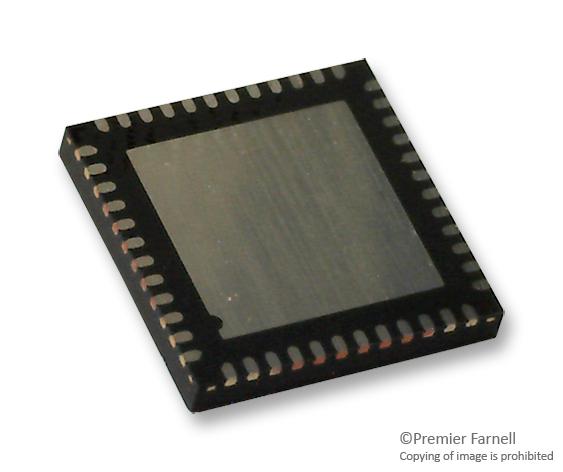

DUAL BAND I/Q RADIO, 48QFN, TRAY 48 VQFN 7X7X1.0MM TRAY ROHS COMPLIANT: YES

Part	RF Family/Standard	Package / Case	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Modulation	Current - Transmitting [Max]	Current - Transmitting [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Data Rate (Max)	Mounting Type	Frequency	Frequency [Max]	Frequency [Min]	Type	Sensitivity	Current - Receiving [Min]	Current - Receiving [Max]	Serial Interfaces
Microchip Technology AT86RF215IQ-ZU	802.15.4 General ISM < 1GHz	48-VFQFN Exposed Pad	48-QFN (7x7)	85 °C	-40 °C	FSK O-QPSK OFDM	64 mA	62 mA	3.6 V	1.8 V	2.4 Mbps	Surface Mount	2.4 GHz	1.02 GHz 510 MHz	389.5 MHz 779 MHz	TxRx Only	-123 dBm	5 mA	33 mA	SPI
Microchip Technology AT86RF215-ZUR	802.15.4 General ISM < 1GHz	48-VFQFN Exposed Pad	48-QFN (7x7)	85 °C	-40 °C	FSK O-QPSK OFDM	64 mA	62 mA	3.6 V	1.8 V	2.4 Mbps	Surface Mount	2.4 GHz	1.02 GHz 510 MHz	389.5 MHz 779 MHz	TxRx Only	-123 dBm	5 mA	33 mA	SPI
Microchip Technology AT86RF215IQ-ZUR	802.15.4 General ISM < 1GHz	48-VFQFN Exposed Pad	48-QFN (7x7)	85 °C	-40 °C	FSK O-QPSK OFDM	64 mA	62 mA	3.6 V	1.8 V	2.4 Mbps	Surface Mount	2.4 GHz	1.02 GHz 510 MHz	389.5 MHz 779 MHz	TxRx Only	-123 dBm	5 mA	33 mA	SPI
Microchip Technology AT86RF215M-ZUR	General ISM < 1GHz	48-VFQFN Exposed Pad	48-QFN (7x7)	85 °C	-40 °C	FSK O-QPSK OFDM	64 mA	62 mA	3.6 V	1.8 V	2.4 Mbps	Surface Mount		1.02 GHz 510 MHz	389.5 MHz 779 MHz	TxRx Only	-123 dBm	5 mA	33 mA	SPI
Microchip Technology AT86RF215M-ZU	General ISM < 1GHz	48-VFQFN Exposed Pad	48-QFN (7x7)	85 °C	-40 °C	FSK O-QPSK OFDM	64 mA	62 mA	3.6 V	1.8 V	2.4 Mbps	Surface Mount		1.02 GHz 510 MHz	389.5 MHz 779 MHz	TxRx Only	-123 dBm	5 mA	33 mA	SPI
Microchip Technology AT86RF215-ZU	802.15.4 General ISM < 1GHz	48-VFQFN Exposed Pad	48-VQFN (7x7)	85 °C	-40 °C	FSK O-QPSK OFDM	64 mA	62 mA	3.6 V	1.8 V	2.4 Mbps	Surface Mount	2.4 GHz	1.02 GHz 510 MHz	389.5 MHz 779 MHz	TxRx Only	-123 dBm	5 mA	33 mA	SPI

Catalog

Key Features

• undefined

Description

AT86RF215 is a dual-band sub-1GHz/2.4GHz transceiver compliant to IEEE 802.15.4-2011, IEEE 802.15.4g-2012, and ETSI TS 102 887-1. The AT86RF215 offers very high flexibility by supporting a variety of data rates with three modulation schemes: multi-rate and multi-regional frequency shift keying (MR-FSK), orthogonal frequency division multiplexing (MR-OFDM), as well as offset quadrature phase-shift keying (MR-O-QPSK). This includes the physical layer which is used for ZigBee PRO and IP. Simultaneous operation at sub-1GHz and 2.4GHz enables new capabilities and cost structure in smart metering, smart lighting, home energy gateways, and other industrial and automation equipment.
