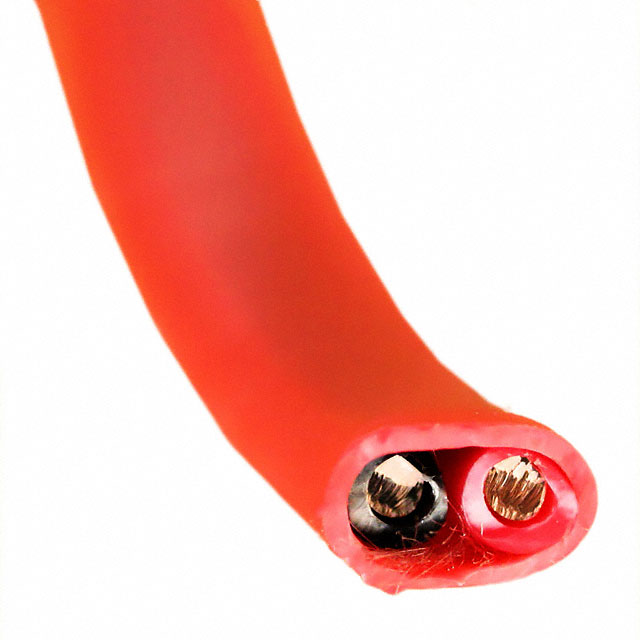

E3522S Series
Manufacturer: Prysmian Group
Beta
⌘K
CABLE 2COND 14AWG RED 50'
| Part | Conductor Strand | Jacket Color | Length | Length | Length [x] | Length [x] | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Conductor Material | Conductor Insulation | Number of Conductors | Cable Type | Features | Wire Gauge | Jacket (Insulation) Material | Ratings | Operating Temperature [Max] | Operating Temperature [Min] | Usage | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | Solid | Red | 15.24 m 152.4 m 304.8 m | 50 ft 500 ft 1000 ft | 100 ft | 30.5 m | 0.381 mm | 0.015 in | Copper Annealed Bare | Poly-Vinyl Chloride (PVC) | 2 | Multi-Conductor | Rip Cord | 14.5 AWG | Plenum Poly-Vinyl Chloride (PVC) | ASTM B-3 | 75 ░C | 0 °C | Alarm Alarm Safety Security Sound | 300 VDC | 0.205 in | 5.21 mm |
 Prysmian Group | Solid | Red Yellow | 304.8 m | 1000 ft | 0.381 mm | 0.015 in | Copper Annealed Bare | Poly-Vinyl Chloride (PVC) | 2 | Multi-Conductor | Rip Cord | 14.5 AWG | Plenum Poly-Vinyl Chloride (PVC) | 75 ░C | 0 °C | Alarm Security Sound | 300 VDC | 0.205 in | 5.21 mm | |||
Prysmian Group | Solid | Yellow | 15.24 m 304.8 m | 50 ft 1000 ft | 25 ft 100 ft | 7.62 m 30.5 m | 0.381 mm | 0.015 in | Copper Annealed Bare | Poly-Vinyl Chloride (PVC) | 2 | Multi-Conductor | Rip Cord | 14.5 AWG | Plenum Poly-Vinyl Chloride (PVC) | ASTM B-3 | 75 ░C | 0 °C | Alarm Alarm Safety Security Sound | 300 VDC | 0.205 in | 5.21 mm |
Prysmian Group | Solid | Blue Red | 304.8 m | 1000 ft | 0.381 mm | 0.015 in | Copper Annealed Bare | Poly-Vinyl Chloride (PVC) | 2 | Multi-Conductor | Rip Cord | 14.5 AWG | Plenum Poly-Vinyl Chloride (PVC) | ASTM B-3 | 75 ░C | 0 °C | Alarm Security Sound | 300 VDC | 0.205 in | 5.21 mm | ||
Prysmian Group | Solid | Green | 304.8 m | 1000 ft | 0.381 mm | 0.015 in | Copper Annealed Bare | Poly-Vinyl Chloride (PVC) | 2 | Multi-Conductor | Rip Cord | 14.5 AWG | Plenum Poly-Vinyl Chloride (PVC) | ASTM B-3 | 75 ░C | 0 °C | Alarm Security Sound | 300 VDC | 0.205 in | 5.21 mm | ||
Prysmian Group | Solid | Red | 152.4 m | 500 ft | 0.381 mm | 0.015 in | Copper Annealed Bare | Poly-Vinyl Chloride (PVC) | 2 | Multi-Conductor | Rip Cord | 14.5 AWG | Plenum Poly-Vinyl Chloride (PVC) | ASTM B-3 | 75 ░C | 0 °C | Alarm Safety | 300 VDC | 0.205 in | 5.21 mm | ||
Prysmian Group | Solid | Red | 15.24 m 152.4 m 304.8 m | 50 ft 500 ft 1000 ft | 100 ft | 30.5 m | 0.381 mm | 0.015 in | Copper Annealed Bare | Poly-Vinyl Chloride (PVC) | 2 | Multi-Conductor | Rip Cord | 14.5 AWG | Plenum Poly-Vinyl Chloride (PVC) | ASTM B-3 | 75 ░C | 0 °C | Alarm Safety | 300 VDC | 0.205 in | 5.21 mm |
 Prysmian Group | Solid | White | 15.24 m 304.8 m | 50 ft 1000 ft | 25 ft 100 ft | 7.62 m 30.5 m | 0.381 mm | 0.015 in | Copper Annealed Bare | Poly-Vinyl Chloride (PVC) | 2 | Multi-Conductor | Rip Cord | 14.5 AWG | Plenum Poly-Vinyl Chloride (PVC) | ASTM B-3 | 75 ░C | 0 °C | Alarm Alarm Safety Security Sound | 300 VDC | 0.205 in | 5.21 mm |
 Prysmian Group | Solid | Red | 304.8 m | 1000 ft | 0.381 mm | 0.015 in | Copper Annealed Bare | Poly-Vinyl Chloride (PVC) | 2 | Multi-Conductor | Rip Cord | 14.5 AWG | Plenum Poly-Vinyl Chloride (PVC) | ASTM B-3 | 75 ░C | 0 °C | Alarm Safety | 300 VDC | 0.205 in | 5.21 mm | ||
Prysmian Group | Solid | Yellow | 15.24 m 304.8 m | 50 ft 1000 ft | 25 ft 100 ft | 7.62 m 30.5 m | 0.381 mm | 0.015 in | Copper Annealed Bare | Poly-Vinyl Chloride (PVC) | 2 | Multi-Conductor | Rip Cord | 14.5 AWG | Plenum Poly-Vinyl Chloride (PVC) | ASTM B-3 | 75 ░C | 0 °C | Alarm Safety | 300 VDC | 0.205 in | 5.21 mm |
