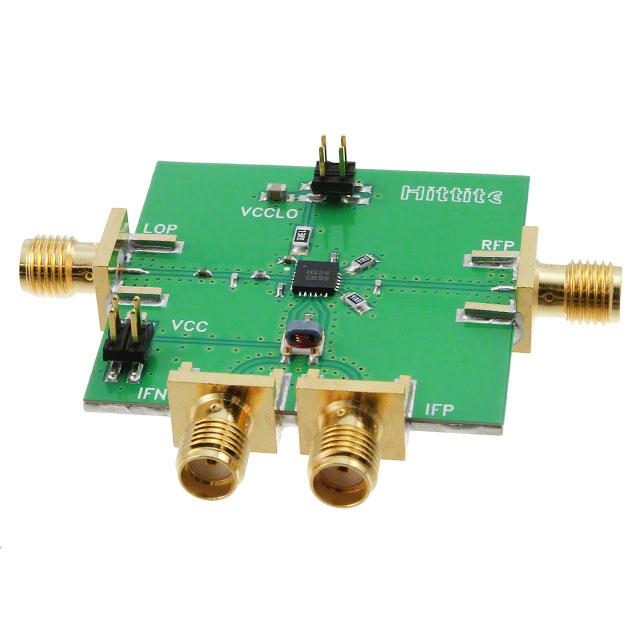

SiGe Wideband Downconverter Mixer SMT, 0.6 - 2.7 GHz
Key Features
• Conversion Loss: 0 dB
• LO to RF isolation: 48 dB
• Single-Ended LO Drive: -6 dBm
• Input IP3: +26 dBm
• SSB Noise Figure: 10.5 dB
• On CHip RF Balun
• RoHS Compliant 4x4 mm QFM Package
Description
AI
The HMC334LP4(E) is a low noise, wideband downconverter RFIC which is ideal for Celullar/3G and WiMAX/4G applications from 0.6 to 2.7 GHz. The LO input accepts drive levels from -6 to +6 dBm while the RFIC provides 48 dB of LO to RF isolation, and 0 dB conversion loss. The HMC334LP4(E) will support an IF output bandwidth of up to 600 MHz and consumes only 173mA from a +5V supply. This wideband active mixer also provides excellent performance in the presence of high level "Blocker" signals, making it ideal fro receiver applications in demanding environments.ApplicationsBasestations & RepeatersGSM, GPRS & EdgeCDMA, W-CDMA & TD-SCDMAWiMAX & WiBro
