E2006S Series

Catalog

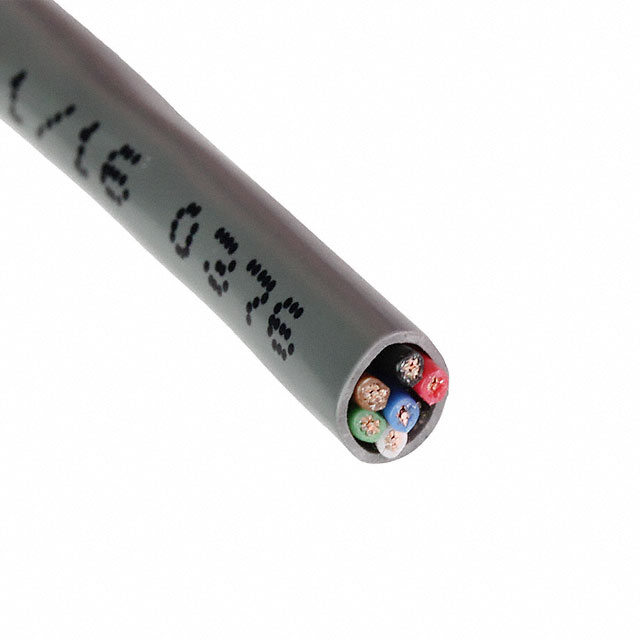

CABLE 6COND 22AWG GRAY SHLD

Part	Conductor Material	Cable Type	Wire Gauge	Jacket Color	Shield Type	Features	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Voltage	Jacket (Insulation) Material	Jacket (Insulation) Thickness [x]	Jacket (Insulation) Thickness [x]	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]	Shield Material	Conductor Insulation	Length	Length	Shield Coverage	Usage	Number of Conductors
Prysmian Group E2006S.41.10	Copper Bare	Multi-Conductor	22 AWG	Gray	Foil	Drain Wire	0.173 "	4.39 mm	300 VDC	Poly-Vinyl Chloride (PVC)	0.381 mm	0.015 in	30 AWG	7	100 ft	30.5 m	Flexfoil®	Poly-Vinyl Chloride (PVC)	152.4 m 304.8 m	500 ft 1000 ft	100 %	Alarm Security Sound	6
Prysmian Group E2006S.18.10	Copper Bare	Multi-Conductor	22 AWG	Gray	Foil	Drain Wire	0.173 "	4.39 mm	300 VDC	Poly-Vinyl Chloride (PVC)	0.381 mm	0.015 in	30 AWG	7				Poly-Vinyl Chloride (PVC)	152.4 m	500 ft		Alarm Security Sound	6
Prysmian Group E2006S.30.10	Copper Bare	Multi-Conductor	22 AWG	Gray	Foil	Drain Wire	0.173 "	4.39 mm	300 VDC	Poly-Vinyl Chloride (PVC)	0.381 mm	0.015 in	30 AWG	7				Poly-Vinyl Chloride (PVC)	304.8 m	1000 ft		Alarm Security Sound	6
Prysmian Group E2006S.18.10	Copper Bare	Multi-Conductor	22 AWG	Gray	Foil	Drain Wire	0.173 "	4.39 mm	300 VDC	Poly-Vinyl Chloride (PVC)	0.381 mm	0.015 in	30 AWG	7			Flexfoil®	Poly-Vinyl Chloride (PVC)	152.4 m	500 ft	100 %	Alarm Security Sound	6
Prysmian Group E2006S.30.10	Copper Bare	Multi-Conductor	22 AWG	Gray	Foil	Drain Wire	0.173 "	4.39 mm	300 VDC	Poly-Vinyl Chloride (PVC)	0.381 mm	0.015 in	30 AWG	7			Flexfoil®	Poly-Vinyl Chloride (PVC)	304.8 m	1000 ft	100 %	Alarm Security Sound	6
Prysmian Group E2006S.41.10	Copper Bare	Multi-Conductor	22 AWG	Gray	Foil	Drain Wire	0.173 "	4.39 mm	300 VDC	Poly-Vinyl Chloride (PVC)	0.381 mm	0.015 in	30 AWG	7	100 ft	30.5 m		Poly-Vinyl Chloride (PVC)	15.24 m 152.4 m 304.8 m	50 ft 500 ft 1000 ft		Alarm Security Sound	6
