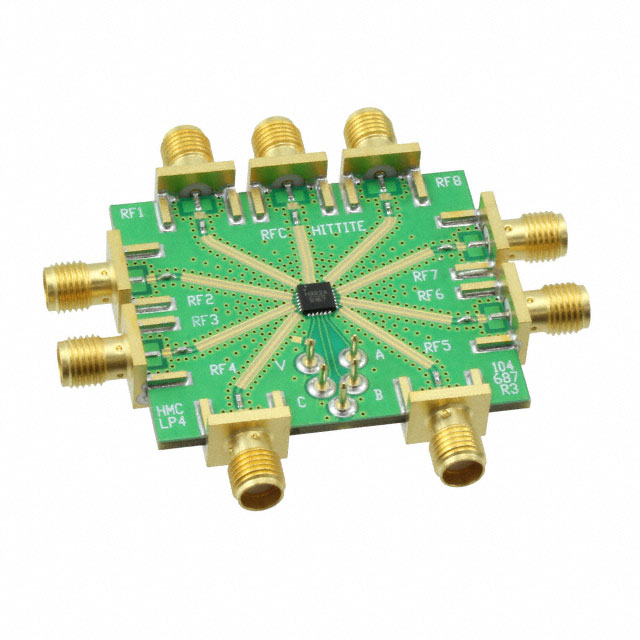

HMC322 / HMC322ALP4E / HMC322LP4
Key Features
• Broadband performance: DC to 10 GHz
• High isolation: >38 dB @ 4 GHz; >30 dB @ 6 GHz
• Low insertion loss: 2 dB @ 4 GHz; 2.4 dB @ 6 GHz
• Integrated 3:8 TTL decoder
• Small size: 1.45 mm x 1.6 mm x 0.10 mm
• 4 mm x 4 mm SMT package
Description
AI
The HMC322 is a broadband nonreflective GaAs MESFET SP8T switch chip and switch in a low cost leadless surface-mount package. Covering DC to 10 GHz, this switch offers high isolation and low insertion loss and extends the frequency coverage of the SP8T switch product line. This switch also includes an on-board binary decoder circuit, which reduces the required logic control lines to three. The switch operates using a negative control voltage of 0/−5 V and requires a fixed bias of −5 V. All data are tested with the chip in a 50 Ω test fixture connected via 0.025 mm (1 mil) diameter wire bonds of 0.5 mm (20 mils) length. This switch is suitable for usage in 50 Ω or 75 Ω systems.ApplicationsTelecom infrastructureMicrowave radios and VSATMilitary and spaceTest instrumentationBroadbandFiber opticsSwitched filter banksWireless below 8 GHz
