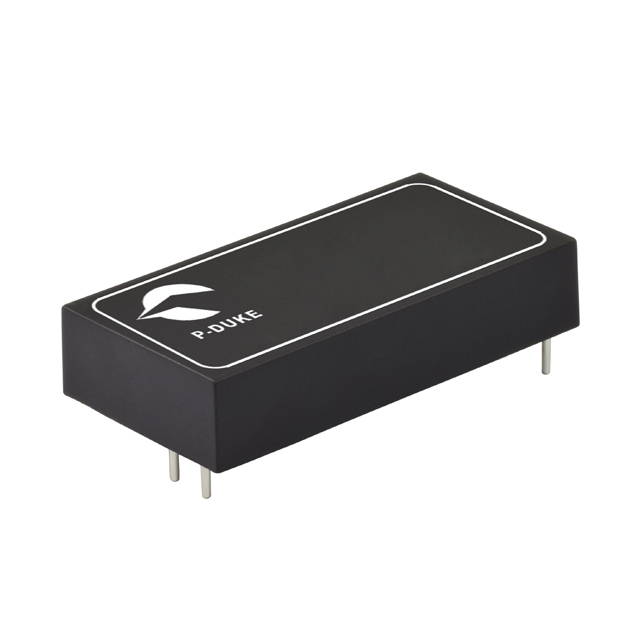

MPD30 Series

Catalog

DC DC CONVERTER 12V 30W

Part	Size / Dimension	Power (Watts)	Applications	Voltage - Input (Max) [Max]	Mounting Type	Type	Package / Case	Voltage - Input (Min) [Min]	Efficiency	Current - Output (Max) [Max]	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Features	Approval Agency	Voltage - Output 1	Voltage - Isolation
P-DUKE Technology MPD30-48S12W	0.4 in 10.2 mm 25.4 mm 50.8 mm	30 Watts	ITE (Commercial) Medical	75 V	Through Hole	Isolated Module	6-DIP Module 5 Leads	18 V	89 %	2.5 A	1	105 C	-40 °C	Adjustable Output	CB CE cURus FCC	12 V	5000 V
P-DUKE Technology MPD30-24S15W	0.4 in 10.2 mm 25.4 mm 50.8 mm	30 Watts	ITE (Commercial) Medical	36 V	Through Hole	Isolated Module	6-DIP Module 5 Leads	9 V	90.5 %	2 A	1	105 C	-40 °C	Adjustable Output	CB CE cURus FCC	15 V	5000 V
P-DUKE Technology MPD30-12S24	0.4 in 10.2 mm 25.4 mm 50.8 mm	30 Watts	ITE (Commercial) Medical	18 V	Through Hole	Isolated Module	6-DIP Module 5 Leads	9 V	89 %	1.25 A	1	105 C	-40 °C	Adjustable Output	CB CE cURus FCC	24 V	5000 V
P-DUKE Technology MPD30-24S24	0.4 in 10.2 mm 25.4 mm 50.8 mm	30 Watts	ITE (Commercial) Medical	36 V	Through Hole	Isolated Module	6-DIP Module 5 Leads	18 V		1.25 A	1	105 C	-40 °C	Adjustable Output	CB CE cURus FCC	24 V	5000 V
