IS181 Series

Catalog

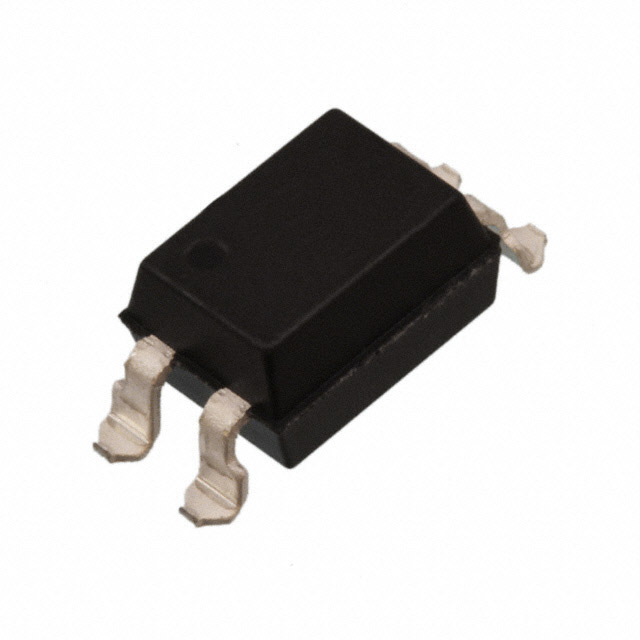

OPTOCPLR, TRANSISTOR, 1CH, 3.75KV, SMD4 ROHS COMPLIANT: YES

Part	Mounting Type	Input Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Current - Output / Channel [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Channels [custom]	Current Transfer Ratio (Max)	Current Transfer Ratio (Min)	Package / Case	Current - DC Forward (If) (Max) [Max]	Output Type	Vce Saturation (Max) [Max]	Voltage - Isolation	Voltage - Forward (Vf) (Typ)	Current Transfer Ratio (Min) [Min]	Current Transfer Ratio (Max) [Max]
Isocom Components 2004 LTD IS181C	Surface Mount	DC	4 µs	3 µs	50 mA	100 °C	-55 C	1	400 %	200 %	4-SMD Gull Wing	50 mA	Transistor	200 mV	3750 Vrms
Isocom Components 2004 LTD IS181GR	Surface Mount	DC	4 µs	3 µs	50 mA	100 °C	-55 C	1			4-SMD Gull Wing	50 mA	Transistor	200 mV	3750 Vrms	1.4 V	100 %	300 %
Isocom Components 2004 LTD IS181D	Surface Mount	DC	4 µs	3 µs	50 mA	100 °C	-55 C	1		300 %	4-SMD Gull Wing	50 mA	Transistor	200 mV	3750 Vrms			600 %
