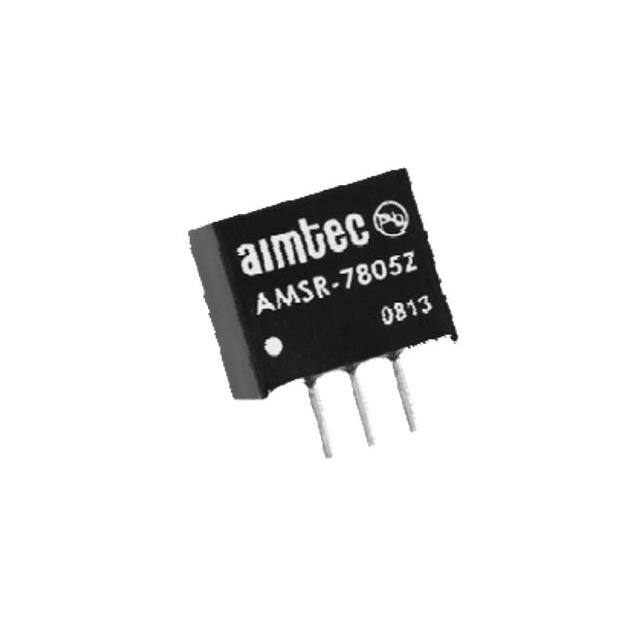

AMSR Series

Manufacturer: aimtec

Catalog

MODULE DC-DC 1-OUT 12V 0.5A 7.5W 3-PIN SIP TUBE

Part	Current - Output (Max) [Max]	Applications	Type	Voltage - Output 1	Power (Watts)	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Efficiency	Package / Case	Voltage - Input (Min) [Min]	Number of Outputs	Approval Agency	Voltage - Input (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]
aimtec AMSR-7812Z	500 mA	ITE (Commercial)	Non-Isolated PoL Module	12 V	6 W	10.2 mm	0.4 "	7.5 mm	0.29 in	0.46 in	11.7 mm	94 %	3-SIP Module	15 V	1	CE	34 V	Through Hole	85 °C	-40 C
aimtec AMSR-7815Z	500 mA	ITE (Commercial)	Non-Isolated PoL Module	15 V	7.5 W	10.2 mm	0.4 "	7.5 mm	0.29 in	0.46 in	11.7 mm	95 %	3-SIP Module	18 V	1	CE	34 V	Through Hole	85 °C	-40 C
aimtec AMSR-782.5Z	500 mA	ITE (Commercial)	Non-Isolated PoL Module	2.5 V	1.25 W	10.2 mm	0.4 "	7.5 mm	0.29 in	0.46 in	11.7 mm	76 %	3-SIP Module	4.75 V	1	CE	34 V	Through Hole	85 °C	-40 C

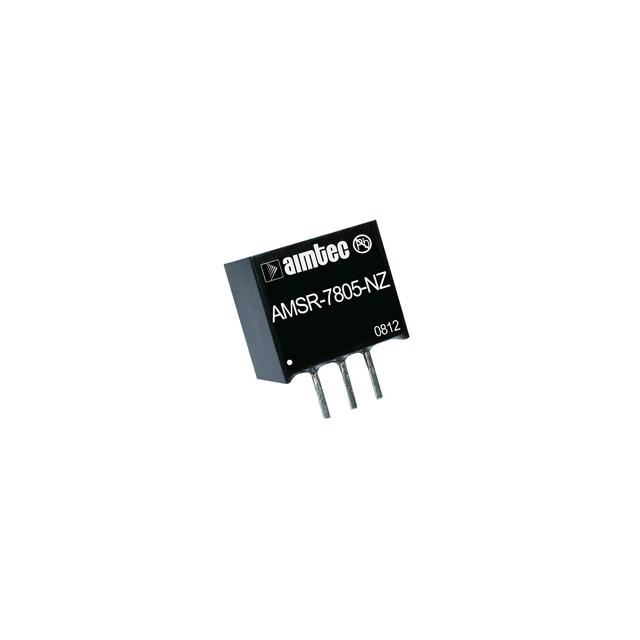

aimtec AMSR-7805-NZ	500 mA	ITE (Commercial)	Non-Isolated PoL Module	5 V		10.2 mm	0.4 "	7.6 mm	0.3 "	0.45 "	11.5 mm	86 %	3-SIP Module	6.5 V	1	CE	32 V	Through Hole	85 °C	-40 C
aimtec AMSR-786.5Z	500 mA	ITE (Commercial)	Non-Isolated PoL Module	6.5 V	3.25 W	10.2 mm	0.4 "	7.5 mm	0.29 in	0.46 in	11.7 mm	88 %	3-SIP Module	8 V	1	CE	34 V	Through Hole	85 °C	-40 C
