A3A-4PA Series

Catalog

CONN HEADER SMD 4POS 2MM

Part	Mated Stacking Heights [z]	Style	Contact Shape	Contact Finish - Mating	Voltage Rating	Insulation Height	Insulation Height	Mounting Type	Shrouding	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Features	Number of Positions	Contact Type	Number of Rows [custom]	Contact Length - Mating	Contact Length - Mating	Fastening Type	Number of Positions Loaded	Connector Type	Termination	Insulation Color	Insulation Material

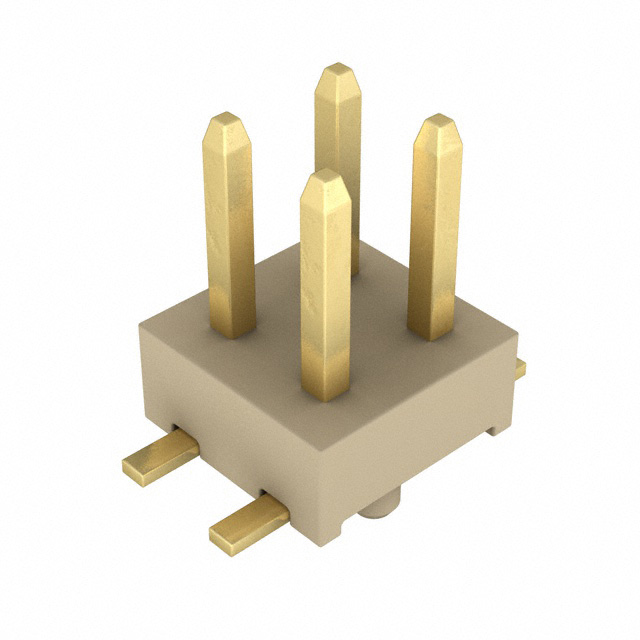

Hirose Electric Co Ltd A3A-4PA-2SV	6 mm 8.8 mm	Board to Board Cable	Square	Gold	200 V	1.8 mm	0.071 in	Surface Mount	Unshrouded	Brass	2 mm	0.079 in	-55 C	85 °C	0.079 "	2 mm	UL94 V-0	Board Guide	4	Male Pin	2	3.5 mm	0.138 in	Push-Pull	All	Header	Solder	Brown	Polyphenylene Sulfide (PPS)
