SIHD12 Series

Catalog

MOSFET N-CH 550V 10.5A DPAK

Part	Drive Voltage (Max Rds On, Min Rds On)	Mounting Type	Rds On (Max) @ Id, Vgs	Vgs(th) (Max) @ Id	Package / Case	Technology	Input Capacitance (Ciss) (Max) @ Vds	Operating Temperature [Min]	Operating Temperature [Max]	Current - Continuous Drain (Id) @ 25°C	Drain to Source Voltage (Vdss)	Supplier Device Package	Power Dissipation (Max) [Max]	FET Type	Gate Charge (Qg) (Max) @ Vgs [Max]	Vgs (Max)

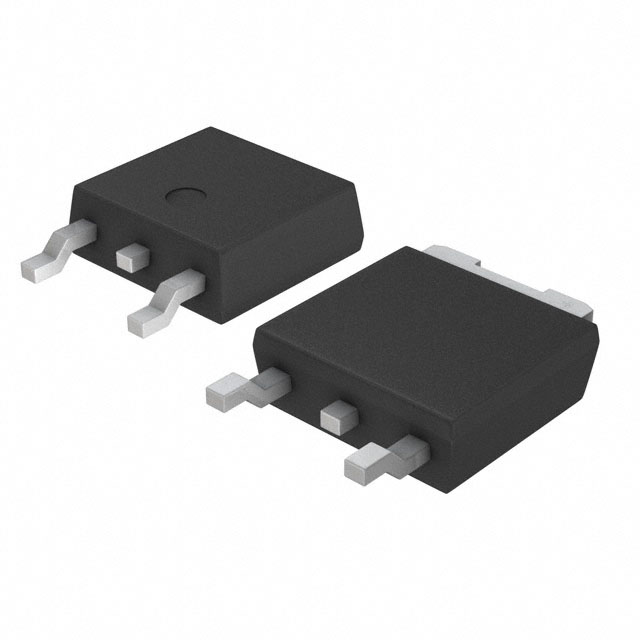

Vishay General Semiconductor - Diodes Division SIHD12N50E-GE3	10 V	Surface Mount	380 mOhm	4 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	MOSFET (Metal Oxide)	886 pF	-55 °C	150 °C	10.5 A	550 V	DPAK	114 W	N-Channel	50 nC	30 V
