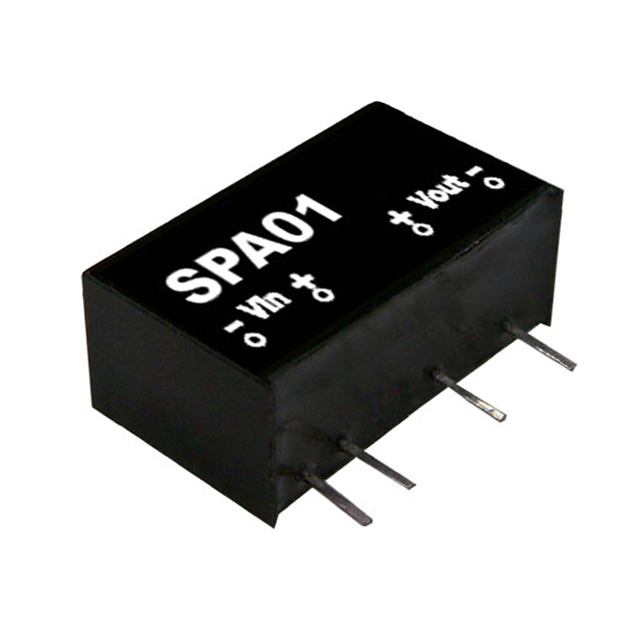

SPA01 Series

Catalog

DC DC CONVERTER 5V 1W

Part	Efficiency	Type	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Package / Case	Voltage - Output 1	Current - Output (Max) [Max]	Features	Voltage - Input (Min) [Min]	Voltage - Isolation	Mounting Type	Number of Outputs	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]
MEAN WELL USA Inc. SPA01C-05	77 %	Isolated Module	75 V	90 °C	-40 °C	ITE (Commercial)	6-SIP Module 4 Leads	5 V	200 mA	OCP SCP	36 V	1.5 kV	Through Hole	1	0.69 in	0.44 in	0.31 in	7.8 mm	11.1 mm	17.4 mm
MEAN WELL USA Inc. SPA01A-12	78 %	Isolated Module	18 V	90 °C	-40 °C	ITE (Commercial)	6-SIP Module 4 Leads	12 V	83 mA	OCP SCP	9 V	1.5 kV	Through Hole	1	0.69 in	0.44 in	0.31 in	7.8 mm	11.1 mm	17.4 mm
MEAN WELL USA Inc. SPA01C-12	78 %	Isolated Module	75 V	90 °C	-40 °C	ITE (Commercial)	6-SIP Module 4 Leads	12 V	83 mA	OCP SCP	36 V	1.5 kV	Through Hole	1	0.69 in	0.44 in	0.31 in	7.8 mm	11.1 mm	17.4 mm
MEAN WELL USA Inc. SPA01A-05	77 %	Isolated Module	18 V	90 °C	-40 °C	ITE (Commercial)	6-SIP Module 4 Leads	5 V	200 mA	OCP SCP	9 V	1.5 kV	Through Hole	1	0.69 in	0.44 in	0.31 in	7.8 mm	11.1 mm	17.4 mm
MEAN WELL USA Inc. SPA01B-15	79 %	Isolated Module	36 V	90 °C	-40 °C	ITE (Commercial)	6-SIP Module 4 Leads	15 V	67 mA	OCP SCP	18 V	1.5 kV	Through Hole	1	0.69 in	0.44 in	0.31 in	7.8 mm	11.1 mm	17.4 mm
