AD9609 Series
Manufacturer: Analog Devices
Beta
⌘K
10-BIT, 20 MSPS/40 MSPS/65 MSPS/80 MSPS, 1.8 V ANALOG-TO-DIGITAL CONVERTER
| Part | Input Type | Number of Inputs | Configuration | Operating Temperature [Max] | Operating Temperature [Min] | Sampling Rate (Per Second) | Supplier Device Package | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog [Min] | Number of Bits [custom] | Voltage - Supply, Digital [Min] | Voltage - Supply, Digital [Max] | Mounting Type | Architecture | Ratio - S/H:ADC | Reference Type | Number of A/D Converters | Data Interface | Package / Case | Sampling Rate (Per Second) | Supplied Contents | Utilized IC / Part | Power (Typ) @ Conditions | Input Range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices | Differential Single Ended | 1 | S/H-ADC | 85 °C | -40 °C | 80 M | 32-LFCSP-VQ (5x5) | 1.9 V | 1.7 V | 10 | 1.7 V | 1.9 V | Surface Mount | Pipelined | 1:1 | External Internal | 1 | Parallel | 32-VFQFN Exposed Pad CSP | |||||
 Analog Devices | Differential Single Ended | 1 | S/H-ADC | 85 °C | -40 °C | 32-LFCSP-VQ (5x5) | 1.9 V | 1.7 V | 10 | 1.7 V | 1.9 V | Surface Mount | Pipelined | 1:1 | External Internal | 1 | Parallel | 32-VFQFN Exposed Pad CSP | ||||||
Analog Devices | Differential Single Ended | 1 | S/H-ADC | 85 °C | -40 °C | 32-LFCSP-VQ (5x5) | 1.9 V | 1.7 V | 10 | 1.7 V | 1.9 V | Surface Mount | Pipelined | 1:1 | External Internal | 1 | Parallel | 32-VFQFN Exposed Pad CSP | 40M | |||||

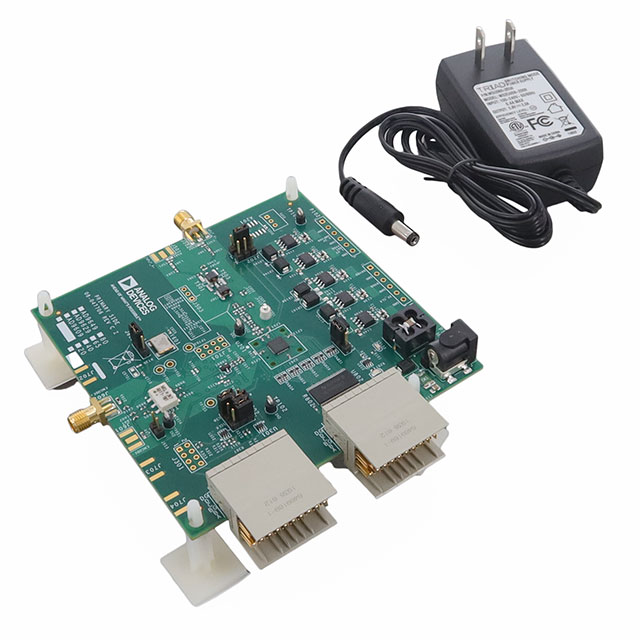

 Analog Devices | 80 M | 10 | 1 | SPI | Board(s) | AD9609 | 83 mW | 2 Vpp |
