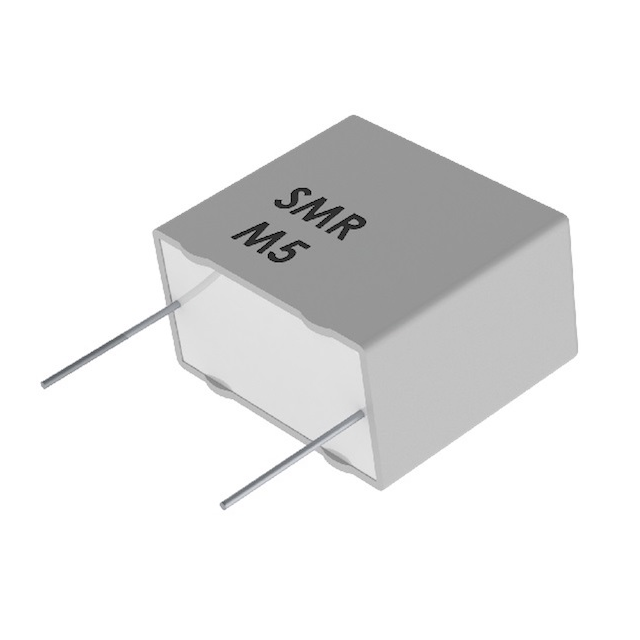

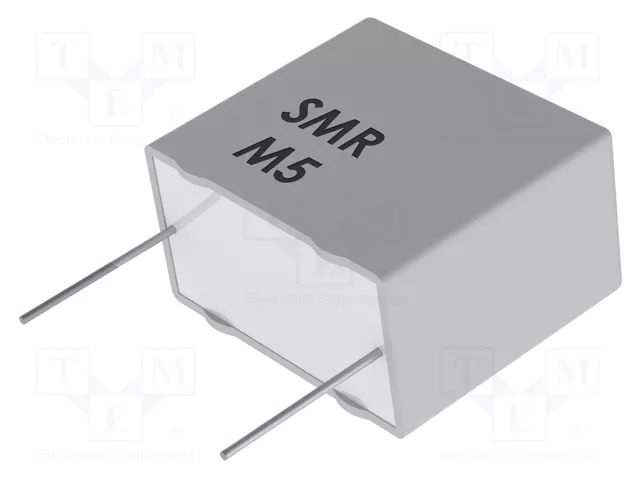

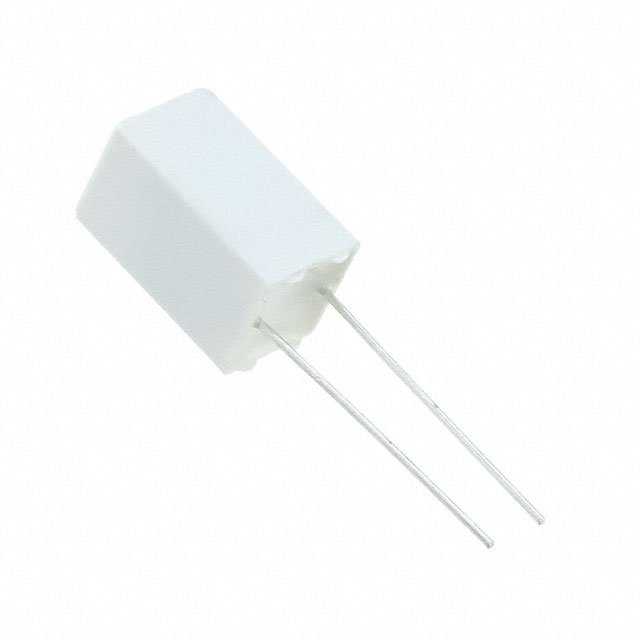

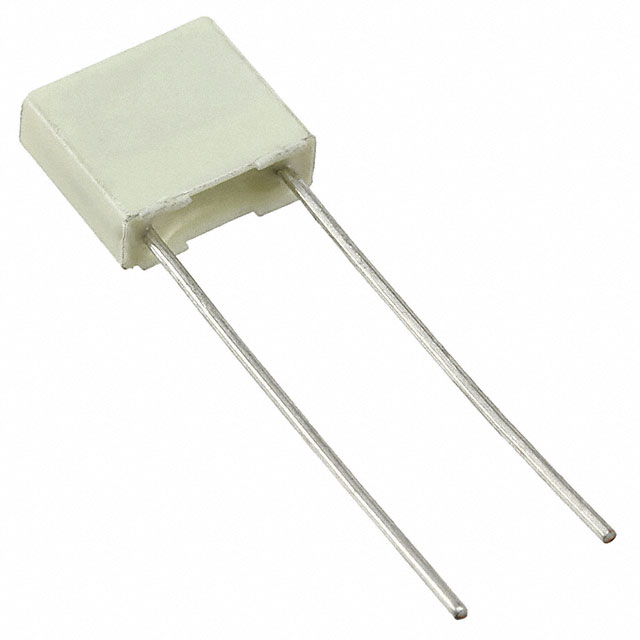

SMR5 Series

Manufacturer: KEMET

Catalog

CAP FILM 0.1UF 100V PPS 10% (7.2 X 4.5 X 9MM) RADIAL WOUND 5MM 150°C BULK

Part	Capacitance	Mounting Type	Lead Spacing	Lead Spacing	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Dielectric Material	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Applications	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Features	Package / Case	Voltage Rating - DC	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]
KEMET SMR5104K100J03L4BULK	100000 pF	Through Hole	0.197 "	5 mm	7.2 mm	0.283 "	4.5 mm	0.177 "	Polyphenylene Sulfide (PPS) Metallized	PC Pins	-55 C	150 °C	63 V	General Purpose	9 mm	0.354 in	10 %	High Temperature	Radial	100 V
KEMET SMR5224J100J06L16.5CBULK	0.22 µF	Through Hole	0.197 "	5 mm	7.2 mm	0.283 "	7.2 mm	0.283 in	Polyphenylene Sulfide (PPS) Metallized	PC Pins	-55 C	150 °C	63 V	General Purpose			5 %	High Temperature	Radial	100 V	0.512 "	13 mm
KEMET SMR5223J100J01L16.5CBULK	0.022 µF	Through Hole	0.197 "	5 mm	7.2 mm	0.283 "	2.5 mm	0.098 in	Polyphenylene Sulfide (PPS) Metallized	PC Pins	-55 C	150 °C	63 V	General Purpose	0.256 in		5 %	High Temperature	Radial	100 V			6.5 mm
KEMET SMR5472J100J01L16.5CBULK	0.0047 µF	Through Hole	0.197 "	5 mm	7.2 mm	0.283 "	2.5 mm	0.098 in	Polyphenylene Sulfide (PPS) Metallized	PC Pins	-55 C	150 °C	63 V	General Purpose	0.256 in		5 %	High Temperature	Radial	100 V			6.5 mm
KEMET SMR5683J100J03L4BULK	0.068 µF	Through Hole	0.197 "	5 mm	7.2 mm	0.283 "	4.5 mm	0.177 "	Polyphenylene Sulfide (PPS) Metallized	PC Pins	-55 C	150 °C	63 V	General Purpose	9 mm	0.354 in	5 %	High Temperature	Radial	100 V
KEMET SMR5822K250J01L4BULK		Through Hole	0.197 "	5 mm	7.2 mm	0.283 "	2.5 mm	0.098 in	Polyphenylene Sulfide (PPS) Metallized	PC Pins	-55 C	150 °C	160 V	General Purpose	0.256 in		10 %	High Temperature	Radial	250 V			6.5 mm

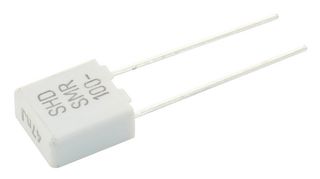

KEMET SMR5222J100J01L16.5CBULK	2200 pF	Through Hole	0.197 "	5 mm	7.2 mm	0.283 "	2.5 mm	0.098 in	Polyphenylene Sulfide (PPS) Metallized	PC Pins	-55 C	150 °C	63 V	General Purpose	0.256 in		5 %	High Temperature	Radial	100 V			6.5 mm
KEMET SMR5222J63J01L16.5CBULK	2200 pF	Through Hole	0.197 "	5 mm	7.2 mm	0.283 "	2.5 mm	0.098 in	Polyphenylene Sulfide (PPS) Metallized	PC Pins	-55 C	150 °C	40 V	General Purpose	0.256 in		5 %	High Temperature	Radial	63 VDC			6.5 mm
KEMET SMR5105K50J06L4BULK	1 µF	Through Hole	0.197 "	5 mm	7.2 mm	0.283 "	7.2 mm	0.283 in	Polyphenylene Sulfide (PPS) Metallized	PC Pins	-55 C	150 °C	30 V	General Purpose			10 %	High Temperature	Radial	50 VDC	0.512 "	13 mm
KEMET SMR5333K100J01L4BULK	0.033 çF	Through Hole	0.197 "	5 mm	7.2 mm	0.283 "	2.5 mm	0.098 in	Polyphenylene Sulfide (PPS) Metallized	PC Pins	-55 C	150 °C	63 V	General Purpose	0.256 in		10 %	High Temperature	Radial	100 V			6.5 mm
