SFW18R Series

Catalog

CONN FFC FPC BOTTOM 18POS 1MM RA

Part	Mating Cycles	Actuator Color	Housing Color	Flat Flex Type	Cable End Type	Mounting Type	Contact Finish	Actuator Material	Operating Temperature [Min]	Operating Temperature [Max]	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]	Connector/Contact Type	Contact Material	Voltage Rating	Termination	Number of Positions	Pitch	Pitch	Housing Material	Locking Feature	Material Flammability Rating	Height Above Board [z]	Height Above Board [z]	Features	FFC, FCB Thickness
Amphenol ICC (FCI) SFW18R-1STE1HLF	20	Black	Black	FFC FPC	Straight Tapered	Right Angle Surface Mount	Tin	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	-55 C	105 ░C	0.3 mm	0.33 mm	Contacts Bottom	Phosphor Bronze	100 V	Solder	18	1 mm	0.039 in	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Slide Lock	UL94 V-0	0.106 in	2.7 mm
Amphenol ICC (FCI) SFW18R-7STE1LF				CIC		Right Angle Surface Mount	Tin						Contacts Bottom			Solder	18	1 mm	0.039 in		Slide Lock		0.106 in	2.7 mm

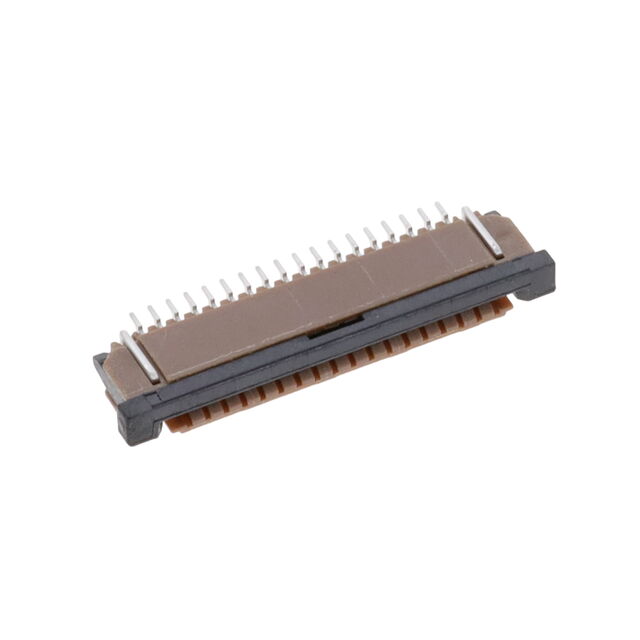

Amphenol ICC (FCI) SFW18R-2STE1LF	20	Black	Brown	FFC FPC	Straight	Right Angle Surface Mount	Tin	Polyphenylene Sulfide (PPS) Glass Filled	-55 C	105 ░C			Contacts Top	Phosphor Bronze	100 V	Solder	18	1 mm	0.039 in	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	UL94 V-0	0.106 in	2.7 mm	Solder Retention Zero Insertion Force (ZIF)	0.3 mm
Amphenol ICC (FCI) SFW18R-1STAE5LF		Black	Brown	FPC	Tapered	Right Angle Surface Mount	Gold	Polyphenylene Sulfide (PPS) Glass Filled					Contacts Bottom	Phosphor Bronze		Solder	18	1 mm	0.039 in	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	UL94 V-0	0.106 in	2.7 mm		0.33 mm
Amphenol ICC (FCI) SFW18R-4STAE9LF		Brown	Black	FPC	Notched	Right Angle Surface Mount	Gold	Polyphenylene Sulfide (PPS) Glass Filled	-55 C	105 ░C			Contacts Top	Phosphor Bronze	100 V	Solder	18	1 mm	0.039 in	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	UL94 V-0	0.106 in	2.7 mm		0.33 mm
Amphenol ICC (FCI) SFW18R-2STGE1LF	20	Black	Brown	FPC	Tapered	Right Angle Surface Mount	Gold	Polyphenylene Sulfide (PPS) Glass Filled	-55 C	105 ░C			Contacts Top	Phosphor Bronze	100 V	Solder	18	1 mm	0.039 in	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	UL94 V-0	0.106 in	2.7 mm		0.33 mm
Amphenol ICC (FCI) SFW18R-2STAE5LF		Black	Brown	FPC	Tapered	Right Angle Surface Mount	Gold	Polyphenylene Sulfide (PPS) Glass Filled					Contacts Top	Phosphor Bronze		Solder	18	1 mm	0.039 in	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	UL94 V-0	0.106 in	2.7 mm		0.33 mm

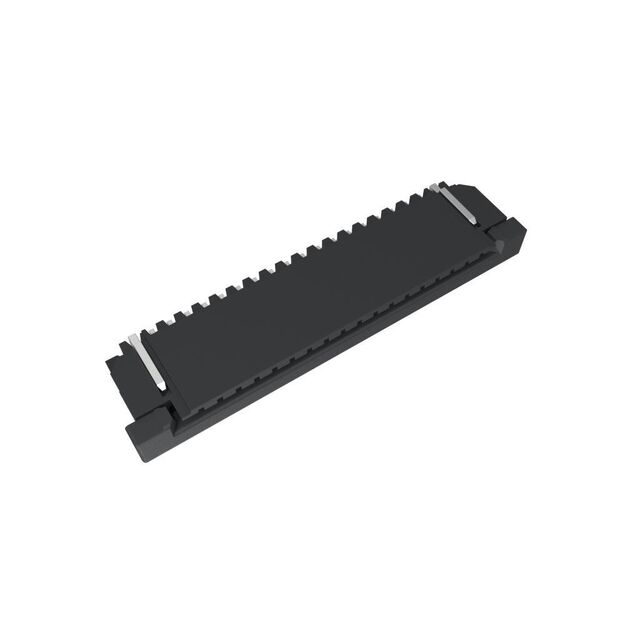

Amphenol ICC (FCI) SFW18R-6STE1LF	10	Black	Brown	CIC	Tapered	Right Angle Surface Mount	Tin	Polyphenylene Sulfide (PPS) Glass Filled	-55 C	105 ░C			Contacts Top	Phosphor Bronze	100 V	Solder	18	1 mm	0.039 in	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	UL94 V-0	0.106 in	2.7 mm		0.3 mm
Amphenol ICC (FCI) SFW18R-3STE1LF	20	Black	Black	FFC FPC	Straight	Right Angle Surface Mount	Tin	Polyphenylene Sulfide (PPS) Glass Filled	-55 C	105 ░C			Contacts Bottom	Phosphor Bronze	100 V	Solder	18	1 mm	0.039 in	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	UL94 V-0	0.106 in	2.7 mm	Solder Retention Zero Insertion Force (ZIF)	0.3 mm
Amphenol ICC (FCI) SFW18R-4STE1LF	20	Brown	Black	FFC FPC	Notched Tapered	Right Angle Surface Mount	Tin	Polyphenylene Sulfide (PPS) Glass Filled	-55 C	105 ░C	0.3 mm	0.33 mm	Contacts Top	Phosphor Bronze	100 V	Solder	18	1 mm	0.039 in	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	UL94 V-0	0.106 in	2.7 mm	Solder Retention Zero Insertion Force (ZIF)
