A17713 Series

Manufacturer: Laird Technologies - Thermal Materials

Catalog

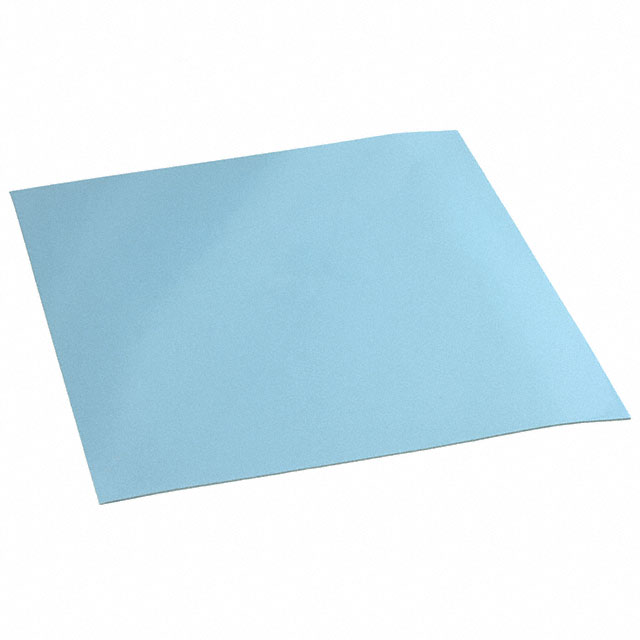

THERM PAD 228.6MMX228.6MM BLUE

Part	Shelf Life Start	Shelf Life	Adhesive	Type	Outline [y]	Outline [x]	Material	Color	Shape	Thickness	Thickness	Thermal Conductivity
Laird Technologies - Thermal Materials A17713-04	Date of Certification	24 Months	Tacky - Both Sides	Gap Filler Pad Sheet	228.6 mm	228.6 mm	Silicone Ceramic Filled	Blue	Square	1.016 mm	0.04 in	4 W/m-K
Laird Technologies - Thermal Materials A17713-03	Date of Certification	24 Months	Tacky - Both Sides	Gap Filler Pad Sheet	228.6 mm	228.6 mm	Silicone Ceramic Filled	Blue	Square	0.762 mm	0.03 in	4 W/m-K
Laird Technologies - Thermal Materials A17713-18	Date of Certification	24 Months	Tacky - Both Sides	Gap Filler Pad Sheet	228.6 mm	228.6 mm	Silicone Ceramic Filled	Blue	Square	4.57 mm	0.18 in	4 W/m-K
Laird Technologies - Thermal Materials A17713-11	Date of Certification	24 Months	Tacky - Both Sides	Gap Filler Pad Sheet	228.6 mm	228.6 mm	Silicone Ceramic Filled	Blue	Square	2.79 mm	0.11 in	4 W/m-K
Laird Technologies - Thermal Materials A17713-13	Date of Certification	24 Months	Tacky - Both Sides	Gap Filler Pad Sheet	228.6 mm	228.6 mm	Silicone Ceramic Filled	Blue	Square	3.3 mm	0.13 in	4 W/m-K
Laird Technologies - Thermal Materials A17713-20	Date of Certification	24 Months	Tacky - Both Sides	Gap Filler Pad Sheet	228.6 mm	228.6 mm	Silicone Ceramic Filled	Blue	Square	200 mils	0.2 "	4 W/m-K
Laird Technologies - Thermal Materials A17713-10	Date of Certification	24 Months	Tacky - Both Sides	Gap Filler Pad Sheet	228.6 mm	228.6 mm	Silicone Ceramic Filled	Blue	Square	2.54 mm	0.1 in	4 W/m-K
Laird Technologies - Thermal Materials A17713-08	Date of Certification	24 Months	Tacky - Both Sides	Gap Filler Pad Sheet	228.6 mm	228.6 mm	Silicone Ceramic Filled	Blue	Square	80 mils	0.08 in	4 W/m-K
Laird Technologies - Thermal Materials A17713-06	Date of Certification	24 Months	Tacky - Both Sides	Gap Filler Pad Sheet	228.6 mm	228.6 mm	Silicone Ceramic Filled	Blue	Square	1.524 mm	0.06 in	4 W/m-K
Laird Technologies - Thermal Materials A17713-02	Date of Certification	24 Months	Tacky - Both Sides	Gap Filler Pad Sheet	228.6 mm	228.6 mm	Silicone Ceramic Filled	Blue	Square	0.508 mm	0.02 in	4 W/m-K
