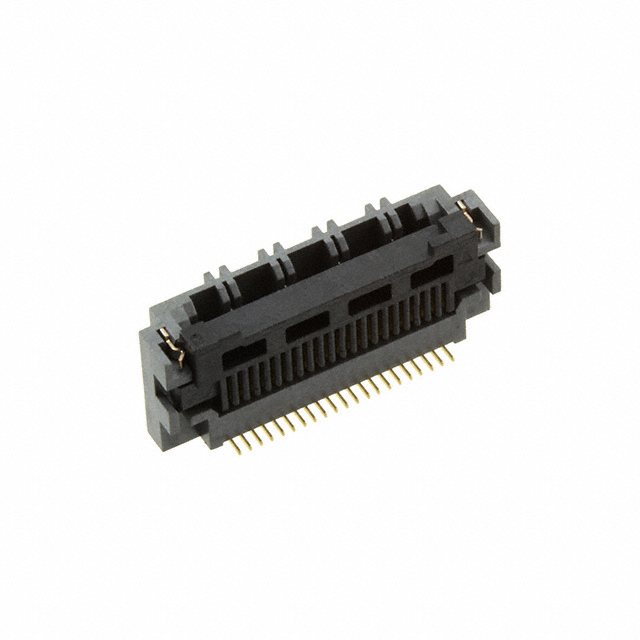

FH48 Series

Catalog

CONN FFC VERT 21POS 0.5MM SMD

Part	Current Rating (Amps)	Housing Color	Actuator Color	Voltage Rating	Height Above Board [z]	Height Above Board [z]	Connector/Contact Type	Cable End Type	Flat Flex Type	Locking Feature	FFC, FCB Thickness	Contact Material	Features	Number of Positions	Housing Material	Pitch	Pitch	Actuator Material	Mounting Type	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Termination
Hirose Electric Co Ltd FH48-21S-0.5SV	0.5 A	Gray	Black	50 V	6.18 mm	0.243 "	Contacts Vertical - 1 Sided	Tabbed	FFC	Flip Lock	0.3 mm	Phosphor Bronze	Low Insertion Force (LIF)	21	Liquid Crystal Polymer (LCP) Halogen Free	0.02 "	0.5 mm	Liquid Crystal Polymer (LCP) Halogen Free	Surface Mount	UL94 V-0	85 °C	-40 C	Solder
Hirose Electric Co Ltd FH48-40S-0.5SV				50 V	6.18 mm	0.243 "	Contacts Vertical - 1 Sided	Tabbed	FFC	Flip Lock	0.3 mm	Phosphor Bronze	Low Insertion Force (LIF)	40	Liquid Crystal Polymer (LCP) Halogen Free	0.02 "	0.5 mm	Liquid Crystal Polymer (LCP) Halogen Free	Surface Mount	UL94 V-0	85 °C	-40 C	Solder

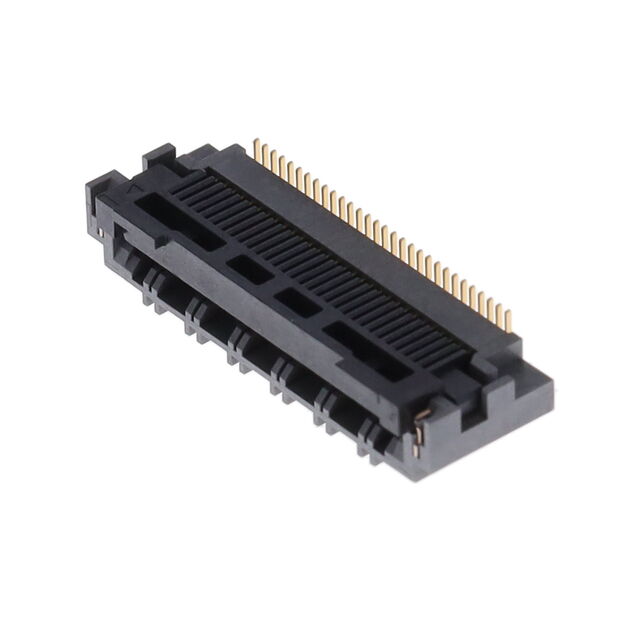

Hirose Electric Co Ltd FH48-30S-0.5SV	0.5 A	Gray	Black	50 V	6.18 mm	0.243 "	Contacts Vertical - 1 Sided	Tabbed	FFC	Flip Lock	0.3 mm	Phosphor Bronze	Low Insertion Force (LIF)	30	Liquid Crystal Polymer (LCP) Halogen Free	0.02 "	0.5 mm	Liquid Crystal Polymer (LCP) Halogen Free	Surface Mount	UL94 V-0	85 °C	-40 C	Solder

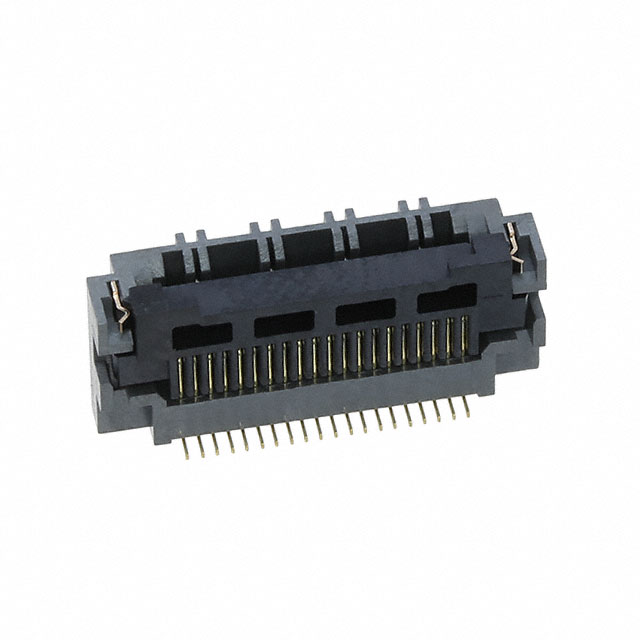

Hirose Electric Co Ltd FH48-20S-0.5SV	0.5 A	Gray	Black	50 V	6.18 mm	0.243 "	Contacts Vertical - 1 Sided	Tabbed	FFC	Flip Lock	0.3 mm	Phosphor Bronze	Low Insertion Force (LIF)	20	Liquid Crystal Polymer (LCP) Halogen Free	0.02 "	0.5 mm	Liquid Crystal Polymer (LCP) Halogen Free	Surface Mount	UL94 V-0	85 °C	-40 C	Solder

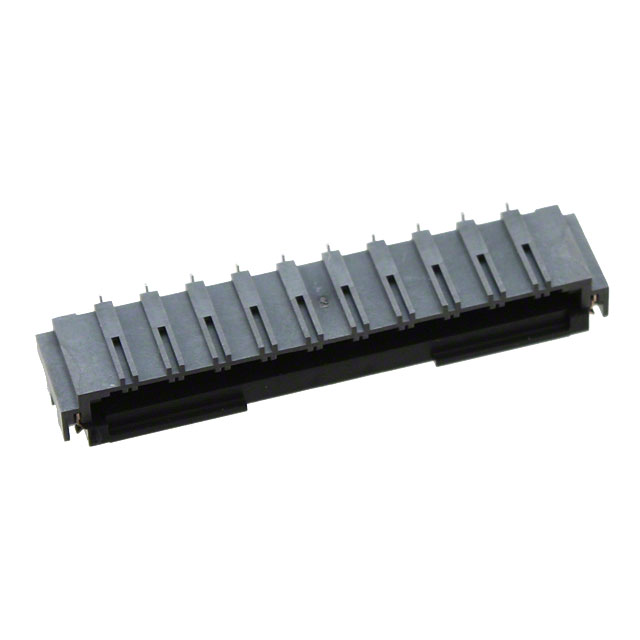

Hirose Electric Co Ltd FH48-50S-0.5SV	0.5 A	Gray	Black	50 V	6.18 mm	0.243 "	Contacts Vertical - 1 Sided	Tabbed	FFC	Flip Lock	0.3 mm	Phosphor Bronze	Low Insertion Force (LIF)	50	Liquid Crystal Polymer (LCP) Halogen Free	0.02 "	0.5 mm	Liquid Crystal Polymer (LCP) Halogen Free	Surface Mount	UL94 V-0	85 °C	-40 C	Solder
