AMEL2 Series

Manufacturer: aimtec

Catalog

AC/DC CONVERTER 9V 2W

Part	Line Regulation	Voltage - Input [Max]	Voltage - Input [Min]	Efficiency	Current - Output (Max) [Max]	Type	Number of Outputs	Package / Case	Applications	Load Regulation	Mounting Type	Voltage - Output 1	Power (Watts)	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Isolation	Input Type	Features	Size / Dimension [z]	Size / Dimension [y]	Standard Number	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Current - Output 1
aimtec AMEL2-9S277NZ	2 %	305 VAC	85 VAC	72 %	222 mA	Enclosed	1	4-DIP Module	ITE (Commercial)	±5%	Through Hole	9 V	2 W	0.71 in	18 mm	0.87 in	22.2 mm	1.33 in	33.7 mm
aimtec AMEL2-12S277NZ	2 %	305 VAC	85 VAC	76 %	167 mA	Enclosed	1	4-DIP Module	ITE (Commercial)	±5%	Through Hole	12 V	2 W	0.71 in	18 mm	0.87 in	22.2 mm	1.33 in	33.7 mm
aimtec AMEL2-24S277NZ	2 %	305 VAC	85 VAC	78 %	83 mA	Enclosed	1	4-DIP Module	ITE (Commercial)	±5%	Through Hole	24 V	2 W	0.71 in	18 mm	0.87 in	22.2 mm	1.33 in	33.7 mm
aimtec AMEL2-15S277NZ	2 %	305 VAC	85 VAC	76 %	133 mA	Enclosed	1	4-DIP Module	ITE (Commercial)	±5%	Through Hole	15 V	2 W	0.71 in	18 mm	0.87 in	22.2 mm	1.33 in	33.7 mm
aimtec AMEL2-5S277NZ-STD				70 %	400 mA		1		ITE (Commercial)			5 V	2 W	1.24 "		1.24 in		2.99 in	76 mm	4000 V	AC	Universal Input	31.4 mm	31.5 mm	62368-1	305 VAC	85 VAC
aimtec AMEL2-3.3S277NZ	2 %	305 VAC	85 VAC	65 %	600 mA	Enclosed	1	4-DIP Module	ITE (Commercial)	±5%	Through Hole	3.3 V	2 W	0.71 in	18 mm	0.87 in	22.2 mm	1.33 in	33.7 mm

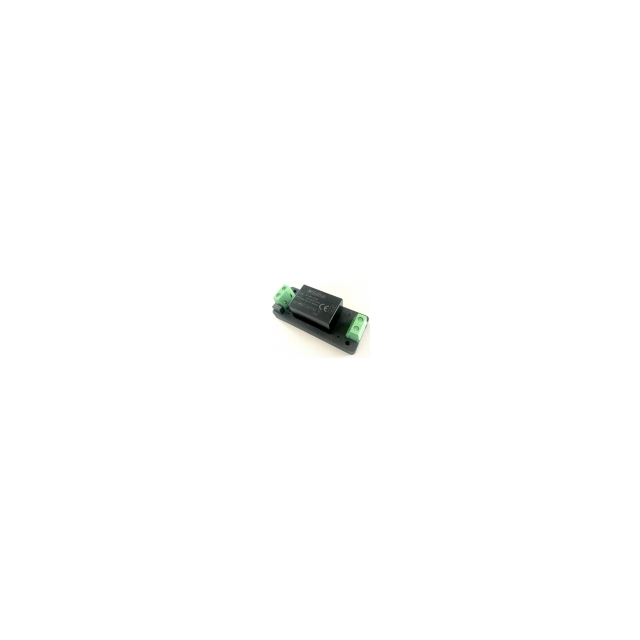

aimtec AMEL2-5S277NZ-ST		305 VAC	85 VAC	70 %		Enclosed	1		ITE (Commercial)		Chassis Mount	5 V	2 W	1.06 in		1.24 in		2.99 in	76 mm	4000 V		Universal Input	26.8 mm	31.5 mm	62368-1			400 mA
