TSX9291 Series
Manufacturer: STMicroelectronics
Beta
⌘K
LARGE BANDWIDTH (16MHZ), RAIL-TO-RAIL 16V CMOS OP-AMP, SINGLE
| Part | Voltage - Supply Span (Max) [Max] | Qualification | Amplifier Type | Voltage - Supply Span (Min) [Min] [custom] | Package / Case | Output Type | Number of Circuits | Current - Supply | Operating Temperature [Max] | Operating Temperature [Min] | Gain Bandwidth Product | Voltage - Input Offset | Current - Output / Channel | Grade | Mounting Type | Slew Rate | Supplier Device Package | Current - Input Bias |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

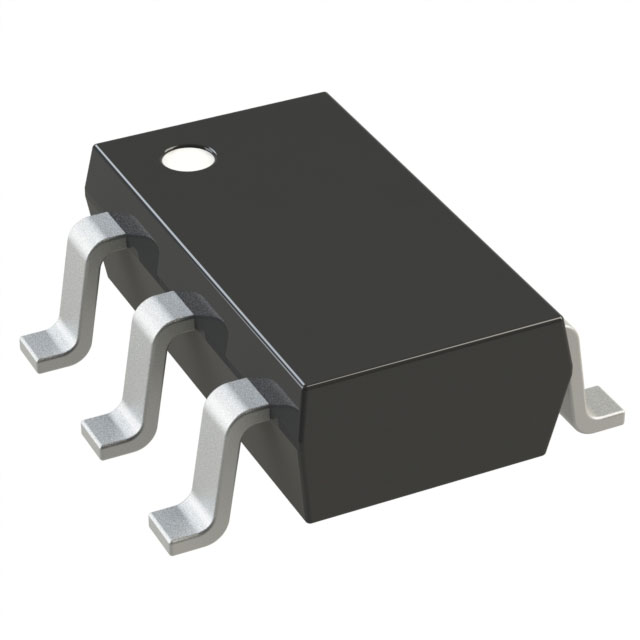

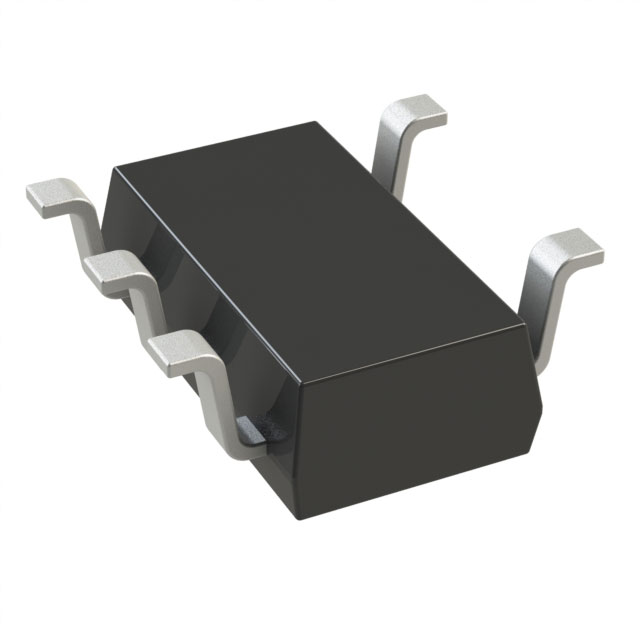

 STMicroelectronics | 16 V | AEC-Q100 | General Purpose | 4 V | SC-74A SOT-753 | Rail-to-Rail | 1 | 2.8 mA | 125 °C | -40 C | 16 MHz | 4 mV | 74 mA | Automotive | Surface Mount | 27 V/µs | SOT-23-5 | 10 pA |
 STMicroelectronics | 16 V | General Purpose | 4 V | SC-74A SOT-753 | Rail-to-Rail | 1 | 2.8 mA | 125 °C | -40 C | 16 MHz | 4 mV | 74 mA | Surface Mount | 27 V/µs | SOT-23-5 | 10 pA |
