HIF3CA Series

Catalog

CONN HEADER VERT 50POS 2.54MM

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Contact Length - Post	Contact Length - Post	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating	Contact Length - Mating	Overall Contact Length	Overall Contact Length	Contact Finish - Mating	Contact Material	Insulation Material	Number of Positions Loaded	Mounting Type	Number of Positions	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Insulation Height [z]	Insulation Height [z]	Termination	Contact Finish - Post	Style	Connector Type	Features	Fastening Type	Pitch - Mating	Pitch - Mating	Number of Rows [custom]	Shrouding	Voltage Rating	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions [custom]	Current Rating (Amps)
Hirose Electric Co Ltd HIF3CA-50PA-2.54DSA(71)	78.7 µin	2 µm	0.13 "	3.3 mm	Male Pin	0.1 in	2.54 mm	6 mm	0.236 in	16.7 mm	0.657 in	Gold	Brass	Polybutylene Terephthalate (PBT)	All	Through Hole	50	Black	8 µin	0.203 µm	Square	0.701 in	17.8 mm	Solder	Tin	Board to Cable/Wire	Header	Keying Slot	Latch Lock/Eject Hooks	0.1 "	2.54 mm	2	Shrouded - 4 Wall	200 V	UL94 V-0	-55 C	85 °C

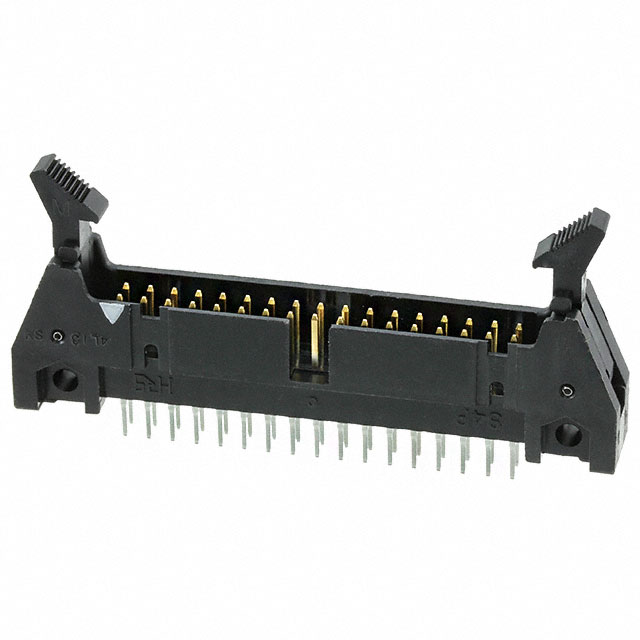

Hirose Electric Co Ltd HIF3CA-34PA-2.54DSA(71)	78.7 µin	2 µm	0.13 "	3.3 mm	Male Pin	0.1 in	2.54 mm	6 mm	0.236 in	16.7 mm	0.657 in	Gold	Brass	Polybutylene Terephthalate (PBT)	All	Through Hole		Black	8 µin	0.203 µm	Square	0.701 in	17.8 mm	Solder	Tin	Board to Cable/Wire	Header	Keying Slot	Latch Lock/Eject Hooks	0.1 "	2.54 mm	2	Shrouded - 4 Wall	200 V	UL94 V-0	-55 C	85 °C	34
Hirose Electric Co Ltd HIF3CA-30PA-2.54DSA(63)	78.7 µin	2 µm	0.13 "	3.3 mm	Male Pin	0.1 in	2.54 mm					Gold	Brass	Polybutylene Terephthalate (PBT)	All	Through Hole	30	Black	8 µin	0.203 µm	Square	0.701 in	17.8 mm	Solder	Tin	Board to Cable/Wire	Header	Keying Slot	Latch Lock/Eject Hooks	0.1 "	2.54 mm	2	Shrouded - 4 Wall	200 V	UL94 V-0	-55 C	85 °C		Varies by Wire Gauge
Hirose Electric Co Ltd HIF3CA-30PA-2.54DSA(71)	78.7 µin	2 µm	0.13 "	3.3 mm	Male Pin	0.1 in	2.54 mm	6 mm	0.236 in	16.7 mm	0.657 in	Gold	Brass	Polybutylene Terephthalate (PBT)	All	Through Hole	30	Black	8 µin	0.203 µm	Square	0.701 in	17.8 mm	Solder	Tin	Board to Cable/Wire	Header	Keying Slot	Latch Lock/Eject Hooks	0.1 "	2.54 mm	2	Shrouded - 4 Wall	200 V	UL94 V-0	-55 C	85 °C
Hirose Electric Co Ltd HIF3CA-40PA-2.54DSA(63)	78.7 µin	2 µm	0.13 "	3.3 mm	Male Pin	0.1 in	2.54 mm					Gold	Brass	Polybutylene Terephthalate (PBT)	All	Through Hole	40	Black	8 µin	0.203 µm	Square	0.701 in	17.8 mm	Solder	Tin	Board to Cable/Wire	Header	Keying Slot	Latch Lock/Eject Hooks	0.1 "	2.54 mm	2	Shrouded - 4 Wall	200 V	UL94 V-0	-55 C	85 °C		Varies by Wire Gauge
Hirose Electric Co Ltd HIF3CA-30PA-2.54DSA(91)			0.13 "	3.3 mm	Male Pin	0.1 in	2.54 mm	6 mm	0.236 in	16.7 mm	0.657 in	Gold	Brass	Polybutylene Terephthalate (PBT)	All	Through Hole	30		8 µin	0.203 µm	Square	0.701 in	17.8 mm	Solder		Board to Cable/Wire	Header	Keying Slot	Latch Lock/Eject Hooks	0.1 "	2.54 mm	2	Shrouded - 4 Wall	200 V	UL94 V-0	-55 C	85 °C
Hirose Electric Co Ltd HIF3CA-34PA-2.54DSA(63)	78.7 µin	2 µm	0.13 "	3.3 mm	Male Pin	0.1 in	2.54 mm					Gold	Brass	Polybutylene Terephthalate (PBT)	All	Through Hole		Black	8 µin	0.203 µm	Square	0.701 in	17.8 mm	Solder	Tin	Board to Cable/Wire	Header	Keying Slot	Latch Lock/Eject Hooks	0.1 "	2.54 mm	2	Shrouded - 4 Wall	200 V	UL94 V-0	-55 C	85 °C	34	Varies by Wire Gauge
Hirose Electric Co Ltd HIF3CA-50PA-2.54DSA(63)	78.7 µin	2 µm	0.13 "	3.3 mm	Male Pin	0.1 in	2.54 mm					Gold	Brass	Polybutylene Terephthalate (PBT)	All	Through Hole	50	Black	8 µin	0.203 µm	Square	0.701 in	17.8 mm	Solder	Tin	Board to Cable/Wire	Header	Keying Slot	Latch Lock/Eject Hooks	0.1 "	2.54 mm	2	Shrouded - 4 Wall	200 V	UL94 V-0	-55 C	85 °C		Varies by Wire Gauge
Hirose Electric Co Ltd HIF3CA-20PA-2.54DSA(91)			0.13 "	3.3 mm	Male Pin	0.1 in	2.54 mm	6 mm	0.236 in	16.7 mm	0.657 in	Gold	Brass	Polybutylene Terephthalate (PBT)	All	Through Hole	20		8 µin	0.203 µm	Square	0.701 in	17.8 mm	Solder		Board to Cable/Wire	Header	Keying Slot	Latch Lock/Eject Hooks	0.1 "	2.54 mm	2	Shrouded - 4 Wall	200 V	UL94 V-0	-55 C	85 °C
Hirose Electric Co Ltd HIF3CA-10PA-2.54DSA(71)	78.7 µin	2 µm	0.13 "	3.3 mm	Male Pin	0.1 in	2.54 mm	6 mm	0.236 in	16.7 mm	0.657 in	Gold	Brass	Polybutylene Terephthalate (PBT)	All	Through Hole	10	Black	8 µin	0.203 µm	Square	0.701 in	17.8 mm	Solder	Tin	Board to Cable/Wire	Header	Keying Slot	Latch Lock/Eject Hooks	0.1 "	2.54 mm	2	Shrouded - 4 Wall	200 V	UL94 V-0	-55 C	85 °C
