ATA6625C Series

LIN System Basis Chip Including 5V Voltage Regulator (not recommended for new designs)

Catalog

LIN System Basis Chip Including 5V Voltage Regulator (not recommended for new designs)

Part	Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Supplier Device Package	Package / Case	Package / Case [y]	Package / Case [x]	Protocol	Qualification	Operating Temperature [Max]	Operating Temperature [Min]	Receiver Hysteresis	Duplex	Grade
Microchip Technology ATA6625-TAQY 19	Transceiver	27 V	5 V	Surface Mount	8-SO	8-SOIC	3.9 mm	0.154 in	LINbus
Microchip Technology ATA6625-TAPY	Transceiver	27 V	5 V	Surface Mount	8-SO	8-SOIC	3.9 mm	0.154 in	LINbus
Microchip Technology ATA6625C-GAQW	Transceiver	27 V	5 V	Surface Mount	8-SO	8-SOIC	3.9 mm	0.154 in	LINbus
Microchip Technology ATA6625-TAQY	Transceiver	27 V	5 V	Surface Mount	8-SO	8-SOIC	3.9 mm	0.154 in	LINbus

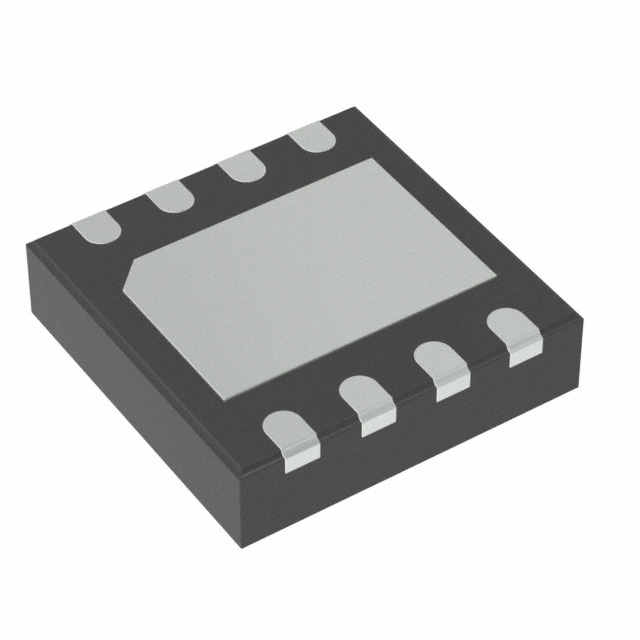

Microchip Technology ATA6625-GBQW	Transceiver	28 V	5 V	Surface Mount	8-VDFN (3x3)	8-VDFN Exposed Pad			LIN	AEC-Q100	150 °C	-40 °C	250 mV	Half	Automotive
Microchip Technology ATA6625-GAQW	Transceiver	27 V	5 V	Surface Mount	8-SO	8-SOIC	3.9 mm	0.154 in	LINbus

Catalog

LIN System Basis Chip Including 5V Voltage Regulator (not recommended for new designs)

Key Features

• undefined

Description

Fully integrated LIN specification 2.0 and 2.1 -compliant transceiver with a low-drop voltage regulator for 5.0V/50mA output. The combination of voltage regulator and bus transceiver makes it possible to develop simple, but powerful, slave nodes in LIN Bus systems. The device is designed to handle low-speed data communication in vehicles and in convenience electronics. Improved slope control at the LIN-driver ensures secure data communication up to 20kBaud with an RC oscillator for the protocol handling. Sleep mode (voltage regulator switched off) and silent mode (communication off; VCC voltage on) features guarantee minimal current consumption.
