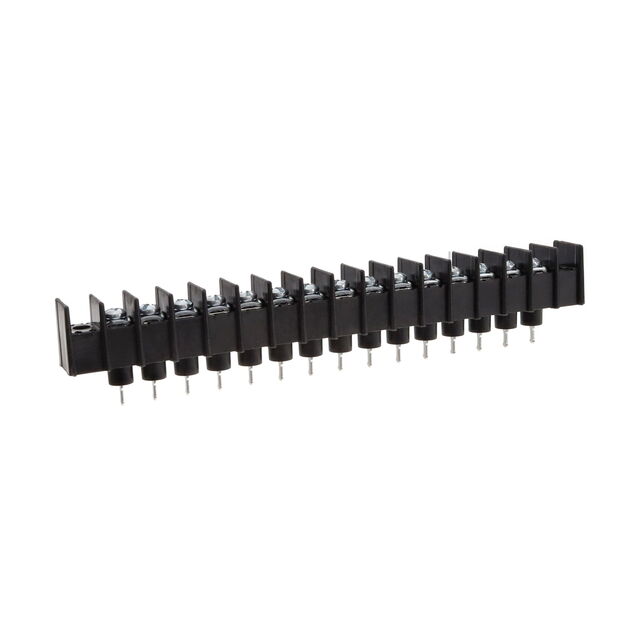

T38421 Series
Manufacturer: Curtis Industries
Beta
⌘K
CONN BARRIER STRP 23CIRC 0.375"
| Part | Operating Temperature | Mounting Type | Material Flammability Rating | Material - Insulation | Number of Wire Entries | Pitch | Pitch | Number of Rows | Current Rating (Amps) | Bottom Termination | Features | Barrier Type | Terminal Block Type | Wire Gauge [Max] | Wire Gauge [Min] | Top Termination | Number of Circuits [custom] | Voltage Rating | Number of Circuits |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Curtis Industries | 105 C | Chassis Panel | UL94 V-0 | Polypropylene (PP) | 23 | 9.53 mm | 0.375 in | 1 | 20 A | Solder Turret Insulated | Flange | 2 Wall (Dual) | Barrier Block | 22 AWG | 12 AWG | Screws with Captive Plate | 23 | 300 VDC | |
Curtis Industries | 105 C | Chassis Panel | UL94 V-0 | Polypropylene (PP) | 14 | 9.53 mm | 0.375 in | 1 | 20 A | Solder Turret Insulated | Flange | 2 Wall (Dual) | Barrier Block | 22 AWG | 12 AWG | Screws with Captive Plate | 300 VDC | 14 | |
 Curtis Industries | 105 C | Chassis Panel | UL94 V-0 | Polypropylene (PP) | 15 | 9.53 mm | 0.375 in | 1 | 20 A | Solder Turret Insulated | Flange | 2 Wall (Dual) | Barrier Block | 22 AWG | 12 AWG | Screws with Captive Plate | 300 VDC | 15 | |
Curtis Industries | 105 C | Chassis Panel | UL94 V-0 | Polypropylene (PP) | 16 | 9.53 mm | 0.375 in | 1 | 20 A | Solder Turret Insulated | Flange | 2 Wall (Dual) | Barrier Block | 22 AWG | 12 AWG | Screws with Captive Plate | 300 VDC | 16 | |
Curtis Industries | 105 C | Chassis Panel | UL94 V-0 | Polypropylene (PP) | 22 | 9.53 mm | 0.375 in | 1 | 20 A | Solder Turret Insulated | Flange | 2 Wall (Dual) | Barrier Block | 22 AWG | 12 AWG | Screws with Captive Plate | 300 VDC | 22 | |
Curtis Industries | 105 C | Chassis Panel | UL94 V-0 | Polypropylene (PP) | 12 | 9.53 mm | 0.375 in | 1 | 20 A | Solder Turret Insulated | Flange | 2 Wall (Dual) | Barrier Block | 22 AWG | 12 AWG | Screws with Captive Plate | 300 VDC | 12 | |
Curtis Industries | 105 C | Chassis Panel | UL94 V-0 | Polypropylene (PP) | 18 | 9.53 mm | 0.375 in | 1 | 20 A | Solder Turret Insulated | Flange | 2 Wall (Dual) | Barrier Block | 22 AWG | 12 AWG | Screws with Captive Plate | 300 VDC | 18 | |
Curtis Industries | 105 C | Chassis Panel | UL94 V-0 | Polypropylene (PP) | 9.53 mm | 0.375 in | 1 | 20 A | Solder Turret Insulated | Flange | 2 Wall (Dual) | Barrier Block | 22 AWG | 12 AWG | Screws with Captive Plate | 300 VDC | 24 |
