Z0409 Series
Manufacturer: STMicroelectronics
Beta
⌘K

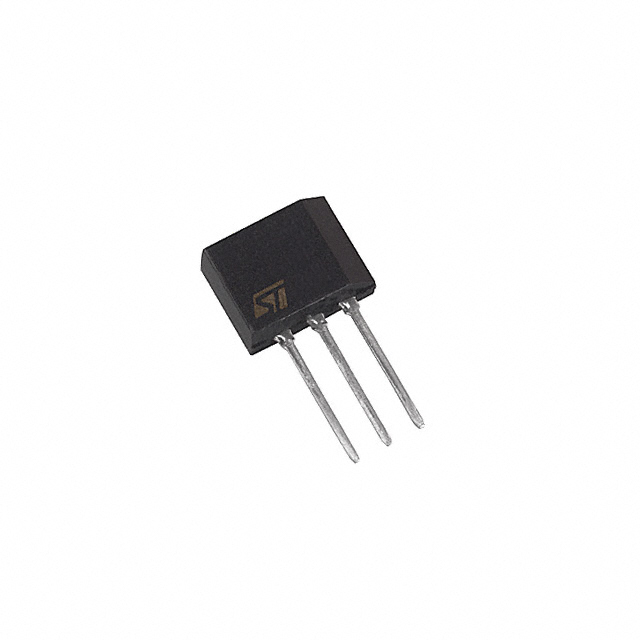

THYRISTOR TRIAC 600V 21A 3-PIN TO-202 TUBE
| Part | Current - Hold (Ih) (Max) [Max] | Voltage - Gate Trigger (Vgt) (Max) | Package / Case | Configuration | Mounting Type | Current - On State (It (RMS)) (Max) [Max] | Supplier Device Package | Triac Type | Current - Gate Trigger (Igt) (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Current - Non Rep. Surge 50, 60Hz (Itsm) | Voltage - Off State |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 STMicroelectronics | 10 mA | 1.3 V | TO-202 No Tab | Single | Through Hole | 4 A | TO-202-3 | Logic - Sensitive Gate | 10 mA | -40 C | 125 °C | 20 A 21 A | 600 V |
 STMicroelectronics | 10 mA | 1.3 V | TO-202 No Tab | Single | Through Hole | 4 A | TO-202-3 | Logic - Sensitive Gate | 10 mA | -40 C | 125 °C | 20 A 21 A | 800 V |
