TEP 150 Series

Catalog

DC/DC CONVERTER 48V 154W

Part	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Number of Outputs	Efficiency	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Applications	Type	Power (Watts)	Voltage - Input (Min) [Min]	Mounting Type	Approval Agency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]
Traco Power TEP 150-2418WI	3.2 A	36 V	1	86 %	48 V	35.7 mm	98 mm	3.86 "	2.07 in	1.41 "	52.6 mm	-40 C	75 ░C	2250 VDC	ITE (Commercial) Railway	Enclosed	154 W	9 V	Chassis Mount	CB cURus
Traco Power TEP 150-4812WI	12.5 A	75 V	1	88 %	12 V	40.6 mm	98 mm	3.86 "	2.07 in	1.6 "	52.6 mm	-40 C	75 ░C	2250 VDC	ITE (Commercial) Railway	Enclosed	150 W	18 V	Chassis Mount	CB cURus
Traco Power TEP 150-7216WI	5.4 A	160 V	1	89 %	28 V	40.6 mm	98 mm	3.86 "	2.07 in	1.6 "	52.6 mm	-40 C	75 ░C	2250 VDC	ITE (Commercial) Railway	Enclosed	151 W	43 V	Chassis Mount	CB cURus
Traco Power TEP 150-7213WI-F	10 A	160 V	1	89 %	15 V	1.6 in	6.32 "				2.07 "	-40 C	75 ░C	2250 VDC	ITE (Commercial) Railway	Enclosed	150 W	43 V	Chassis Mount	CB CE cURus	52.6 mm	40.6 mm	160.5 mm
Traco Power TEP 150-7212WI-F	12.5 A	160 V	1	88 %	12 V	1.6 in	6.32 "				2.07 "	-40 C	75 ░C	2250 VDC	ITE (Commercial) Railway	Enclosed	150 W	43 V	Chassis Mount	CB CE cURus	52.6 mm	40.6 mm	160.5 mm
Traco Power TEP 150-4815WI	6.3 A	75 V	1	89 %	24 V	35.7 mm	98 mm	3.86 "	2.07 in	1.41 "	52.6 mm	-40 C	75 ░C	2250 VDC	ITE (Commercial) Railway	Enclosed	151 W	18 V	Chassis Mount	CB cURus
Traco Power TEP 150-4813WI-F	10 A	75 V	1	89 %	15 V	1.6 in	6.32 "				2.07 "	-40 C	75 ░C	2250 VDC	ITE (Commercial) Railway	Enclosed	150 W	18 V	Chassis Mount	CB CE cURus	52.6 mm	40.6 mm	160.5 mm

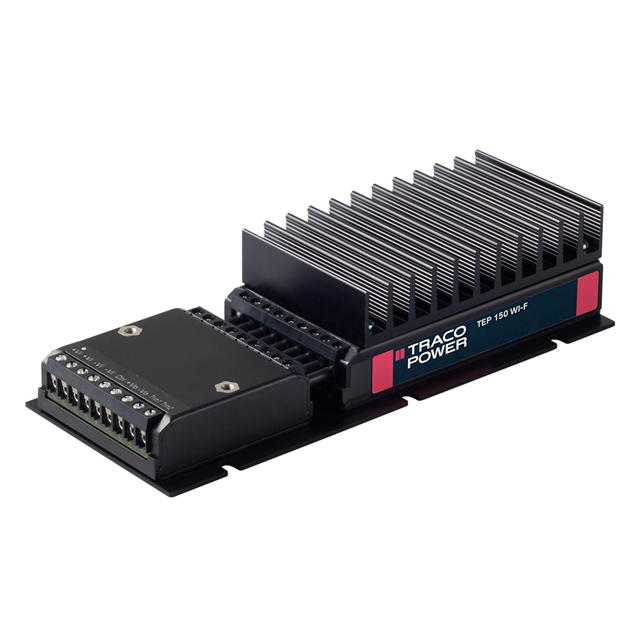

Traco Power TEP 150-2418WI-F	3.2 A	36 V	1	86 %	48 V	1.6 in	6.32 "				2.07 "	-40 C	75 ░C	2250 VDC	ITE (Commercial) Railway	Enclosed	154 W	9 V	Chassis Mount	CB CE cURus	52.6 mm	40.6 mm	160.5 mm
