JR13JK Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

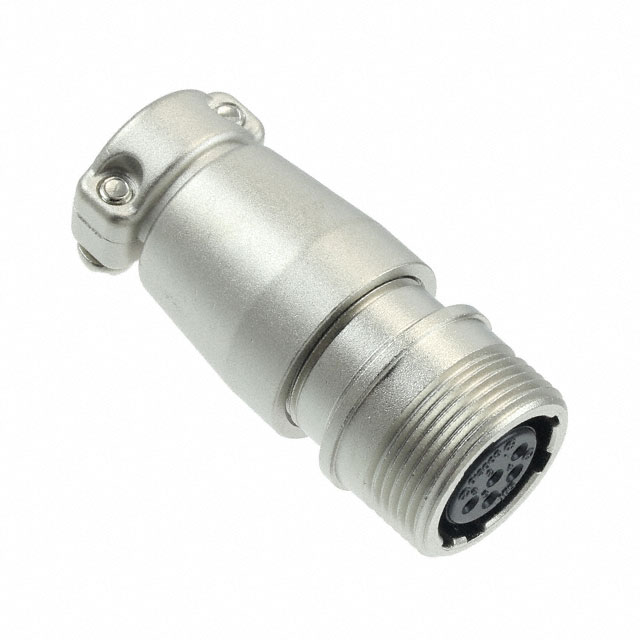

CONN JACK FMALE 5P SOLDER CUP
| Part | Shell Finish | Current Rating (Amps) | Fastening Type | Insert Material | Mounting Type | Orientation | Shell Material | Contact Finish - Mating | Backshell Material, Plating | Primary Material | Voltage Rating | Shielding | Features | Operating Temperature [Max] | Operating Temperature [Min] | Cable Opening | Cable Opening | Contact Material | Material Flammability Rating | Shell Size - Insert [custom] | Connector Type | Color | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Nickel | 5 A | Threaded | Phenol Formaldehyde (PF) | Free Hanging (In-Line) | Keyed | Aluminum Alloy | Silver | Aluminum Alloy Nickel | Metal | 250 VAC 350 VDC | Unshielded | Backshell Cable Clamp | 85 °C | -25 °C | 8.5 mm | 0.335 in | Copper Alloy | UL94 V-0 | 13 | Jack Female Sockets | Silver | 5 | ||
 Hirose Electric Co Ltd | Nickel | 10 A | Threaded | Phenol Formaldehyde (PF) | Free Hanging (In-Line) | Keyed | Aluminum Alloy | Silver | Aluminum Alloy Nickel | Metal | 250 VAC 350 VDC | Unshielded | Backshell Cable Clamp | 85 °C | -25 °C | 8.5 mm | 0.335 in | Copper Alloy | UL94 V-0 | 13 | Jack Female Sockets | Silver | 78.7 µin | 2 µm | |
Hirose Electric Co Ltd | Nickel | 10 A | Threaded | Phenol Formaldehyde (PF) | Free Hanging (In-Line) | Keyed | Aluminum Alloy | Silver | Aluminum Alloy Nickel | Metal | 250 VAC 350 VDC | Unshielded | Backshell Cable Clamp | 85 °C | -25 °C | 8.5 mm | 0.335 in | Copper Alloy | UL94 V-0 | 13 | Jack Male Pins | Silver | 118.1 µin | 3 µm |
