05588 Series

Catalog

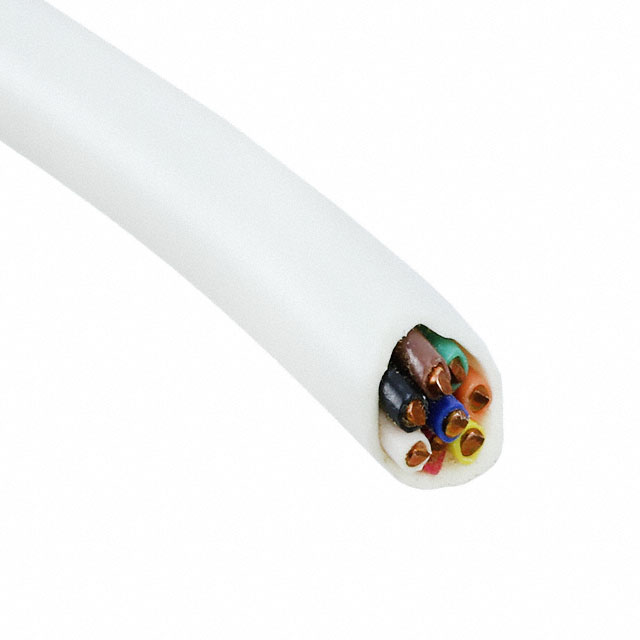

CABLE 8COND 18AWG WHITE

Part	Jacket Color	Number of Conductors [custom]	Wire Gauge	Usage	Length [x]	Length [x]	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Cable Type	Jacket (Insulation) Material	Voltage	Conductor Insulation	Conductor Strand	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Ratings
Prysmian Group 05588.R5.02	White	8	18 AWG	Thermostat	100 ft	30.5 m	Copper Bare	0.203 mm	0.008 in	-20 ░C	60 °C	76.2 m	250 ft	Multi-Conductor	Poly-Vinyl Chloride (PVC)	150 V	Poly-Vinyl Chloride (PVC)	Solid	5.72 mm	0.225 "
Prysmian Group 05588.15.08	Brown	8	18 AWG	Thermostat			Copper Bare	0.203 mm	0.008 in	-20 ░C	60 °C	76.2 m	250 ft	Multi-Conductor	Poly-Vinyl Chloride (PVC)	150 V	Poly-Vinyl Chloride (PVC)	Solid	5.72 mm	0.225 "
Prysmian Group 05588.R5.02	White	8	18 AWG	Thermostat	100 ft	30.5 m	Copper Annealed Bare Copper Bare	0.203 mm	0.008 in	-20 ░C	60 °C 105 ░C	15.24 m 76.2 m	50 ft 250 ft	Multi-Conductor	Poly-Vinyl Chloride (PVC)	150 V	Poly-Vinyl Chloride (PVC)	Solid	5.72 mm	0.225 "	UL Style CL2
Prysmian Group 05588.15.08	Brown	8	18 AWG	Thermostat			Copper Bare	0.203 mm	0.008 in	-20 ░C	60 °C	76.2 m	250 ft	Multi-Conductor	Poly-Vinyl Chloride (PVC)	150 V	Poly-Vinyl Chloride (PVC)	Solid	5.72 mm	0.225 "
