C8028 Series

Catalog

CABLE COAXIAL RG-59 18AWG 1000'

Part	Shield Type	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Group	Usage	Jacket (Insulation) Material	Jacket Color	Length	Length	Wire Gauge	Impedance	Length [x]	Length [x]	Conductor Strand	Shield Material	Dielectric Material	VoP, Velocity of Propagation	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Shield Coverage	Conductor Material	Wire Gauge
Prysmian Group C8028.41.02	Braid	Coaxial	0.238 "	6.05 mm	RG-59	CCTV	Poly-Vinyl Chloride (PVC)	White	25 ft 100 ' 250 ft	7.62 m 30.48 m 76.2 m	18 AWG	71 Ohms	50 ft 1000 ft	15.24 m 304.8 m	Solid

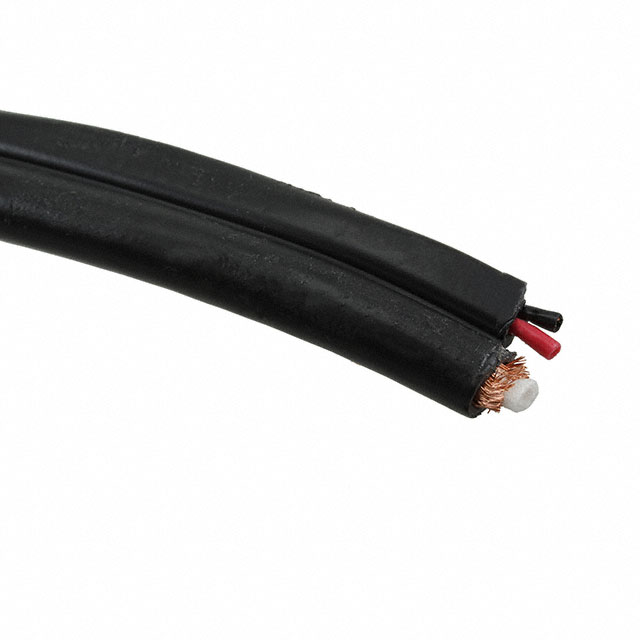

Prysmian Group C8028.38.01	Braid	Coaxial	0.238 "	6.05 mm	RG-59	CCTV	Poly-Vinyl Chloride (PVC)	Black	100 '	30.48 m	18 AWG	71 Ohms	50 ft 500 ft	15.24 m 152.4 m	Solid
Prysmian Group C8028.41.01	Braid	Coaxial	0.238 "	6.05 mm	RG-59	CCTV	Poly-Vinyl Chloride (PVC)	Black			18 AWG	71 Ohms	50 ft 1000 ft	15.24 m 304.8 m	Solid	Copper Bare	Solid Polyethylene (PE)	78	0.144 in	3.66 mm	95 %	Copper Bare
Prysmian Group C8028.41.01	Braid	Coaxial	0.238 "	6.05 mm	RG-59	CCTV	Poly-Vinyl Chloride (PVC)	Black	100 '	30.48 m	18 AWG	71 Ohms	50 ft 1000 ft	15.24 m 304.8 m	Solid
Prysmian Group C8028.38.01	Braid	Coaxial	0.238 "	6.05 mm	RG-59	CCTV	Poly-Vinyl Chloride (PVC)	Black			18 AWG	71 Ohms	50 ft 500 ft	15.24 m 152.4 m	Solid	Copper Bare	Solid Polyethylene (PE)	78	0.144 in	3.66 mm	95 %	Copper Bare
Prysmian Group C8028.41.02	Braid	Coaxial	0.238 "	6.05 mm	RG-59	CCTV	Poly-Vinyl Chloride (PVC)	White	25 ft 100 ' 250 ft	7.62 m 30.48 m 76.2 m	0.82 mm² 18 AWG	71 Ohms	50 ft 1000 ft	15.24 m 304.8 m	Solid	Copper Bare	Solid Polyethylene (PE)	78	0.144 in	3.66 mm	95 %	Copper Bare	18 AWG
