SCS304 Series

Catalog

SILICON CARBIDE SCHOTTKY DIODE, SINGLE, 650 V, 4 A, 11 NC, TO-263AB

Part	Technology	Reverse Recovery Time (trr)	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Speed	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Current - Average Rectified (Io)	Capacitance @ Vr, F	Package / Case	Supplier Device Package

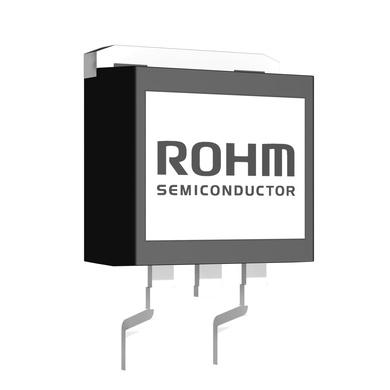

Rohm Semiconductor SCS304AJTLL	SiC (Silicon Carbide) Schottky	0 ns	650 V	Surface Mount	500 mA	20 µA	1.5 V	175 ░C	4 A	200 pF	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB

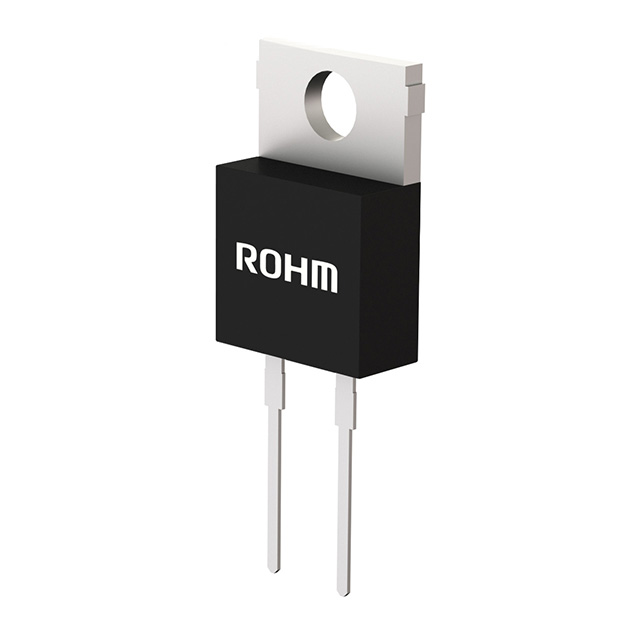

Rohm Semiconductor SCS304AHGC9	SiC (Silicon Carbide) Schottky	0 ns	650 V	Through Hole	500 mA	20 µA	1.5 V	175 ░C	4 A	200 pF	TO-220-2	TO-220ACP
