ADP2390 Series
Manufacturer: Analog Devices
Beta
⌘K
CONV DC-DC 4.5V TO 18V SYNCHRONOUS STEP DOWN SINGLE-OUT 0.6V TO 16.2V 12A MEDICAL 32-PIN LFCSP EP T/R
| Part | Output Type | Topology | Synchronous Rectifier | Supplier Device Package | Voltage - Output (Min/Fixed) | Frequency - Switching [Max] | Frequency - Switching [Min] | Voltage - Output (Max) [Max] | Output Configuration | Voltage - Input (Max) [Max] | Number of Outputs | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input (Min) [Min] | Function | Mounting Type | Current - Output | Regulator Topology | Main Purpose | Voltage - Input [Max] | Voltage - Input [Min] | Supplied Contents | Board Type | Utilized IC / Part | Voltage - Output | Outputs and Type | Outputs and Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

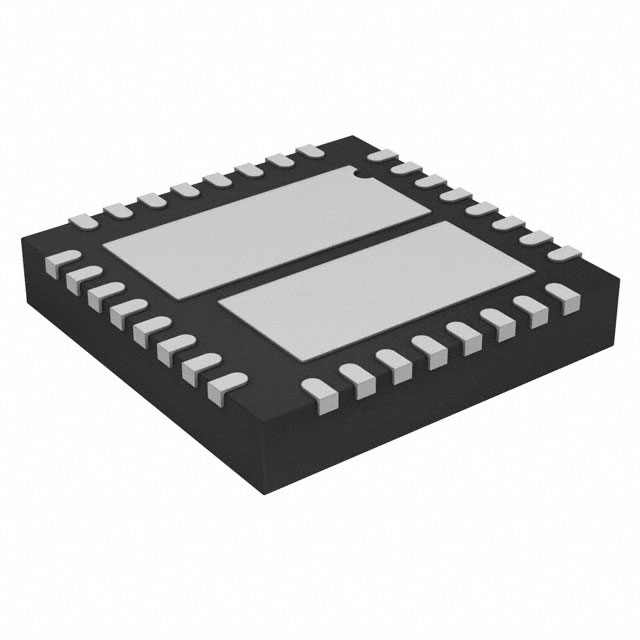

 Analog Devices | Adjustable | Buck | 32-LFCSP-VQ (5x5) | 0.6 V | 2.2 MHz | 200 kHz | 18 V | Positive | 18 V | 1 | 32-VFQFN Exposed Pad CSP | -40 °C | 125 ¯C | 4.5 V | Step-Down | Surface Mount | 12 A | |||||||||||

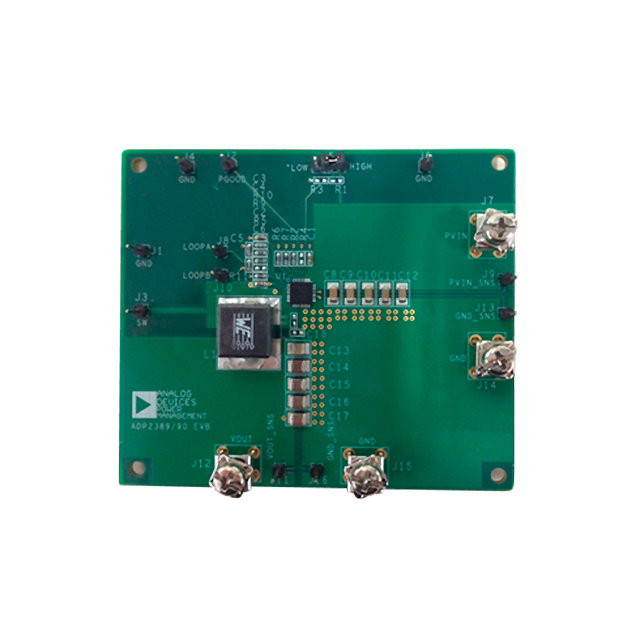

 Analog Devices | 2.2 MHz | 200 kHz | 12 A | Buck | DC/DC Step Down | 18 V | 4.5 V | Board(s) | Fully Populated | ADP2390 | 18 V | Non-Isolated | 1 |
