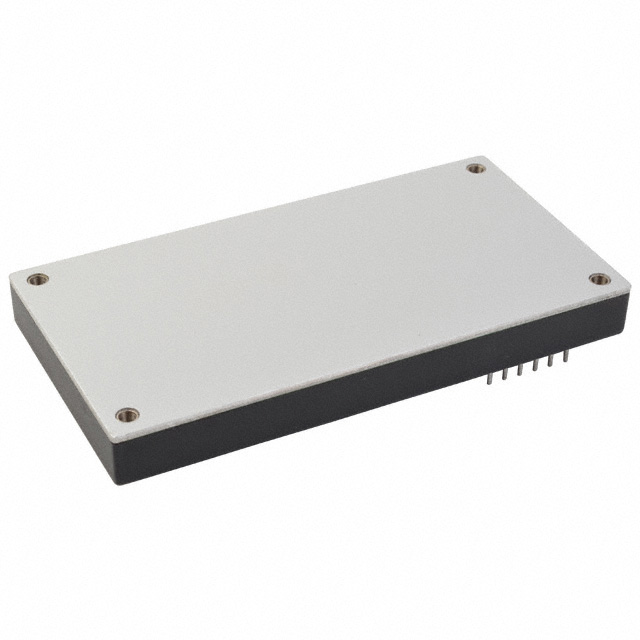

Isolated DC/DC Converters - Through Hole dc-dc isolated, 600 W, 18-36 Vdc input, 28 Vdc, 21.5 A, single output, DIP
Isolated DC/DC Converters - Through Hole dc-dc isolated, 600 W, 18-36 Vdc input, 28 Vdc, 21.5 A, single output, DIP
Isolated DC/DC Converters - Through Hole dc-dc isolated, 600 W, 18-36 Vdc input, 28 Vdc, 21.5 A, single output, DIP
| Part | Applications | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Mounting Type | Current - Output (Max) [Max] | Voltage - Isolation | Efficiency | Voltage - Input (Min) [Min] | Standard Number | Power (Watts) | Number of Outputs | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input (Max) [Max] | Control Features | Type | Voltage - Output 1 | Package / Case | Features | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | ITE (Commercial) | 2.4 in | 4.6 " | 12.7 mm | 0.5 in | 61 mm | 116.8 mm | Through Hole | 25 A | 1.5 kV | 91 % | 18 V | 60950-1 | 600 W | 1 | -40 C | 100 °C | 36 V | Active High Enable | Isolated Module | 24 V | Full Brick | OCP OTP OVP Remote On/Off SCP UVLO | UL |
 CUI Inc. | ITE (Commercial) | 2.4 in | 4.6 " | 12.7 mm | 0.5 in | 61 mm | 116.8 mm | Through Hole | 21.5 A | 1.5 kV | 90 % | 18 V | 60950-1 | 600 W | 1 | -40 C | 100 °C | 36 V | Active High Enable | Isolated Module | 28 V | Full Brick | OCP OTP OVP Remote On/Off SCP UVLO | UL |
CUI Inc. | ITE (Commercial) | 2.4 in | 4.6 " | 12.7 mm | 0.5 in | 61 mm | 116.8 mm | Through Hole | 18.75 A | 1.5 kV | 91 % | 18 V | 60950-1 | 600 W | 1 | -40 C | 100 °C | 36 V | Active High Enable | Isolated Module | 32 V | Full Brick | OCP OTP OVP Remote On/Off SCP UVLO | UL |
CUI Inc. | ITE (Commercial) | 2.4 in | 4.6 " | 12.7 mm | 0.5 in | 61 mm | 116.8 mm | Through Hole | 25 A | 1.5 kV | 91 % | 36 V | 600 W | 1 | -40 C | 100 °C | 75 V | Active High Enable | Isolated Module | 28 V | Full Brick | OCP OTP OVP Remote On/Off SCP UVLO | ||
CUI Inc. | ITE (Commercial) | 2.4 in | 4.6 " | 12.7 mm | 0.5 in | 61 mm | 116.8 mm | Through Hole | 12.5 A | 1.5 kV | 92 % | 36 V | 60950-1 | 600 W | 1 | -40 C | 100 °C | 75 V | Active High Enable | Isolated Module | 48 V | Full Brick | OCP OTP OVP Remote On/Off SCP UVLO | UL |
CUI Inc. | ITE (Commercial) | 2.4 in | 4.6 " | 12.7 mm | 0.5 in | 61 mm | 116.8 mm | Through Hole | 18.75 A | 1.5 kV | 92 % | 36 V | 60950-1 | 600 W | 1 | -40 C | 100 °C | 75 V | Active High Enable | Isolated Module | 32 V | Full Brick | OCP OTP OVP Remote On/Off SCP UVLO | UL |
CUI Inc. | ITE (Commercial) | 2.4 in | 4.6 " | 12.7 mm | 0.5 in | 61 mm | 116.8 mm | Through Hole | 12.5 A | 1.5 kV | 92 % | 18 V | 60950-1 | 600 W | 1 | -40 C | 100 °C | 36 V | Active High Enable | Isolated Module | 48 V | Full Brick | OCP OTP OVP Remote On/Off SCP UVLO | UL |
CUI Inc. | ITE (Commercial) | 2.4 in | 4.6 " | 12.7 mm | 0.5 in | 61 mm | 116.8 mm | Through Hole | 50 A | 1.5 kV | 90 % | 36 V | 60950-1 | 600 W | 1 | -40 C | 100 °C | 75 V | Active High Enable | Isolated Module | 12 V | Full Brick | OCP OTP OVP Remote On/Off SCP UVLO | UL |
