G125-MV2 Series

Catalog

6+6 POS. MALE DIL VERTICAL THROUGHBOARD CONN. NO LATCHES ROHS COMPLIANT: YES

Part	Mated Stacking Heights	Fastening Type	Contact Length - Post	Contact Length - Post	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Shrouding	Connector Type	Pitch - Mating	Pitch - Mating	Number of Rows [custom]	Contact Finish - Mating	Number of Positions	Termination	Contact Type	Material Flammability Rating	Style	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Mounting Type	Insulation Material	Features

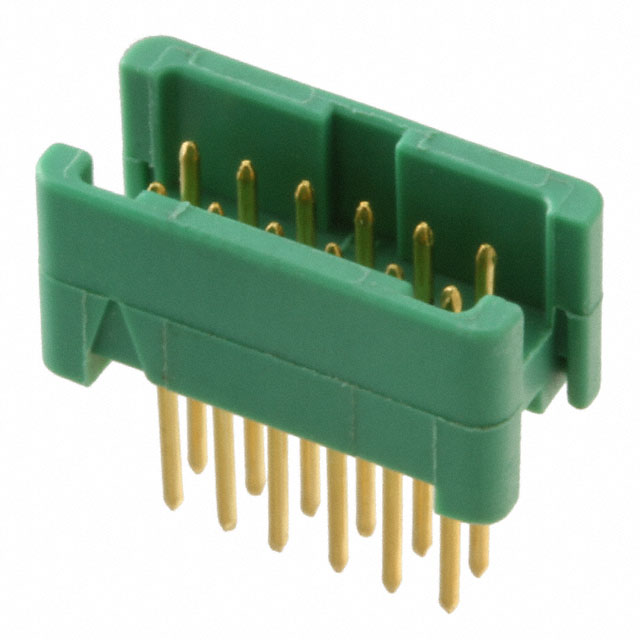

Harwin Inc. G125-MV21205L0P	7.25 mm 7.35 mm 7.7 mm	Push-Pull	4.5 mm	0.177 in	Phosphor Bronze	8 µin	0.203 µm	Green	Shrouded - 4 Wall	Header	0.049 in	1.25 mm	2	Gold	12	Solder	Male Pin	UL94 V-0	Board to Board Cable	2 A	150 °C	-65 ░C	All	Circular	1.25 mm	0.049 in	4.9 mm	0.193 "	Through Hole	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Board Lock Pick and Place

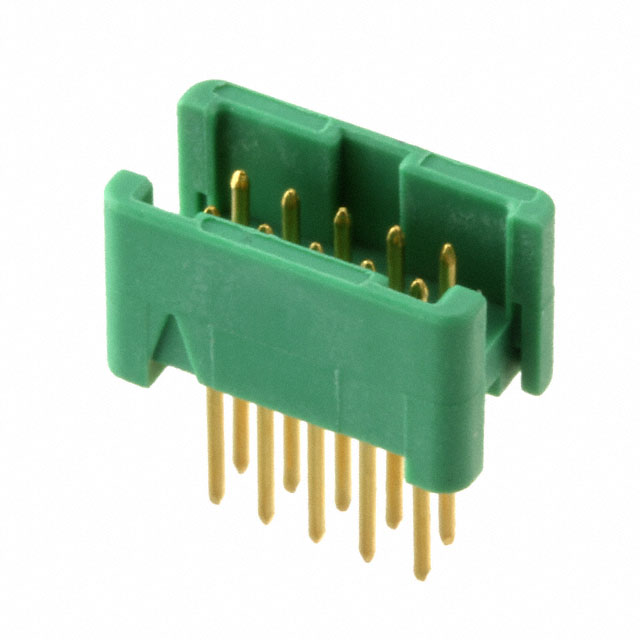

Harwin Inc. G125-MV21005L0P	7.25 mm 7.35 mm 7.7 mm	Push-Pull	4.5 mm	0.177 in	Phosphor Bronze	8 µin	0.203 µm	Green	Shrouded - 4 Wall	Header	0.049 in	1.25 mm	2	Gold	10	Solder	Male Pin	UL94 V-0	Board to Board Cable	2 A	150 °C	-65 ░C	All	Circular	1.25 mm	0.049 in	4.9 mm	0.193 "	Through Hole	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Board Lock Pick and Place
Harwin Inc. G125-MV22605L2P	7.25 mm 7.35 mm 7.7 mm	Latch Lock	4.5 mm	0.177 in	Phosphor Bronze	8 µin	0.203 µm	Green	Shrouded - 4 Wall	Header	0.049 in	1.25 mm	2	Gold	26	Solder	Male Pin	UL94 V-0	Board to Board Cable	2 A	150 °C	-65 ░C	All	Circular	1.25 mm	0.049 in	4.9 mm	0.193 "	Through Hole	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Board Lock Pick and Place
Harwin Inc. G125-MV22605L0R	7.25 mm 7.35 mm 7.7 mm	Push-Pull	4.5 mm	0.177 in	Phosphor Bronze	8 µin	0.203 µm	Green	Shrouded - 4 Wall	Header	0.049 in	1.25 mm	2	Gold	26	Solder	Male Pin	UL94 V-0	Board to Board Cable	2 A	150 °C	-65 ░C	All	Circular	1.25 mm	0.049 in	4.9 mm	0.193 "	Through Hole	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Board Lock Pick and Place

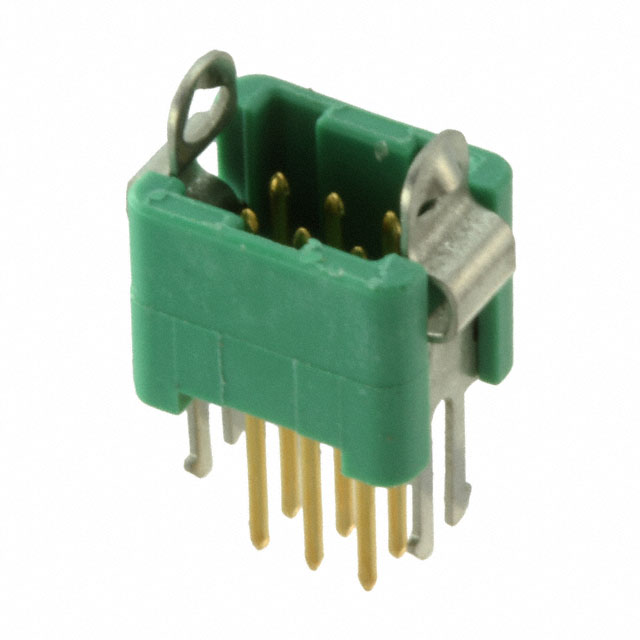

Harwin Inc. G125-MV20605L2P	7.25 mm 7.35 mm 7.7 mm	Latch Lock	4.5 mm	0.177 in	Phosphor Bronze	8 µin	0.203 µm	Green	Shrouded - 4 Wall	Header	0.049 in	1.25 mm	2	Gold	6	Solder	Male Pin	UL94 V-0	Board to Board Cable	2 A	150 °C	-65 ░C	All	Circular	1.25 mm	0.049 in	4.9 mm	0.193 "	Through Hole	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Board Lock Pick and Place
Harwin Inc. G125-MV21005L0R	7.25 mm 7.35 mm 7.7 mm	Push-Pull	4.5 mm	0.177 in	Phosphor Bronze	8 µin	0.203 µm	Green	Shrouded - 4 Wall	Header	0.049 in	1.25 mm	2	Gold	10	Solder	Male Pin	UL94 V-0	Board to Board Cable	2 A	150 °C	-65 ░C	All	Circular	1.25 mm	0.049 in	4.9 mm	0.193 "	Through Hole	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Board Lock Pick and Place

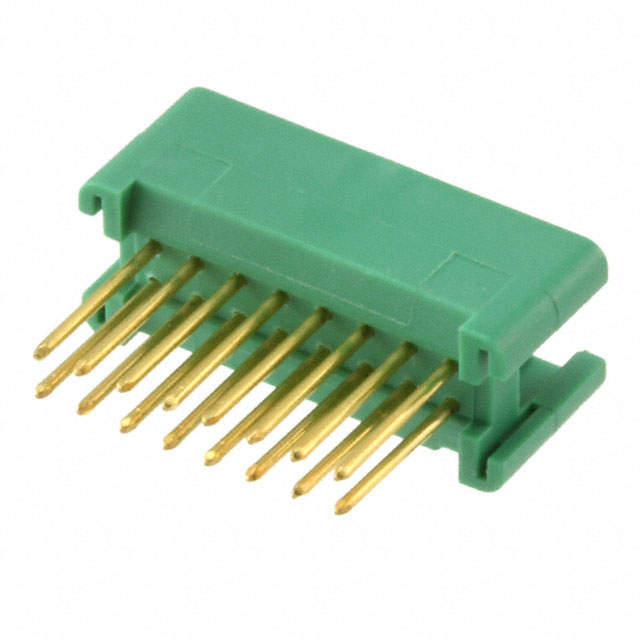

Harwin Inc. G125-MV21605L0P	7.25 mm 7.35 mm 7.7 mm	Push-Pull	4.5 mm	0.177 in	Phosphor Bronze	8 µin	0.203 µm	Green	Shrouded - 4 Wall	Header	0.049 in	1.25 mm	2	Gold	16	Solder	Male Pin	UL94 V-0	Board to Board Cable	2 A	150 °C	-65 ░C	All	Circular	1.25 mm	0.049 in	4.9 mm	0.193 "	Through Hole	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Board Lock Pick and Place

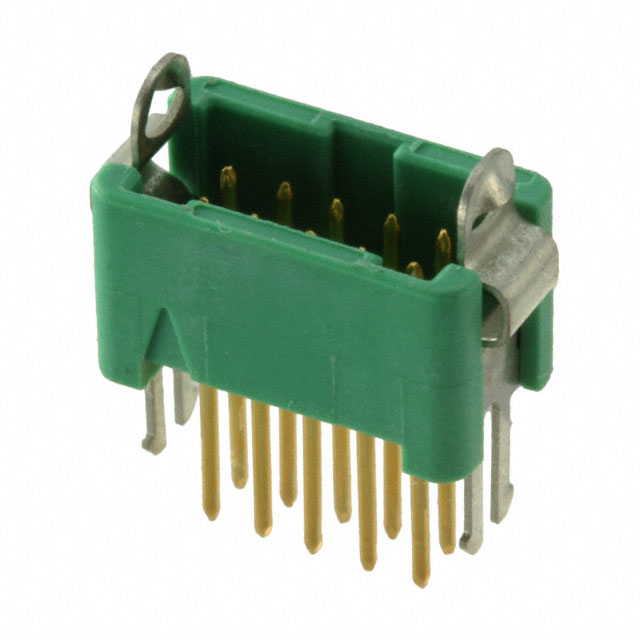

Harwin Inc. G125-MV21005L2P	7.25 mm 7.35 mm 7.7 mm	Latch Lock	4.5 mm	0.177 in	Phosphor Bronze	8 µin	0.203 µm	Green	Shrouded - 4 Wall	Header	0.049 in	1.25 mm	2	Gold	10	Solder	Male Pin	UL94 V-0	Board to Board Cable	2 A	150 °C	-65 ░C	All	Circular	1.25 mm	0.049 in	4.9 mm	0.193 "	Through Hole	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Board Lock Pick and Place

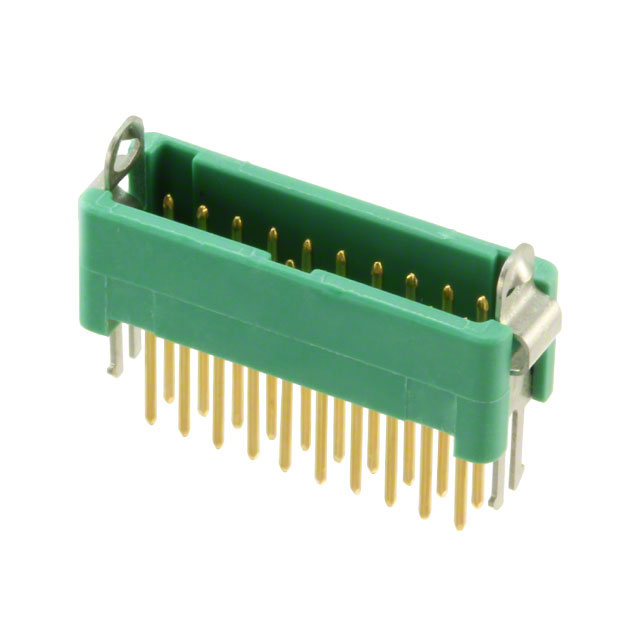

Harwin Inc. G125-MV22005L2P	7.25 mm 7.35 mm 7.7 mm	Latch Lock	4.5 mm	0.177 in	Phosphor Bronze	8 µin	0.203 µm	Green	Shrouded - 4 Wall	Header	0.049 in	1.25 mm	2	Gold	20	Solder	Male Pin	UL94 V-0	Board to Board Cable	2 A	150 °C	-65 ░C	All	Circular	1.25 mm	0.049 in	4.9 mm	0.193 "	Through Hole	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Board Lock Pick and Place

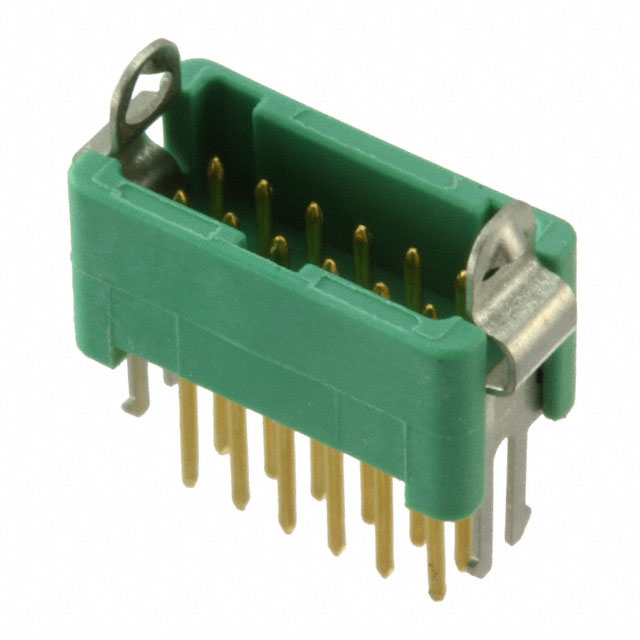

Harwin Inc. G125-MV21205L2P	7.25 mm 7.35 mm 7.7 mm	Latch Lock	4.5 mm	0.177 in	Phosphor Bronze	8 µin	0.203 µm	Green	Shrouded - 4 Wall	Header	0.049 in	1.25 mm	2	Gold	12	Solder	Male Pin	UL94 V-0	Board to Board Cable	2 A	150 °C	-65 ░C	All	Circular	1.25 mm	0.049 in	4.9 mm	0.193 "	Through Hole	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Board Lock Pick and Place
