A3C-20DA Series

Catalog

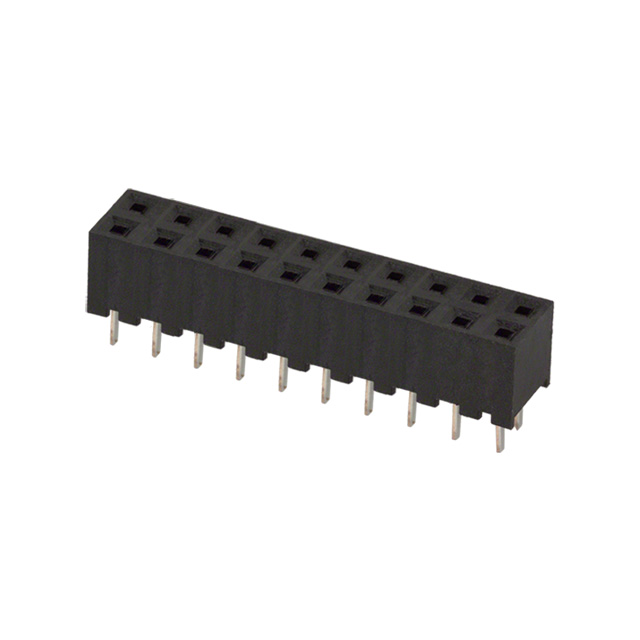

CONN RCPT 20POS 0.079 GOLD PCB

Part	Contact Shape	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Insulation Material	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Connector Type	Number of Rows [custom]	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Termination	Voltage Rating	Fastening Type	Contact Type	Style	Mated Stacking Heights	Number of Positions	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Insulation Color	Contact Length - Post
Hirose Electric Co Ltd A3C-20DA-2DSA(71)	Square	General Purpose Telecommunications	39.4 çin	1 çm	Phosphor Bronze	Polybutylene Terephthalate (PBT)	0.079 "	2 mm	8 µin	0.203 µm	0.165 in	4.2 mm	Receptacle	2	All	0.118 in	3 mm	UL94 V-0	Gold	2 mm	0.079 in	Solder	200 VAC	Push-Pull	Female Socket	Board to Board Cable	5.1 mm 6 mm	20	Through Hole	-55 C	85 °C	Tin	Black
Hirose Electric Co Ltd A3C-20DA-2DSC(71)	Square	General Purpose Telecommunications	39.4 çin	1 çm	Phosphor Bronze	Polybutylene Terephthalate (PBT)	0.079 "	2 mm	8 µin	0.203 µm	0.165 in	4.2 mm	Receptacle	2	All		0.079 in	UL94 V-0	Gold	2 mm	0.079 in	Solder	200 VAC	Push-Pull	Female Socket	Board to Board Cable	5.1 mm 6 mm	20	Through Hole	-55 C	85 °C	Tin	Black	2 mm
