ADIN1300 Series
Robust, Industrial, Low Latency and Low Power 10 Mbps, 100 Mbps, and 1 Gbps Ethernet PHY
Manufacturer: Analog Devices
Catalog
Robust, Industrial, Low Latency and Low Power 10 Mbps, 100 Mbps, and 1 Gbps Ethernet PHY
| Part | Primary Attributes | Function | Type | Supplied Contents | Contents | Package / Case | Number of Drivers/Receivers [custom] | Number of Drivers/Receivers [custom] | Supplier Device Package | Duplex | Data Rate | Voltage - Supply [Min] | Voltage - Supply [Max] | Mounting Type | Protocol | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

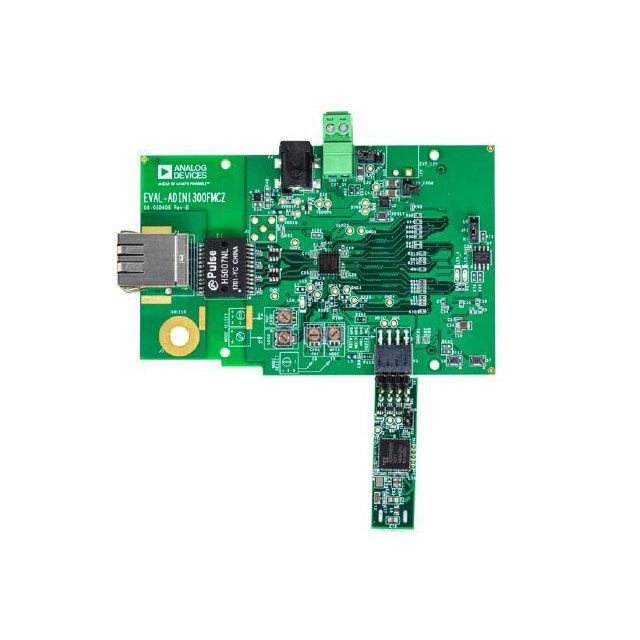

 Analog Devices | Single Chip Hi-Speed USB to 10/100 Ethernet | Ethernet PHY | Interface | Board(s) | Board(s) | ||||||||||||
 Analog Devices | Transceiver | 40-WFQFN Exposed Pad CSP | 4 | 4 | 40-LFCSP-WQ (6x6) | Full Half | 100Mbps 10Mbps 1Gbps | 1.71 V 2.25 V 3.14 V | 1.89 V 2.75 V 3.46 V | Surface Mount | IEEE 802.3 | 85 °C | -40 °C | ||||
 Analog Devices | Transceiver | 40-WFQFN Exposed Pad CSP | 4 | 4 | 40-LFCSP-WQ (6x6) | Full Half | 100Mbps 10Mbps 1Gbps | 1.71 V 2.25 V 3.14 V | 1.89 V 2.75 V 3.46 V | Surface Mount | IEEE 802.3 | 105 °C | -40 °C | ||||
Analog Devices | Transceiver | 40-WFQFN Exposed Pad CSP | 4 | 4 | 40-LFCSP-WQ (6x6) | Full Half | 100Mbps 10Mbps 1Gbps | 1.71 V 2.25 V 3.14 V | 1.89 V 2.75 V 3.46 V | Surface Mount | IEEE 802.3 | 85 °C | -40 °C | ||||
Analog Devices | Transceiver | 40-WFQFN Exposed Pad CSP | 4 | 4 | 40-LFCSP-WQ (6x6) | Full Half | 100Mbps 10Mbps 1Gbps | 1.71 V 2.25 V 3.14 V | 1.89 V 2.75 V 3.46 V | Surface Mount | IEEE 802.3 | 105 °C | -40 °C |
Key Features
• 10BASE-Te/100BASE-TX/1000BASE-T IEEE 802.3 compliant
• MII, RMII, and RGMII MAC interfaces
• 1000BASE-T RGMII latency transmit <68 ns, receive <226 ns
• 100BASE-TX MII latency transmit <52 ns, receive <248 ns
• Programmable RGMII timing delay and drive current
• Supports TSN
• EMC test standardsIEC 61000-4-5 surge (±4 kV)IEC 61000-4-4 electrical fast transient (EFT) (±4 kV)IEC 61000-4-2 ESD (±6 kV contact discharge)IEC 61000-4-6 conducted immunity (10 V)EN55032 radiated and conducted emissions (Class A)
• IEC 61000-4-5 surge (±4 kV)
• IEC 61000-4-4 electrical fast transient (EFT) (±4 kV)
• IEC 61000-4-2 ESD (±6 kV contact discharge)
• IEC 61000-4-6 conducted immunity (10 V)
• EN55032 radiated and conducted emissions (Class A)
• Unmanaged configuration using multilevel pin strapping
• MDIO/MDC management interface and interrupt pin
• EEE in accordance with IEEE 802.3az
• Start of packet detection for IEEE 1588 time stamp support
• Enhanced link detection
• Voltage mode MDI drivers, eliminates termination resistors
• RJ45 MDI flip capability
• Automatic polarity and pair swap correction
• Cable diagnostics (TDR and signal analysis)
• Frame generator and checker, multiple loopback modes
• Configurable LED
• Crystal oscillator frequency/25 MHz clock input frequency (50 MHz for RMII)
• 25 MHz/125 MHz synchronous clock output
• Jumbo frame support up to 16 kB
• Small package and wide temperature range40-lead, 6 mm × 6 mm LFCSPSpecified for −40°C to +105°C ambient operation
• 40-lead, 6 mm × 6 mm LFCSP
• Specified for −40°C to +105°C ambient operation
• Low power consumption330 mW for 1000BASE-T140 mW for 100BASE-TX3.3 V/2.5 V/1.8 V MAC interface VDDIO supplyIntegrated power supply monitoring and POR
• 330 mW for 1000BASE-T
• 140 mW for 100BASE-TX
• 3.3 V/2.5 V/1.8 V MAC interface VDDIO supply
• Integrated power supply monitoring and POR
Description
AI
The ADIN1300 is a low power, single port, Gigabit Ethernet transceiver with low latency and power consumption specifications primarily designed for industrial Ethernet applications.This design integrates an energy efficient Ethernet (EEE) physical layer device (PHY) core with all associated common analog circuitry, input and output clock buffering, management interface and subsystem registers, and MAC interface and control logic to manage the reset and clock control and pin configuration.The ADIN1300 is available in a 6 mm × 6 mm, 40-lead lead frame chip scale package (LFCSP). The device operates with a minimum of 2 power supplies, 0.9 V and 3.3 V, assuming the use of a 3.3 V MAC interface supply. For maximum flexibility in system level design, a separate VDDIO supply enables the management data input/output (MDIO) and MAC interface supply voltages to be configured independently of the other circuitry on the ADIN1300, allowing operation at 1.8 V, 2.5 V, or 3.3 V. At power-up, the ADIN1300 is held in hardware reset until each of the supplies has crossed its minimum rising threshold value. Brown-out protection is provided by monitoring the supplies to detect if one or more supply drops below a minimum falling threshold (see Table 19 on the datasheet), and holding the device in hardware reset until the power supplies return and satisfy the power-on reset (POR) circuit.The MII management interface (also referred to as MDIO interface) provides a 2-wire serial interface between a host processor or MAC (also known as management station (STA)) and the ADIN1300, allowing access to control and status information in the PHY core management registers. The interface is compatible with both the IEEE 802.3 Standard Clause 22 and Clause 45 management frame structures.The ADIN1300 can support cable lengths up to 150 meters at Gigabit speeds and 180 meters when operating at 100 Mbps or 10 Mbps.ApplicationsIndustrial automationProcess controlFactory automationRobotics/motion controlTime sensitive networking (TSN)Building automationTest and measurementIndustrial internet of things (IoT)
