LM4041 Series

Catalog

PRECISION MICROPOWER SHUNT VOLTAGE REFERENCE

Part	Voltage - Output (Min/Fixed)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Tolerance	Temperature Coefficient	Noise - 10Hz to 10kHz	Current - Output	Supplier Device Package	Current - Cathode	Package / Case	Reference Type
STMicroelectronics LM4041CECT-1.2	1.225 V	125 °C	-40 °C	Surface Mount	0.5 %	100 ppm/°C	60 µV	12 mA	SOT-323-5	50 µA	5-TSSOP SC-70-5 SOT-353	Shunt

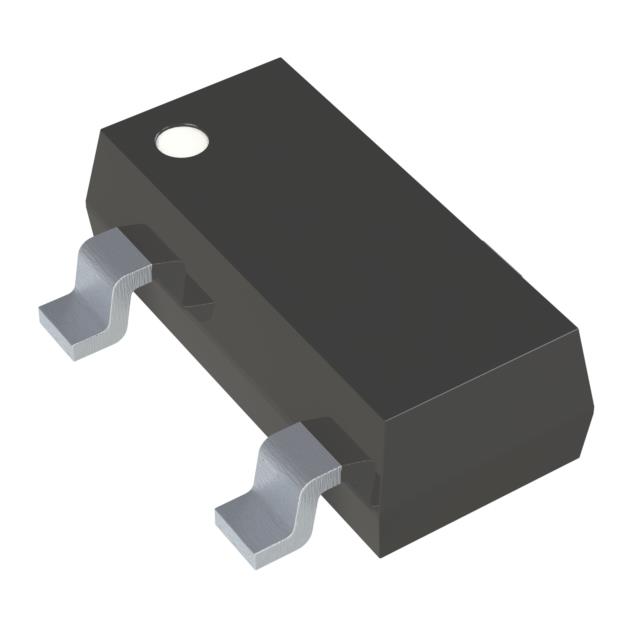

STMicroelectronics LM4041AILT-1.2	1.225 V	85 C	-40 ¯C	Surface Mount	0.1 %	100 ppm/°C	60 µV	12 mA	SOT-23-3	50 µA	SC-59 SOT-23-3 TO-236-3	Shunt
STMicroelectronics LM4041CICT-1.2	1.225 V	85 C	-40 ¯C	Surface Mount	0.5 %	100 ppm/°C	60 µV	12 mA	SOT-323-5	50 µA	5-TSSOP SC-70-5 SOT-353	Shunt
STMicroelectronics LM4041DICT-1.2	1.225 V	85 C	-40 ¯C	Surface Mount	1 %	100 ppm/°C	60 µV	12 mA	SOT-323-5	50 µA	5-TSSOP SC-70-5 SOT-353	Shunt
STMicroelectronics LM4041BECT-1.2	1.225 V	125 °C	-40 °C	Surface Mount	0.2 %	100 ppm/°C	60 µV	12 mA	SOT-323-5	50 µA	5-TSSOP SC-70-5 SOT-353	Shunt
STMicroelectronics LM4041CILT-1.2	1.225 V	85 C	-40 ¯C	Surface Mount	0.5 %	100 ppm/°C	60 µV	12 mA	SOT-23-3	50 µA	SC-59 SOT-23-3 TO-236-3	Shunt
STMicroelectronics LM4041AECT-1.2	1.225 V	125 °C	-40 °C	Surface Mount	0.1 %	100 ppm/°C	60 µV	12 mA	SOT-323-5	50 µA	5-TSSOP SC-70-5 SOT-353	Shunt
STMicroelectronics LM4041DELT-1.2	1.225 V	125 °C	-40 °C	Surface Mount	1 %	100 ppm/°C	60 µV	12 mA	SOT-23-3	50 µA	SC-59 SOT-23-3 TO-236-3	Shunt
STMicroelectronics LM4041BELT-1.2	1.225 V	125 °C	-40 °C	Surface Mount	0.2 %	100 ppm/°C	60 µV	12 mA	SOT-23-3	50 µA	SC-59 SOT-23-3 TO-236-3	Shunt
STMicroelectronics LM4041AICT-1.2	1.225 V	85 C	-40 ¯C	Surface Mount	0.1 %	100 ppm/°C	60 µV	12 mA	SOT-323-5	50 µA	5-TSSOP SC-70-5 SOT-353	Shunt
