SPC565 Series

Catalog

NXP 32-BIT MCU, POWER ARCH CORE, 1MB FLASH, 40MHZ, -40/+125DEGC, AUTOMOTIVE GRADE, PBGA 388/ TRAY ROHS COMPLIANT: YES

Part	Core Size (Bit Width)	Core Configuration	Program Memory Size	Program Memory Width	Program Memory Depth	Number of I/O	Package Width	Package Name	Package Length	Speed	Oscillator Type	Package / Case	Program Memory Type	Operating Temperature (Max)	Operating Temperature (Min)	Connectivity	Core Processor	RAM Size Depth	RAM Size Width	Peripherals	Mounting Type	A/D Resolution (bits)	A/D Channels	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum

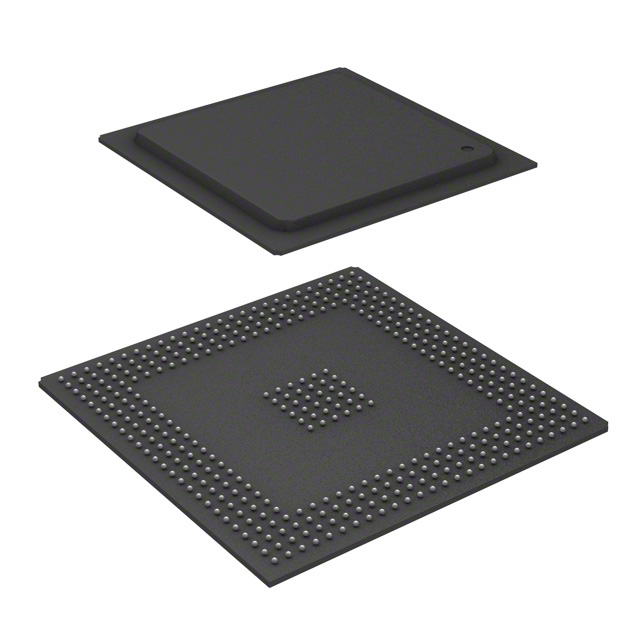

NXP USA Inc. SPC565MZP56D	32 Bit	Single-Core	1 MB	8 bit	1 M	56	27 mm	388-PBGA	27 mm	56 MHz	External	388-BBGA	FLASH	125 °C	-40 °C	CANbus EBI EMI SCI SPI UART USART	PowerPC	36 K	8 bit	POR PWM WDT	Surface Mount	10 bit	40 count	2.5 V	2.7 V
NXP USA Inc. SPC565MZP56DR2	32 Bit	Single-Core	1 MB	8 bit	1 M	56	27 mm	388-PBGA	27 mm	56 MHz	External	388-BBGA	FLASH	125 °C	-40 °C	CANbus EBI EMI SCI SPI UART USART	PowerPC	36 K	8 bit	POR PWM WDT	Surface Mount	10 bit	40 count	2.5 V	2.7 V
