116-87 Series
Manufacturer: Preci-Dip
Beta
⌘K

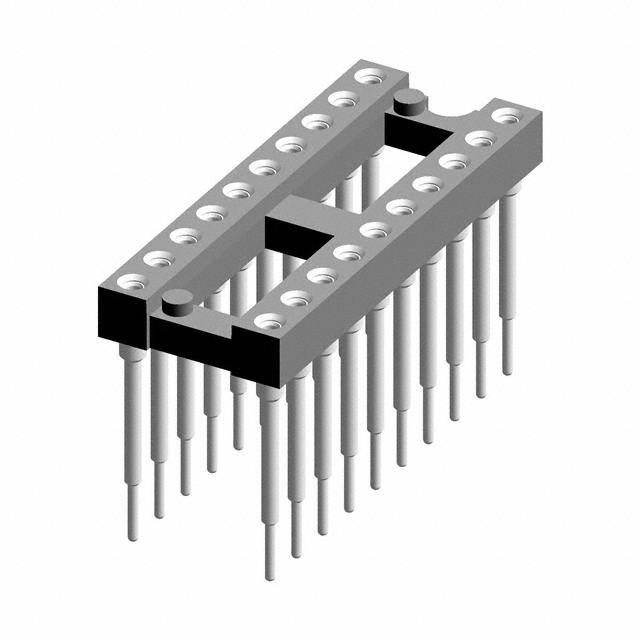

CONN IC DIP SOCKET 20POS GOLD
| Part | Termination Post Length | Termination Post Length | Current Rating (Amps) | Material Flammability Rating | Contact Resistance | Contact Material - Mating | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Features | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Contact Finish - Mating | Pitch - Post | Pitch - Post | Housing Material | Contact Finish Thickness - Mating | Mounting Type | Contact Material - Post [custom] | Type | Type | Type | Number of Positions or Pins (Grid) | Number of Positions or Pins (Grid) [y] | Number of Positions or Pins (Grid) [x] | Type [custom] | Type [custom] | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | 0.125 in | 3.18 mm | 1 A | UL94 V-0 | 10 mOhm | Beryllium Copper | 0.1 " | 2.54 mm | Tin | Elevated Open Frame | -55 C | 125 °C | Solder | Gold | 0.1 in | 2.54 mm | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Flash | Through Hole | Brass | 7.62 mm | 0.3 in | DIP | 20 | ||||||

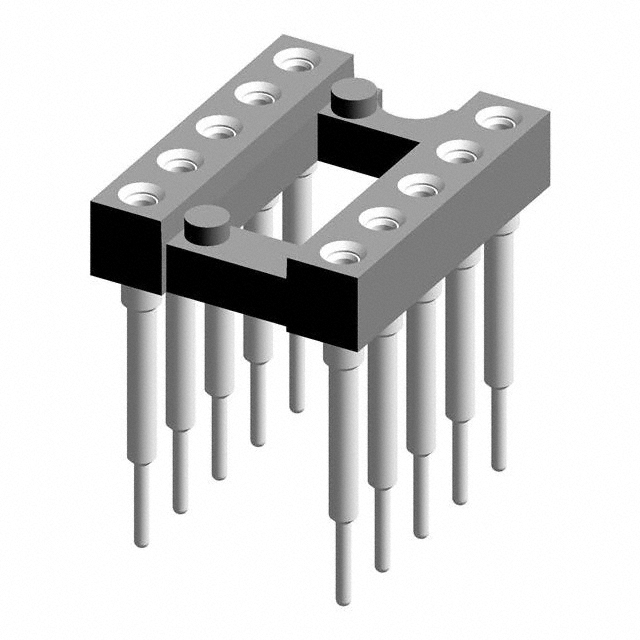

 Preci-Dip | 0.125 in | 3.18 mm | 1 A | UL94 V-0 | 10 mOhm | Beryllium Copper | 0.1 " | 2.54 mm | Tin | Elevated Open Frame | -55 C | 125 °C | Solder | Gold | 0.1 in | 2.54 mm | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Flash | Through Hole | Brass | 7.62 mm | 0.3 in | DIP | 10 | 5 | 2 | ||||
 Preci-Dip | 0.125 in | 3.18 mm | 1 A | UL94 V-0 | 10 mOhm | Beryllium Copper | 0.1 " | 2.54 mm | Tin | Elevated Open Frame | -55 C | 125 °C | Solder | Gold | 0.1 in | 2.54 mm | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Flash | Through Hole | Brass | DIP | 15.24 mm | 0.6 in | |||||||

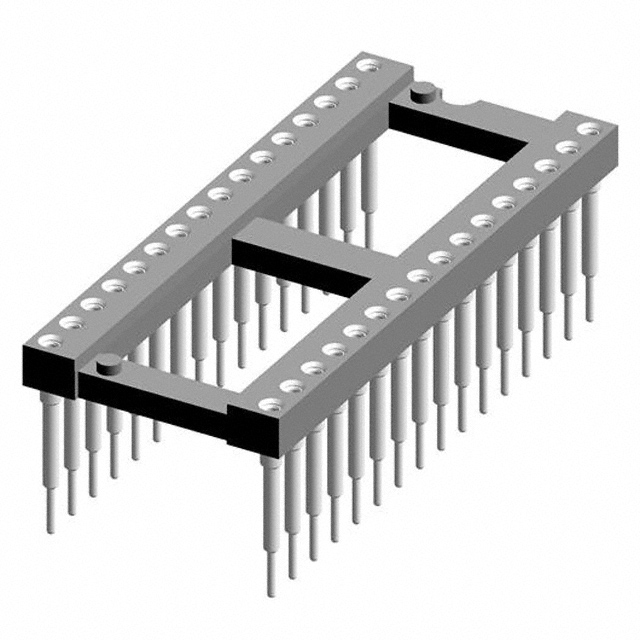

 Preci-Dip | 0.125 in | 3.18 mm | 1 A | UL94 V-0 | 10 mOhm | Beryllium Copper | 0.1 " | 2.54 mm | Tin | Elevated Open Frame | -55 C | 125 °C | Solder | Gold | 0.1 in | 2.54 mm | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Flash | Through Hole | Brass | 0.4 in | DIP | 32 | |||||||

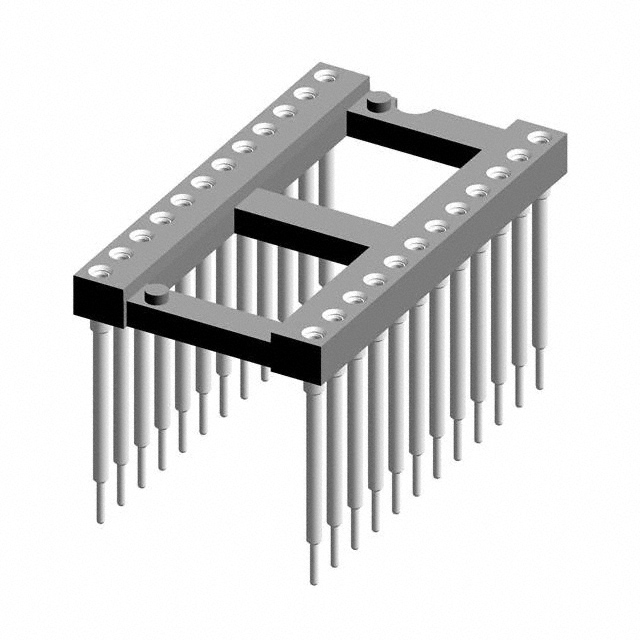

 Preci-Dip | 0.125 in | 3.18 mm | 1 A | UL94 V-0 | 10 mOhm | Beryllium Copper | 0.1 " | 2.54 mm | Tin | Elevated Open Frame | -55 C | 125 °C | Solder | Gold | 0.1 in | 2.54 mm | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Flash | Through Hole | Brass | DIP | 24 | 2 | 12 | 15.24 mm | 0.6 in | ||||

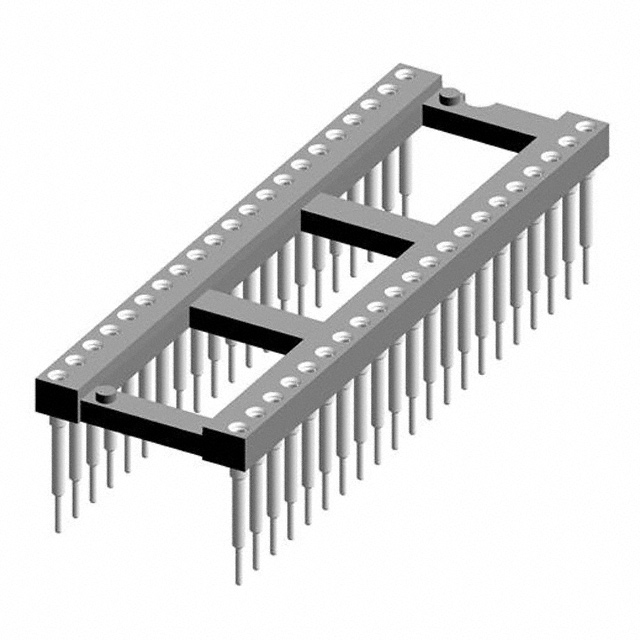

 Preci-Dip | 0.125 in | 3.18 mm | 1 A | UL94 V-0 | 10 mOhm | Beryllium Copper | 0.1 " | 2.54 mm | Tin | Elevated Open Frame | -55 C | 125 °C | Solder | Gold | 0.1 in | 2.54 mm | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Flash | Through Hole | Brass | DIP | 42 | 15.24 mm | 0.6 in | ||||||

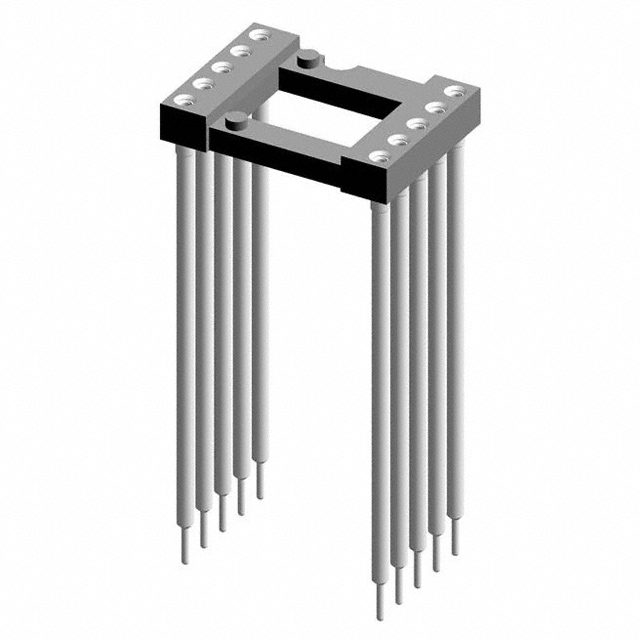

 Preci-Dip | 0.125 in | 3.18 mm | 1 A | UL94 V-0 | 10 mOhm | Beryllium Copper | 0.1 " | 2.54 mm | Tin | Elevated Open Frame | -55 C | 125 °C | Solder | Gold | 0.1 in | 2.54 mm | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Flash | Through Hole | Brass | DIP | 10 | 5 | 2 | 15.24 mm | 0.6 in | ||||

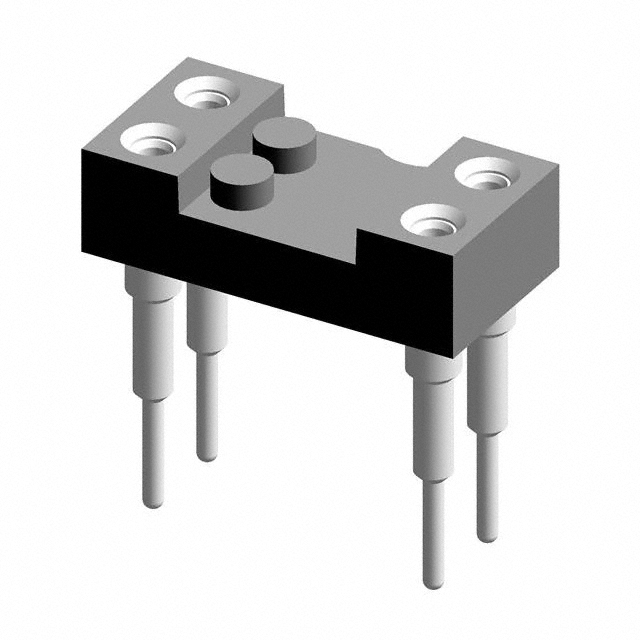

 Preci-Dip | 0.125 in | 3.18 mm | 1 A | UL94 V-0 | 10 mOhm | Beryllium Copper | 0.1 " | 2.54 mm | Tin | Elevated Open Frame | -55 C | 125 °C | Solder | Gold | 0.1 in | 2.54 mm | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Flash | Through Hole | Brass | 7.62 mm | 0.3 in | DIP | 4 pins | 2 x 2 | |||||
 Preci-Dip | 0.125 in | 3.18 mm | 1 A | UL94 V-0 | 10 mOhm | Beryllium Copper | 0.1 " | 2.54 mm | Tin | Elevated Open Frame | -55 C | 125 °C | Solder | Gold | 0.1 in | 2.54 mm | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Flash | Through Hole | Brass | 7.62 mm | 0.3 in | DIP | 18 | ||||||
 Preci-Dip | 0.125 in | 3.18 mm | 1 A | UL94 V-0 | 10 mOhm | Beryllium Copper | 0.1 " | 2.54 mm | Tin | Elevated Open Frame | -55 C | 125 °C | Solder | Gold | 0.1 in | 2.54 mm | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Flash | Through Hole | Brass | DIP | 2 | 24 | 15.24 mm | 0.6 in | 48 |
