THD 15 Series

Catalog

DC DC CONVERTER 5.1V 15W

Part	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Voltage - Input (Min) [Min]	Features	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Package / Case	Efficiency	Voltage - Input (Max) [Max]	Number of Outputs	Mounting Type	Type	Current - Output (Max) [Max]	Applications	Current - Output (Max)	Voltage - Output 2	Current - Output (Max) [Max]

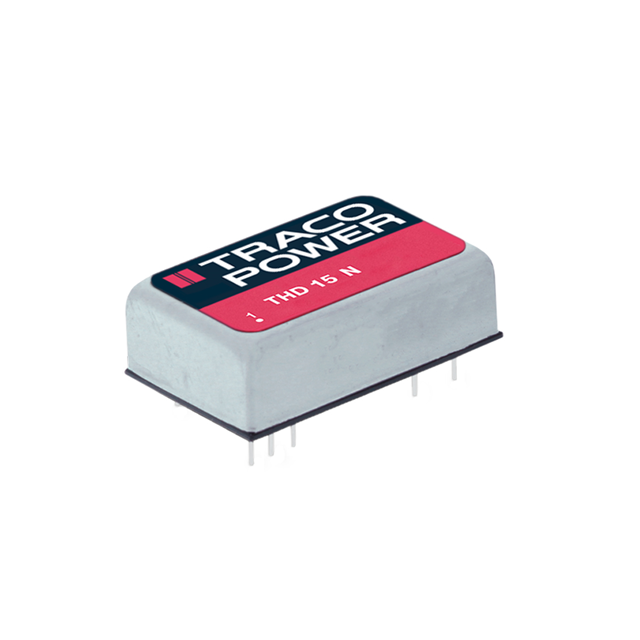

Traco Power THD 15-1211N	1.5 kV	-40 °C	85 °C	5.1 V	9 V	OVP Remote On/Off SCP	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	15 W	24-DIP Module 9 Leads	90 %	18 V	1	Through Hole	Isolated Module	3 A	ITE (Commercial)
Traco Power THD 15-2423N	1.5 kV	-40 °C	85 °C	15 V	18 V	OVP Remote On/Off SCP	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	15 W	24-DIP Module 9 Leads	90 %	36 V	2	Through Hole	Isolated Module		ITE (Commercial)	500 mA	-15 V
Traco Power THD 15-1212N	1.5 kV	-40 °C	85 °C	12 V	9 V	OVP Remote On/Off SCP	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	15 W	24-DIP Module 9 Leads	90 %	18 V	1	Through Hole	Isolated Module	1.25 A	ITE (Commercial)
Traco Power THD 15-2421N	1.5 kV	-40 °C	85 °C	5 V	18 V	OVP Remote On/Off SCP	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	15 W	24-DIP Module 9 Leads	87 %	36 V	2	Through Hole	Isolated Module		ITE (Commercial)	1.5 A	-5 V
Traco Power THD 15-1222N	1.5 kV	-40 °C	85 °C	12 V	9 V	OVP Remote On/Off SCP	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	15 W	24-DIP Module 9 Leads	90 %	18 V	2	Through Hole	Isolated Module	625 mA	ITE (Commercial)		-12 V	625 mA
Traco Power THD 15-1221N	1.5 kV	-40 °C	85 °C	5 V	9 V	OVP Remote On/Off SCP	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	15 W	24-DIP Module 9 Leads	86 %	18 V	2	Through Hole	Isolated Module		ITE (Commercial)	1.5 A	-5 V
Traco Power THD 15-2411N	1.5 kV	-40 °C	85 °C	5.1 V	18 V	OVP Remote On/Off SCP	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	15 W	24-DIP Module 9 Leads	90 %	36 V	1	Through Hole	Isolated Module	3 A	ITE (Commercial)

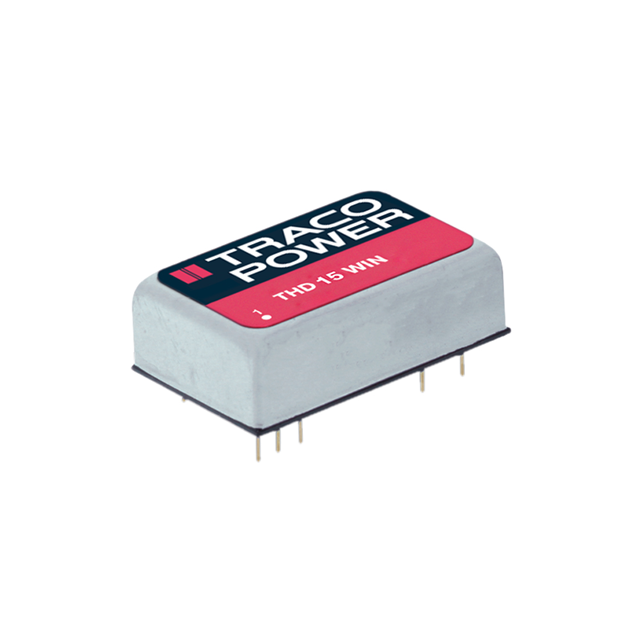

Traco Power THD 15-2411WIN	1.5 kV	-40 °C	85 °C	5.1 V	9 V	OVP Remote On/Off SCP	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	15 W	24-DIP Module 8 Leads	90 %	36 V	1	Through Hole	Isolated Module	3 A	ITE (Commercial)
Traco Power THD 15-1210N	1.5 kV	-40 °C	85 °C	3.3 V	9 V	OVP Remote On/Off SCP	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	13 W	24-DIP Module 9 Leads	87 %	18 V	1	Through Hole	Isolated Module	4 A	ITE (Commercial)
