PXP400 Series
Manufacturer: Freescale Semiconductor - NXP
Beta
⌘K
MOSFET P-CH 100V 1.4A MLPAK33
| Part | Drive Voltage (Max Rds On, Min Rds On) | Package / Case | Current - Continuous Drain (Id) @ 25°C | Mounting Type | Rds On (Max) @ Id, Vgs | Vgs (Max) | FET Type | Drain to Source Voltage (Vdss) | Operating Temperature [Min] | Operating Temperature [Max] | Vgs(th) (Max) @ Id | Input Capacitance (Ciss) (Max) @ Vds | Gate Charge (Qg) (Max) @ Vgs | Supplier Device Package | Technology | Power Dissipation (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

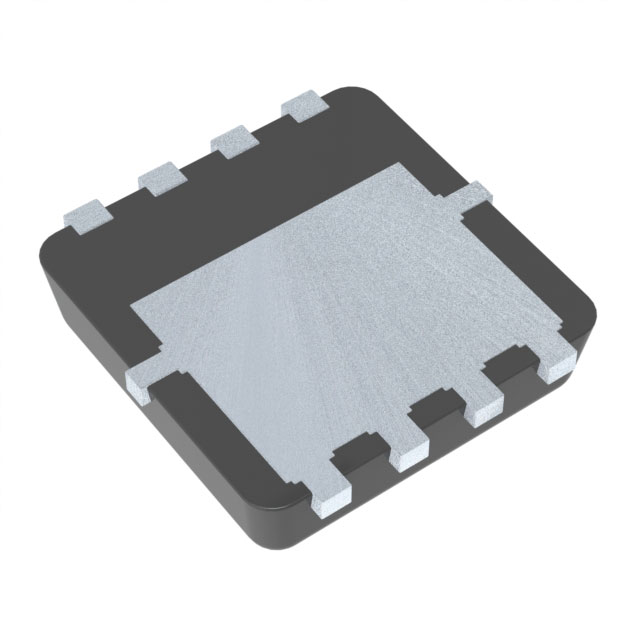

 Freescale Semiconductor - NXP | 6 V 10 V | 8-PowerVDFN | 1.4 A 3.5 A | Surface Mount | 400 mOhm | 20 V | P-Channel | 100 V | -55 °C | 150 °C | 4 V | 544 pF | 15.2 nC | MLPAK33 | MOSFET (Metal Oxide) | 1.7 W 10.4 W |
